Rear lift installation – High Lifter Lift Kit for Ranger IRS - Signature Series 3 User Manual
Page 5

5

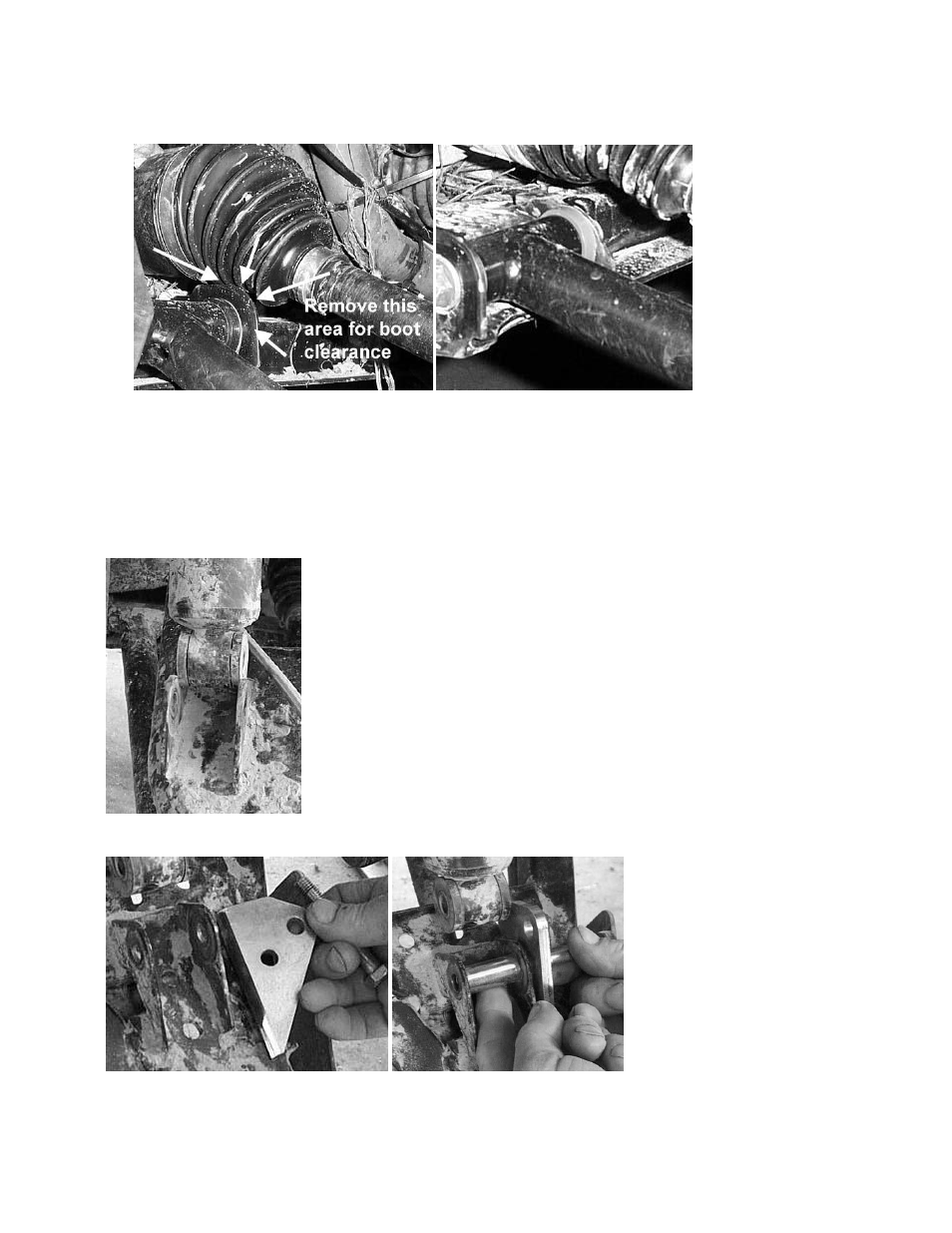

8) You will need to remove some material from the area where lower control arm mounts to the frame.
You will only need to remove a small area nearest the axle boot.
NOTE: You will damage the boots if you do not remove this material!!!
Rear Lift Installation
1) Place ATV transmission in park. Place jack under center of ATV front end and lift until rear wheels
clear the ground. Be careful to support ATV properly so that it is securely supported so that A-arms
and shocks can droop to full extension.
2) Remove the rear wheels.
3) Disconnect the lower part of the rear shock from the control arm.
4) Place the Right lift bracket next to the shock mount. Place the Large spacer between the shock mount
tabs. Connect the lift bracket to the frame using the 10mm x 70mm hex bolts and 10mm lock nuts.
