High Lifter Lift Kit for Kawasaki Mule 3020 - Manual (Page 6)

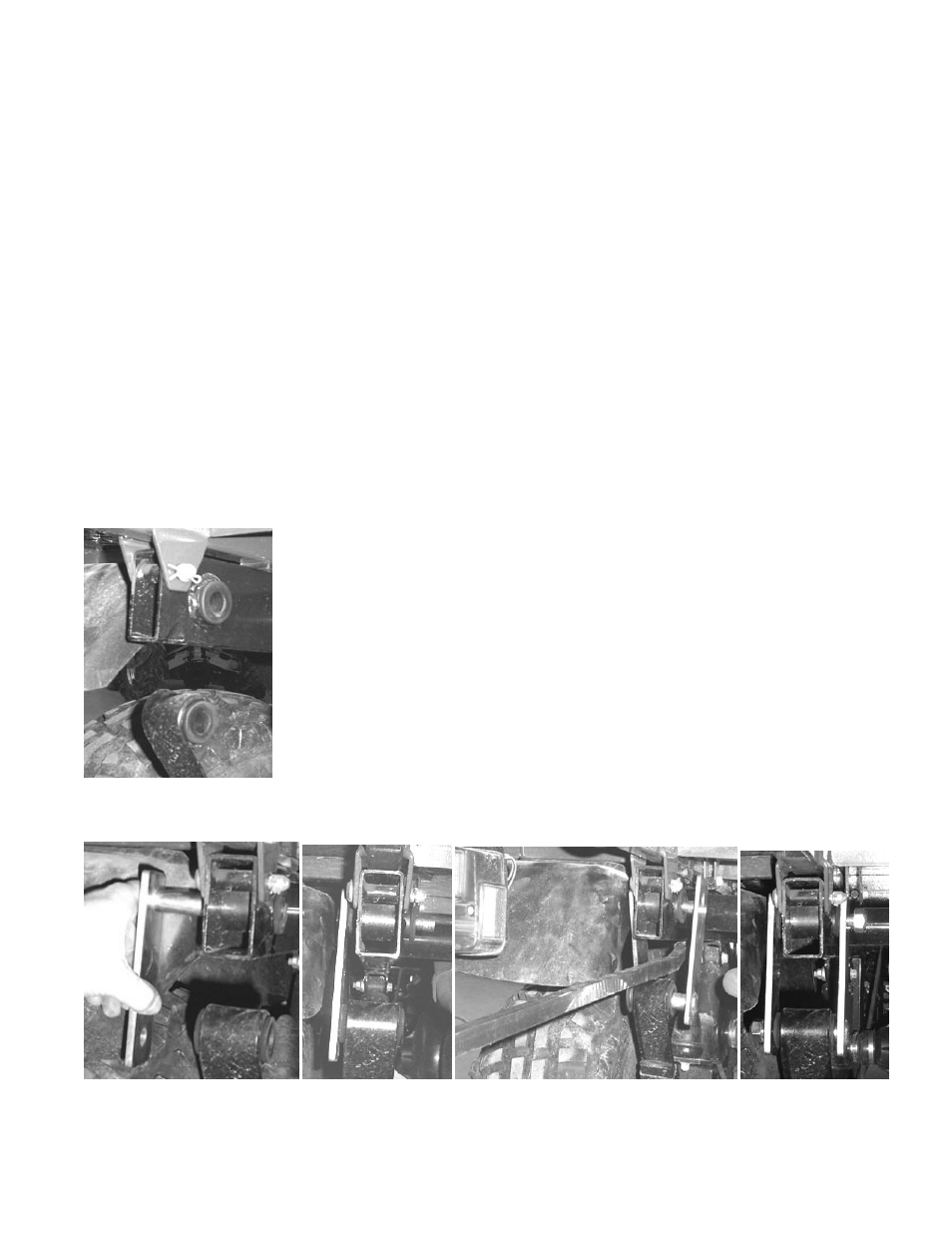

Rear Lift Installation
1. Ensuring that the parking brake is set, place jack under the rear differential of the Mule and lift until
rear wheels clear the ground. Be careful to support Mule properly so that it is secure, and chock the
front wheels.
2. Remove the top of the rear shock only. This will make it easier to remove and install the rear leaf spring
shackles
3. Remove the rear leaf spring shackles.
Note: You may need a large pry bar to help disassemble and reassemble the rear shackles.
4. Install the new shackles on the Mule, using the pry bar to help align the shackles and the leaf springs.
Tip: Put a little soap on the shackle studs to help them slid into the rubber bushings better.
5. Once the shackles are installed secure with the nuts provided.
6
