6. Install the WHITE colored primary spring. Make sure the spring fits flat into the clutch at both ends. Install cover
onto clutch being sure to align the “X” marks as noted when you disassembled it. Make sure the cover lines up
properly on the clutch towers so the two raised areas on the cover seat properly. Damage can result if this is not
done properly. Tighten the six outside cover bolts evenly so the cover aligns and seats properly into the clutch
towers to prevent damage. With the primary clutch installed on the crankshaft install the center retaining bolt and
torque to 45-47 ft/lbs. After riding your machine, if you would like LOWER engagement than where this kit engages
you can install the ORANGE colored spring. This spring will LOWER your engagement 3-400 rpms. If your kit only
has one primary spring you can order this optional spring through EPI. NOTE: Due to small variances in the

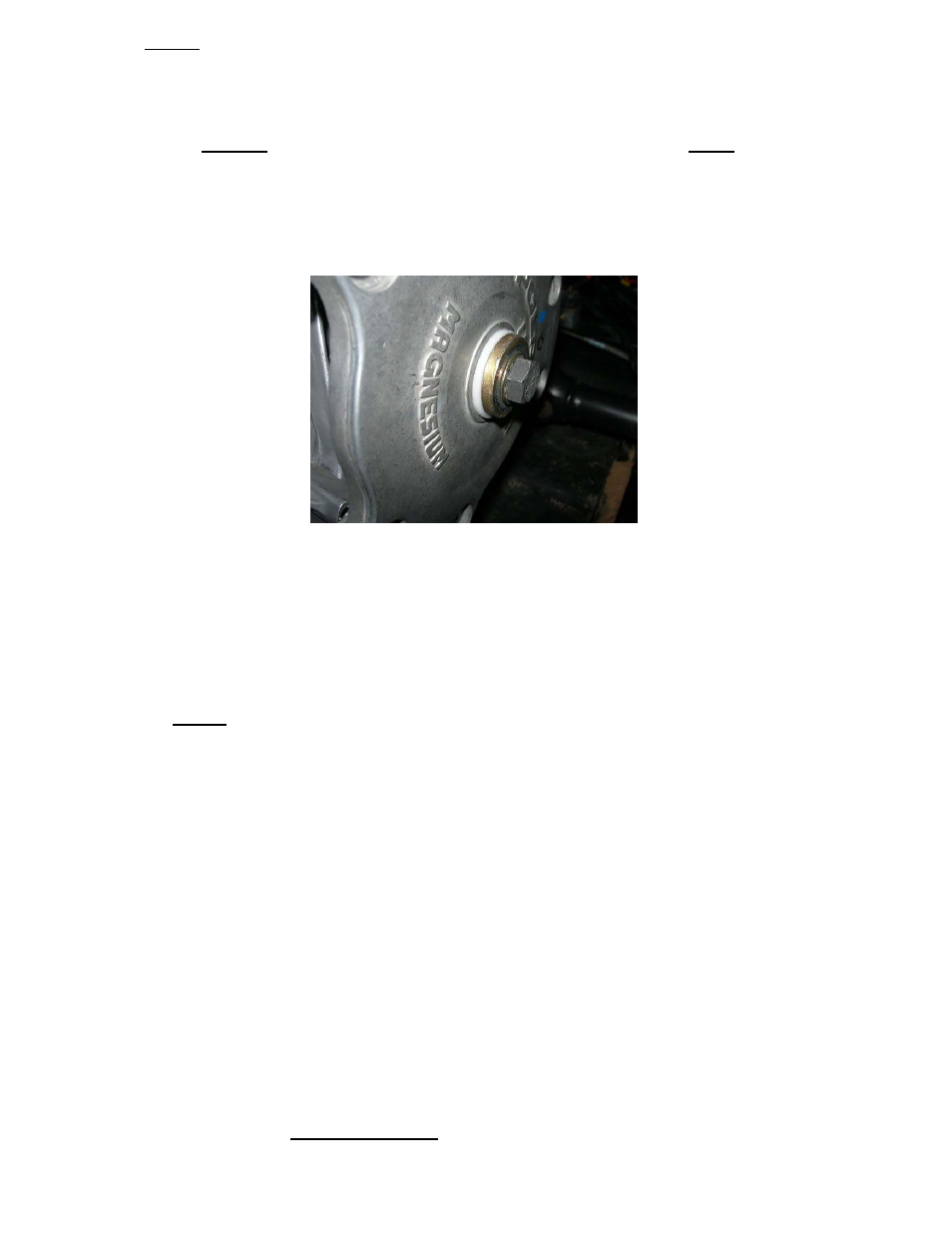

clutches on some machines, some machines require final adjustments for smooth shifter operation. EPI includes a
white plastic spacer that may need to be installed between the drive clutch retaining bolt large washer and the face
of the drive clutch – see the photo below for placement. Some machines require this spacer and others do not. If
you experience difficult shifting when you move the gear selector, try installing this spacer. Even further adjustment
may be needed on a few machines – if this is the case, try removing one of the two metal shims behind the driven
clutch.
7. Remove the secondary (clutch on driver’s side) clutch by removing the center clutch bolt and pulling towards you.
The clutch should slide off the splined shaft. If the clutch sticks on the shaft spray some penetrating fluid on the
shaft to help free it. If it still doesn’t come off, you will need to order a secondary clutch puller (EPI part #SCP-1).
When the clutch does come off pay attention to the shims behind the clutch on the shaft. These shims effect the
clutch alignment, if they slide off the shaft be sure to put them back on.
8. Place the clutch face down so the four torx bolts / helix are facing up. Remove the four torx bolts. Pull up on the
helix. Note the position of the two rollers. Using the compression tool (EPI part # CCT510) carefully compress
the spring until there is slight pressure on the spring retainer allowing you to remove snap ring. Slowly loosen the
top nut on threaded rod allowing the spring to slowly expand. Remove the spring retainer and spring.
9. Install the EPI GREEN secondary spring in clutch. Place the spring retainer and snap ring on top of spring. Using
the clutch compression tool, slowly compress the spring retainer down far enough to install the snap ring. Install the
snap ring and remove clutch from tool. Install the helix into clutch and push down. Make sure that when you push
the helix into the clutch you do not damage the two plastic rollers. Install the four torx bolts. If needed, you can
rotate the clutch either direction to align the torx bolts. Push the helix down. Tighten the four torx bolts to 42 to 52
inch pounds. Do not under or over tighten torx bolts.
10. Install the belt in the secondary clutch so the numbers on the belt read from left to right. You need to get the
clutch sheaves to open so the belt can drop down into the clutch. This will give you enough slack in the belt to feed
it around the primary clutch and then slide the secondary clutch onto its shaft and reinstall the bolt that holds it in
place. Our trick for this is to loop the belt around the clutch, slide the clutch onto its shaft on the machine, then
while stepping into the machine, grab the belt and pull straight up. This will pull the belt down into the sheaves fairly
easily. Then slide the clutch back off the shaft, loop the belt around the primary clutch and then reinstall the
secondary and tighten the bolt that holds it on the shaft. With the machine in neutral, spin the clutches by hand until
the secondary has shifted back to its closed position and the belt is riding at the top of the sheaves. If you fail to do
this it will be like starting out in high gear when you try to drive it for the first time and you will possibly burn the
belt.
11. Install the plastic clutch cover, making sure it seals properly. Tighten the clamps to seal the vent tube on top of
the clutch cover. Install the rear service panel. Install the seat cross bar and install both seats.
12. Go out and ride your machine. If after riding the machine something doesn’t seem right, double check that the
secondary clutch has been assembled correctly.
NOTICE: Even with this clutch kit, you should be advised that using substantial throttle when the tires are not able to
spin can cause the belt to slip and damage may occur. EPI recommends that the transmission be shifted into low
range when high load, slower speed situations are encountered. EPI is not responsible for any damage to the drive
belt or any other original equipment component.
