Herman Miller Celle Chairs - Disassembly For Recycling User Manual
Page 9
Z
© 2011 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Celle are among the registered trademarks of Herman Miller, Inc.
TM
Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
9
Part no. 1b9vtd rev A.

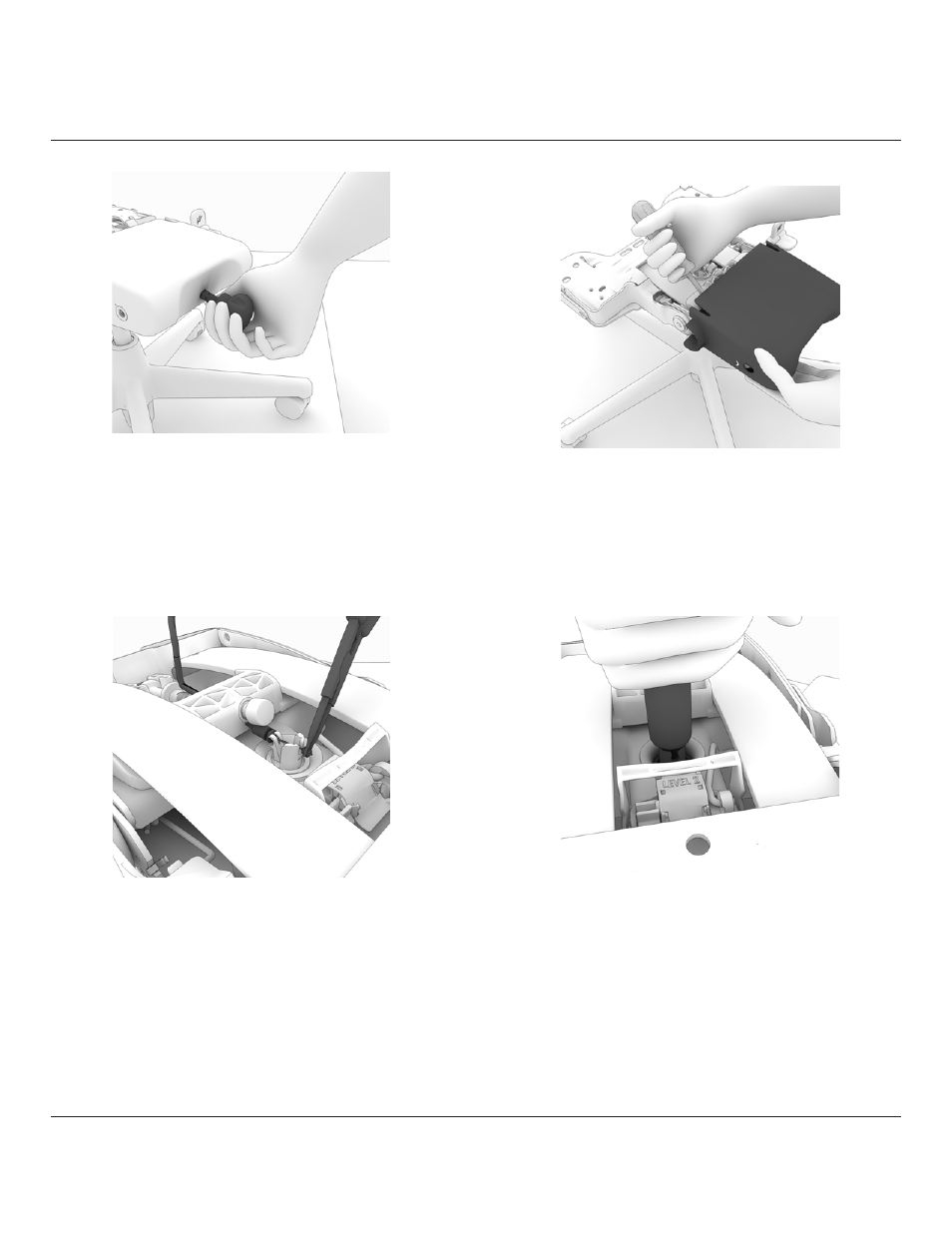

31. Remove tilt tension
adjustment knob by pulling
knob from shaft by hand.
32. Insert a screwdriver
behind the tilt cover push
forward and remove the tilt
cover.
33. Using needle nose
pliers, remove & save height
adjust cable from top of
pneumatic cylinder.
34. Place pneumatic
cylinder knock out tool with
open end over end of
pneumatic cylinder. Make
sure tool rests squarely on
top rim of pneumatic
cylinder.
