Herman Miller Celle Chairs - Disassembly For Recycling User Manual
Page 4
Z
© 2011 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Celle are among the registered trademarks of Herman Miller, Inc.
TM
Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
4
Part no. 1b9vtd rev A.

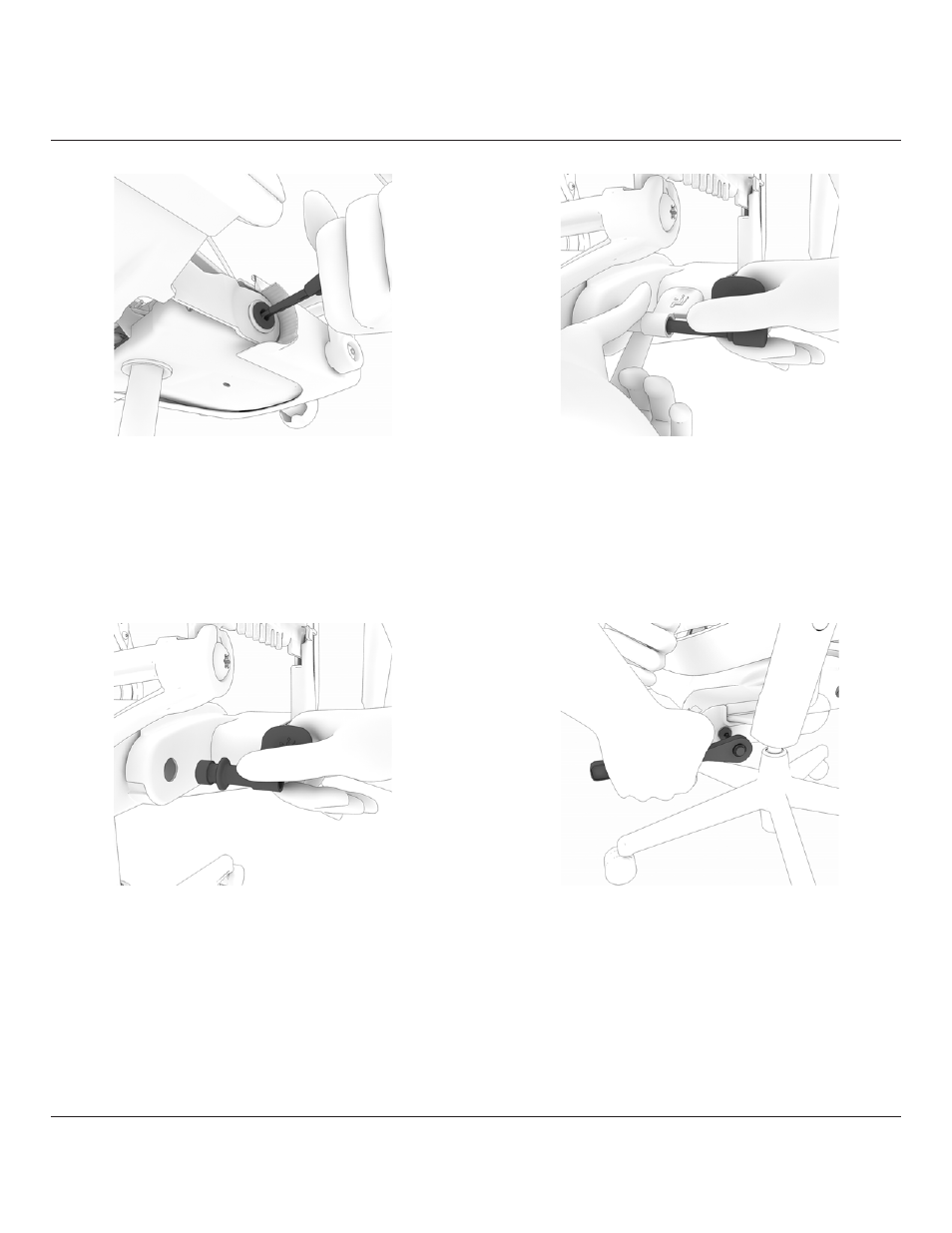

14. Using ratchet wrench
and T-40 torx bit, remove
and save screws securing
back support to tilt housing.
Repeat for opposite back
support.
12. Using hand pull off the
seat angle lever.
13. Using hand pull off the
tilt limit lever.
11. Using a snap ring plier,
remove snap ring, washer
and foam spacer.
