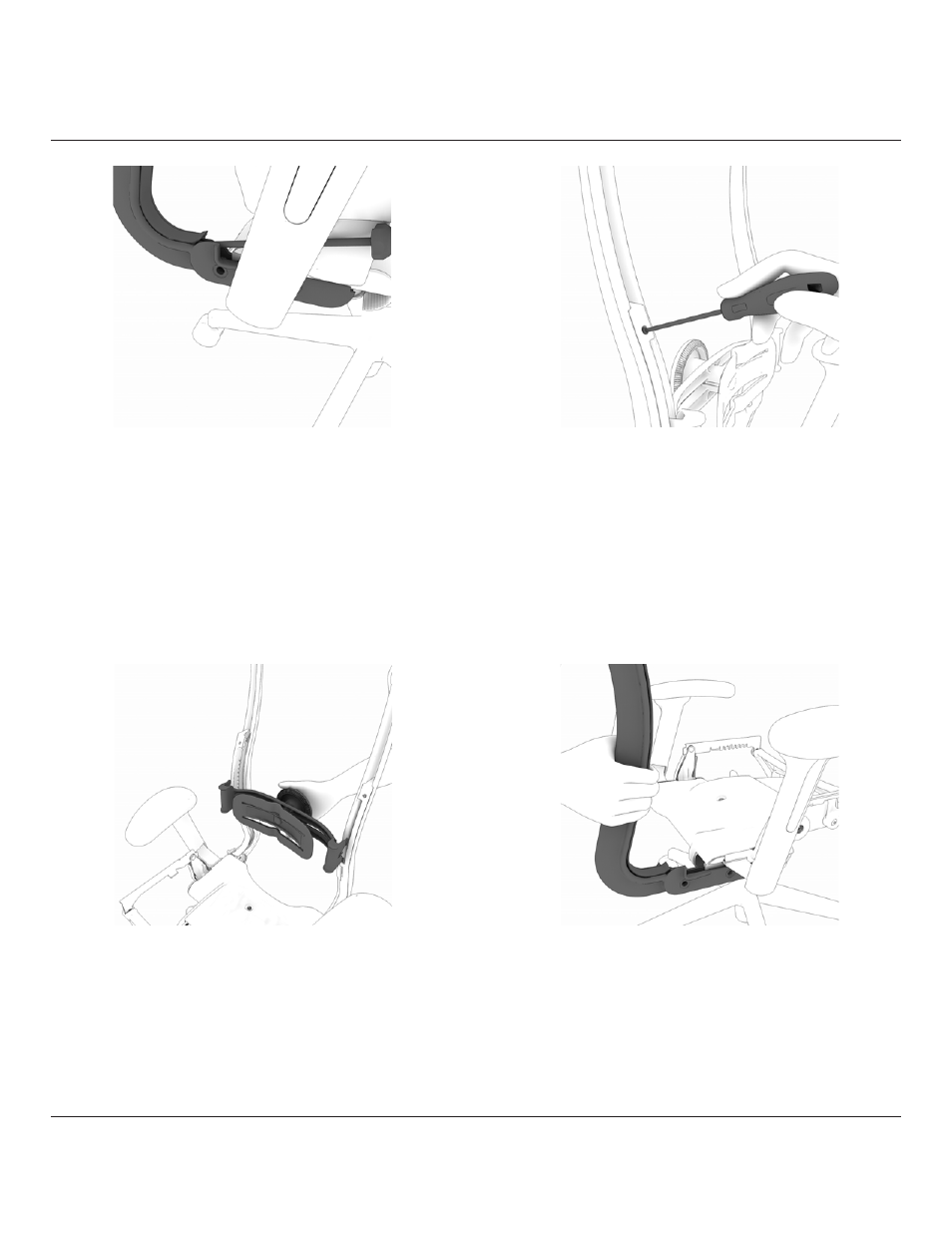

15. Using a straight head
screwdriver, pry bottom of
frame insert up and out of
each support frame. Slide
back support frames
partially out of tilt . 16. Using a T-20 Torx head
screwdriver remove the
screw from frame insert.
Repeat the step to remove
the screw from other side
frame.
17. Remove frame inserts
and remove lumbar from
back support frames. 18. Remove both side seat
frames.
