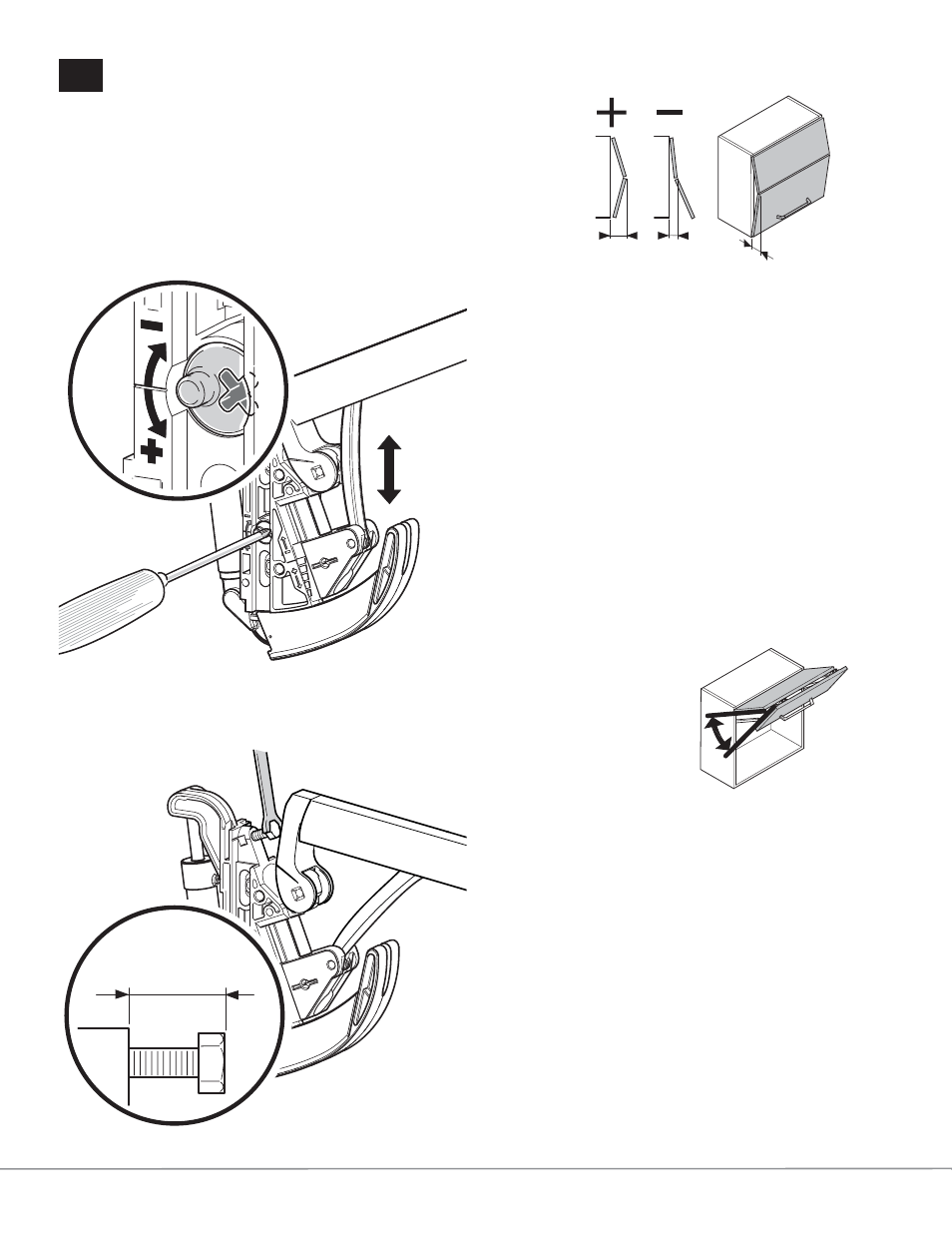

The adjustment of the center pulling-in of the
flaps is done through the Exenter-screw
(see scale).
12
Adjust flap, if necessary.
(Fitting is pre-set by factory)
X X
X
SW 8
min. 9 mm
max. 15 mm
The adjustment of the final stop (abt. 12 mm)
,
pre-set by the factory, is done through the
stop-screw.To do this pull the lifting-arm / flap
slightly downwards.
