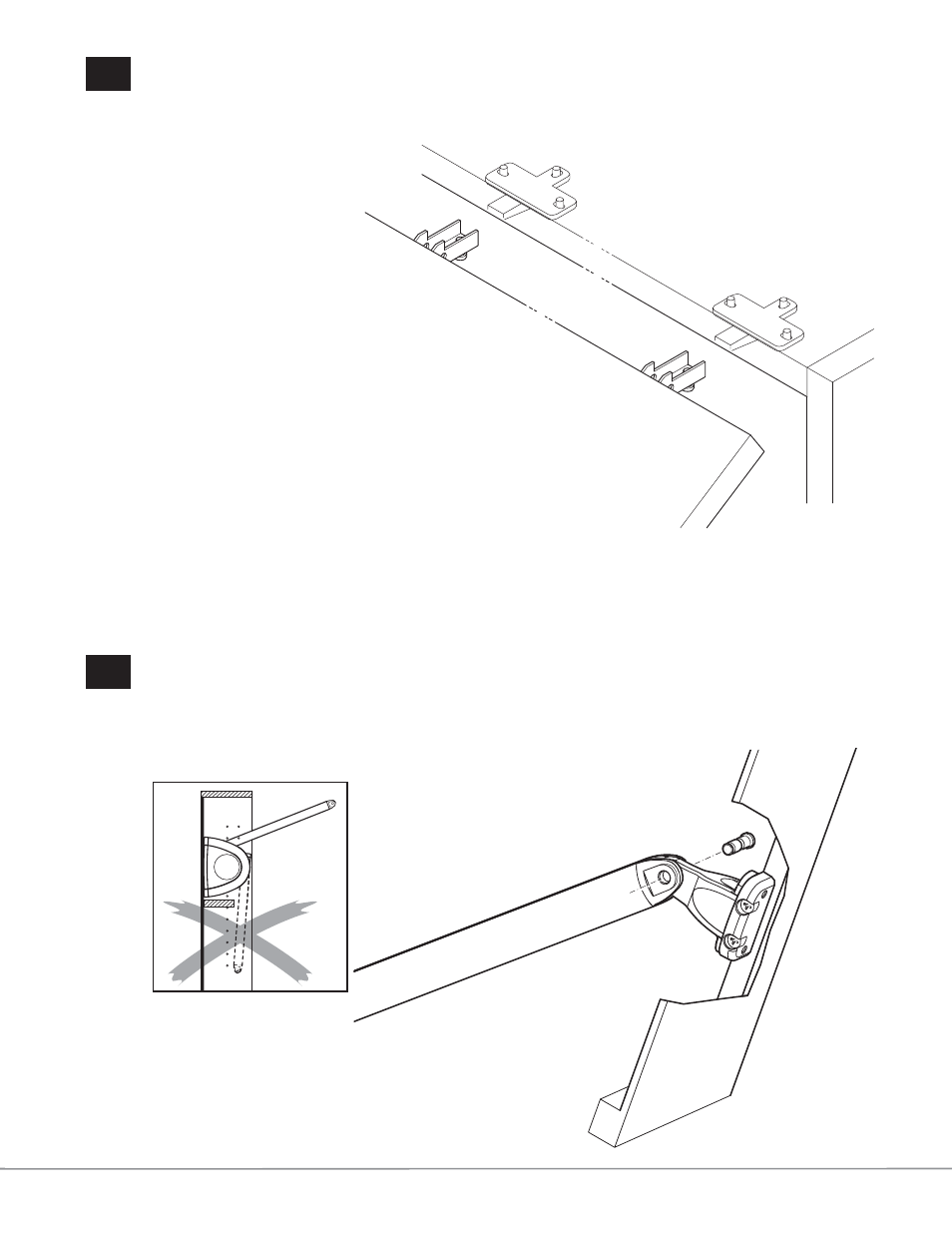

Insert lifting arms (open position) into flap supports and secure with bolt.

10

Insert the cabinet flap into the hinge joints and fix securely.

We recommend
Cross-mounting plates with three mounting holes.
