EVS IPDirector Version 5.9 - January 2011 Part 7 User’s Manual - Manual (Page 21)

Issue 5.9.A IPDirector Version 5.9 – User Manual – Part 7: AB Roll Playlist
EVS Broadcast Equipment – January 2011
In this window you can edit the channel letters in the left column of the table,
if so desired.
Click OK to accept the presented allocation.

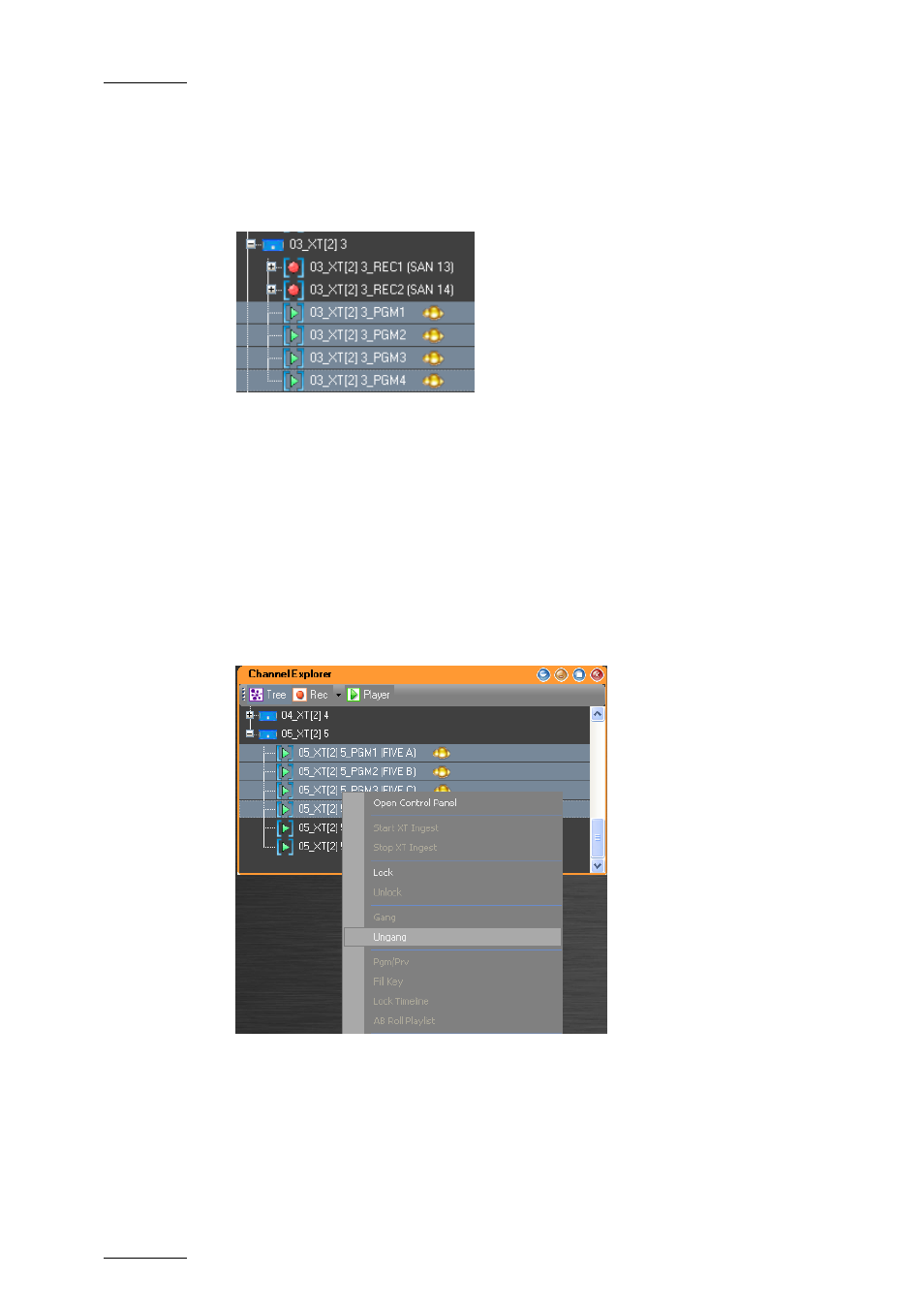

The selected channels are now marked with the "Ganged" icon and ready to
be used as an AB Roll Playlist channel group:
2.2 ADDING/REMOVING A CHANNEL FROM A
GROUP
To add or remove a channel from an AB Roll Playlist group, you need to redefine
the group. To do so, proceed as follows:
1 Select all channels of an AB Roll Playlist group in the Channel Explorer grid.
2 Right-click the selected group and click Ungang.
3 Select the new channels to include in the AB Roll playlist group.
4 Right-click the selected channels and click the AB Roll Playlist command.
12
