5. The Channel Pane

5.1 INTRODUCTION

The Channel pane shows the status of all playout servers individually. Each

playout server corresponds to one output channel.

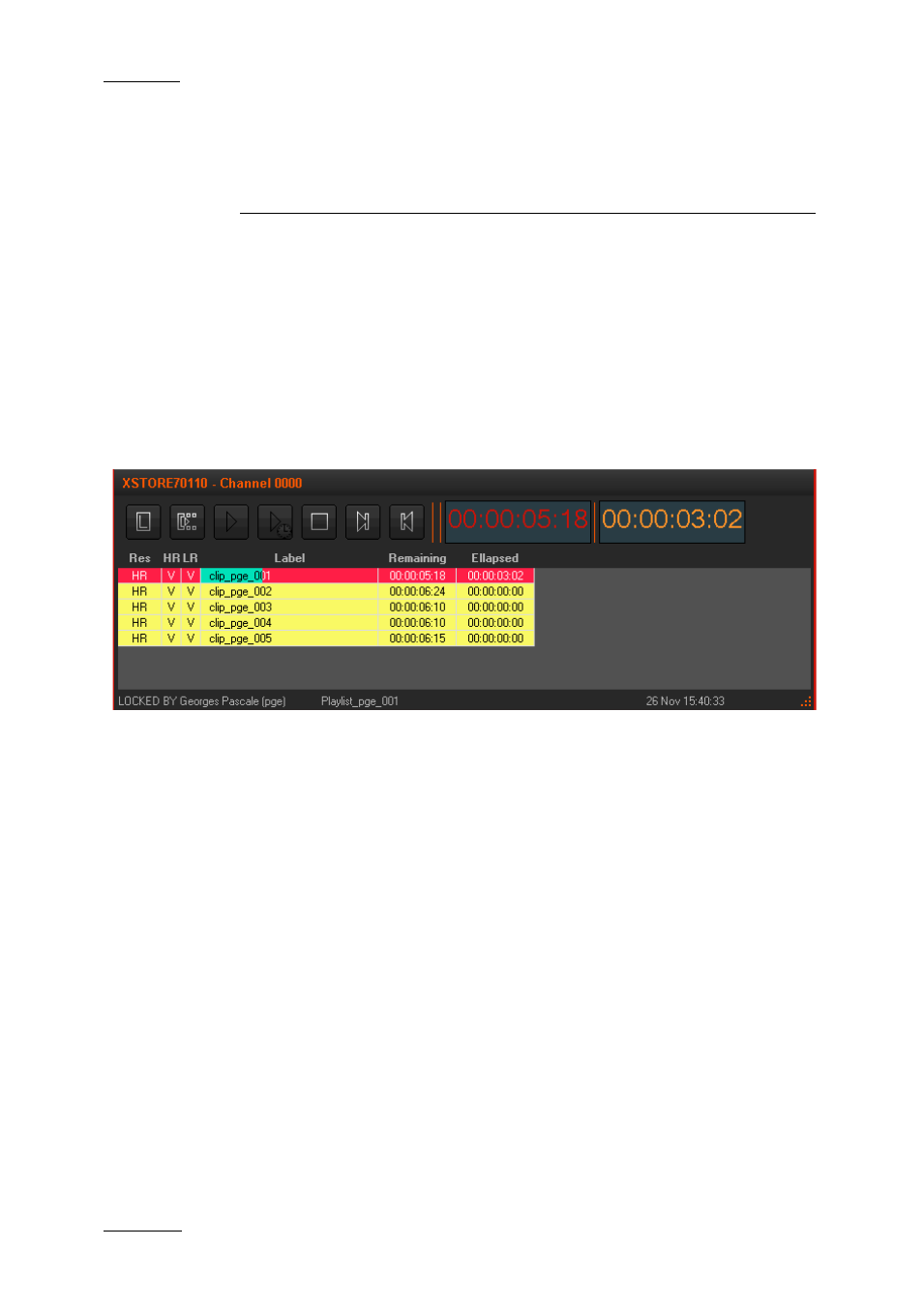

5.2 OVERVIEW OF THE CHANNEL PANE

The upper part of the Channel pane provides transport buttons and timecode

fields. The Play buttons become available as soon as a Playlist pane is connected

to a playout server.
The lower part of the Channel pane displays the elements of the playlist as soon

as the playlist is loaded on the output channel.
When the playlist is being broadcasted, the pane displays the list of remaining

items to play. Different colors are used to highlight the clip currently playing and

the preloaded clips.

5.3 TRANSPORT CONTROLS AND TIMECODE

FIELDS

The transport controls available from the Channel pane are the same as those

provided in the Playlist pane. Refer to section 4.2.1 ‘Transport Controls’ on page 9

for more information.
The Timecode fields can show either the playing clip remaining timecode or the

clip elapsed timecode. These options are available when you right-click on the

Timecode fields.
