• the transition key
In the transition key, white represents the current picture and black represents
the next picture.

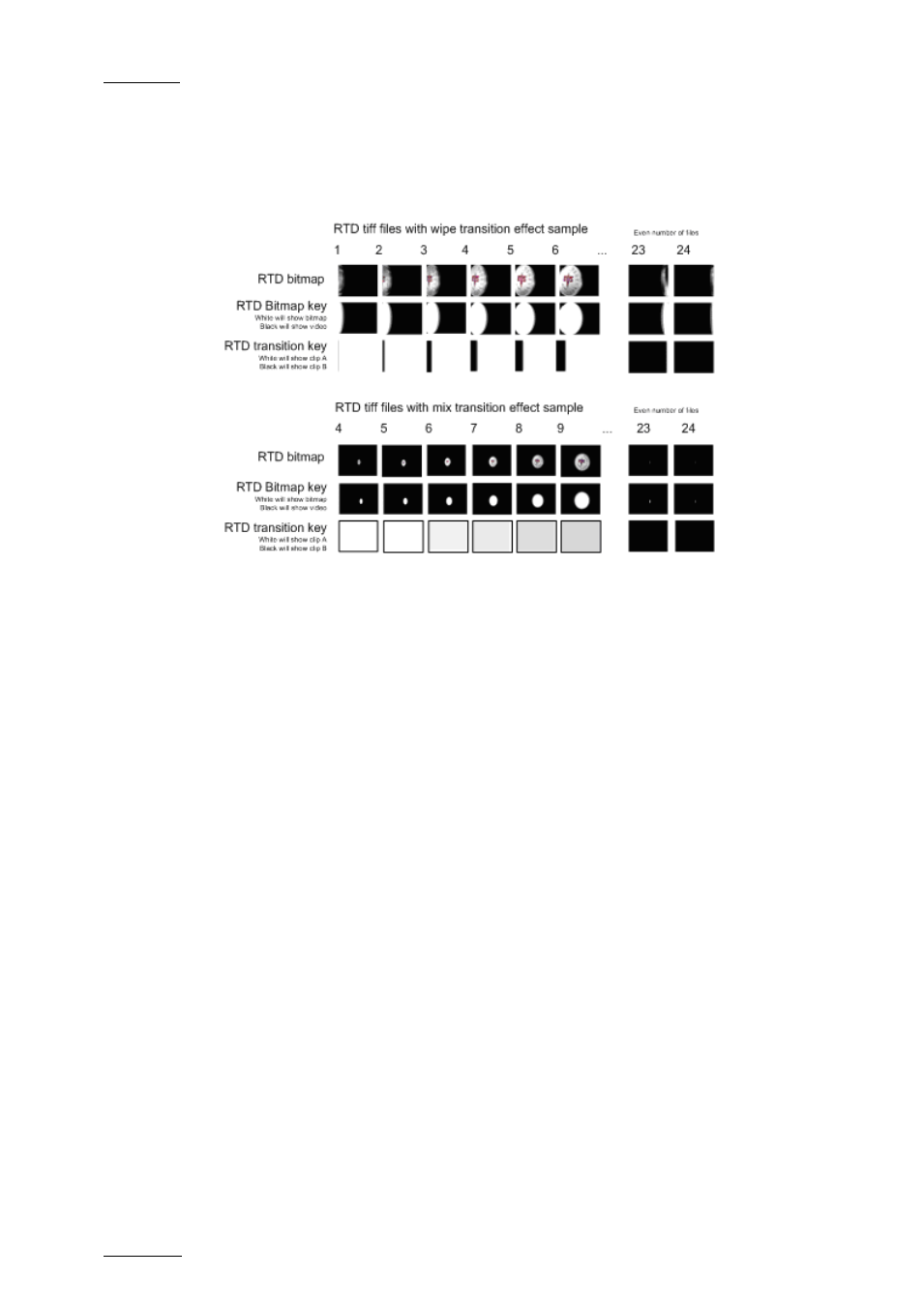

This is represented in the picture below:
4.2.2 R
EQUIREMENTS FOR
TIFF F
ILES
You need to have an even number of Tiff files for your RTD sequence.
The Tiff files used in an RTD sequence should be full size:
• in SD PAL: 720 x 576 pixels
• in SD NTSC: 720 x 480 pixels
• in HD: 1920 x 1080 pixels
In PAL, the 768 pixel resolution is reduced to 720 in 4:3, and the 1024 pixel
resolution to 720 in 16:9 to keep the aspect ratio.
The Tiff files should be done in RGB mode, 24 bits/pixels (8 bits/color), 2 keys.
4.3 SETUP
Before you start importing files, you need to specify, via the Setup button, the
media server where the lo-res and hi-res files will be stored when they are
imported.
