5.3

Channels Area

The channels area is filled with all selected channels (Max 6 channels)into the server list.

Each channels' field displays the same information:

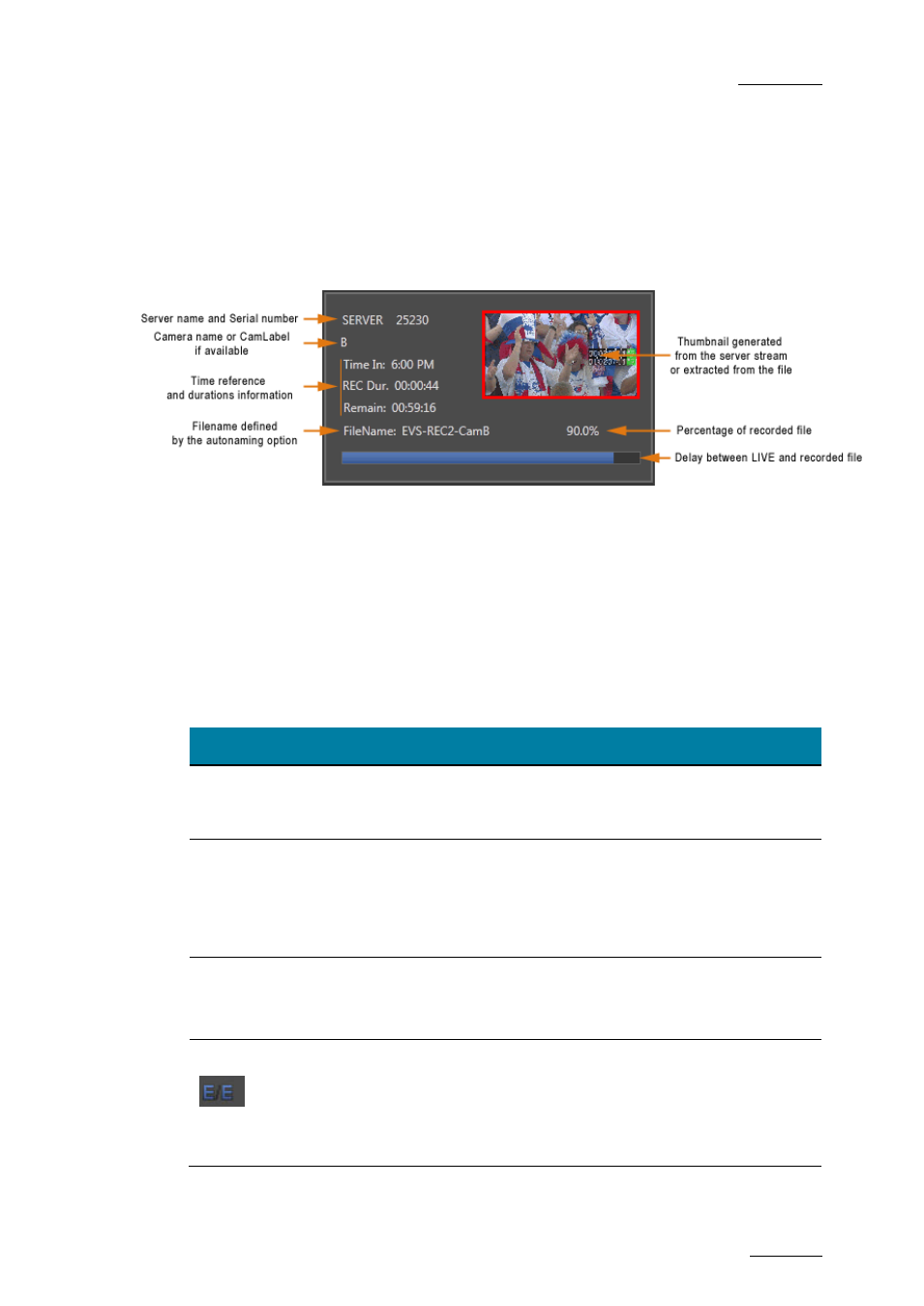

The Channels area is divided into 6 panels. Each panel is dedicated to one channel. The
screenshot below features a single panel, as all fields have the same meaning in all
panels.

5.4

Commands and Status

5.4.1 Area Description

This area contains the following buttons and fields:

Button/Field

Description

Server TC

This field displays the timecode reference of the first
server selected in the servers list. This field is not
editable.

TC IN

The TC IN field is editable. Click into the TC IN field and
enter a value. Press ENTER to validate.

The TC IN value must exist in the material of the selected
server. This means that only TC “in the past” can be
entered in the TC IN field.

TC OUT

The TC OUT field is editable. Click into the TC OUT field
and enter a value. Press ENTER to validate.

The TC OUT value must be higher than the TC IN value.

E/E

This button appears only when the TC IN field is
manually edited.

It allows to clear the TC IN and TC OUT fields.It is
disabled when a recording is in progress.

See section….
