Blue Ox BX88181 User Manual
Blue Ox For the car

®
Breakaway System
BX88181
Installation Instructions
Installation for Breakaway System BX88181
Th
e BX88181 Breakaway system is designed for use with the Apollo® braking system (BX88179).
Th
e Apollo must be assembled and installed per its instructions prior to the Breakaway system
installation.

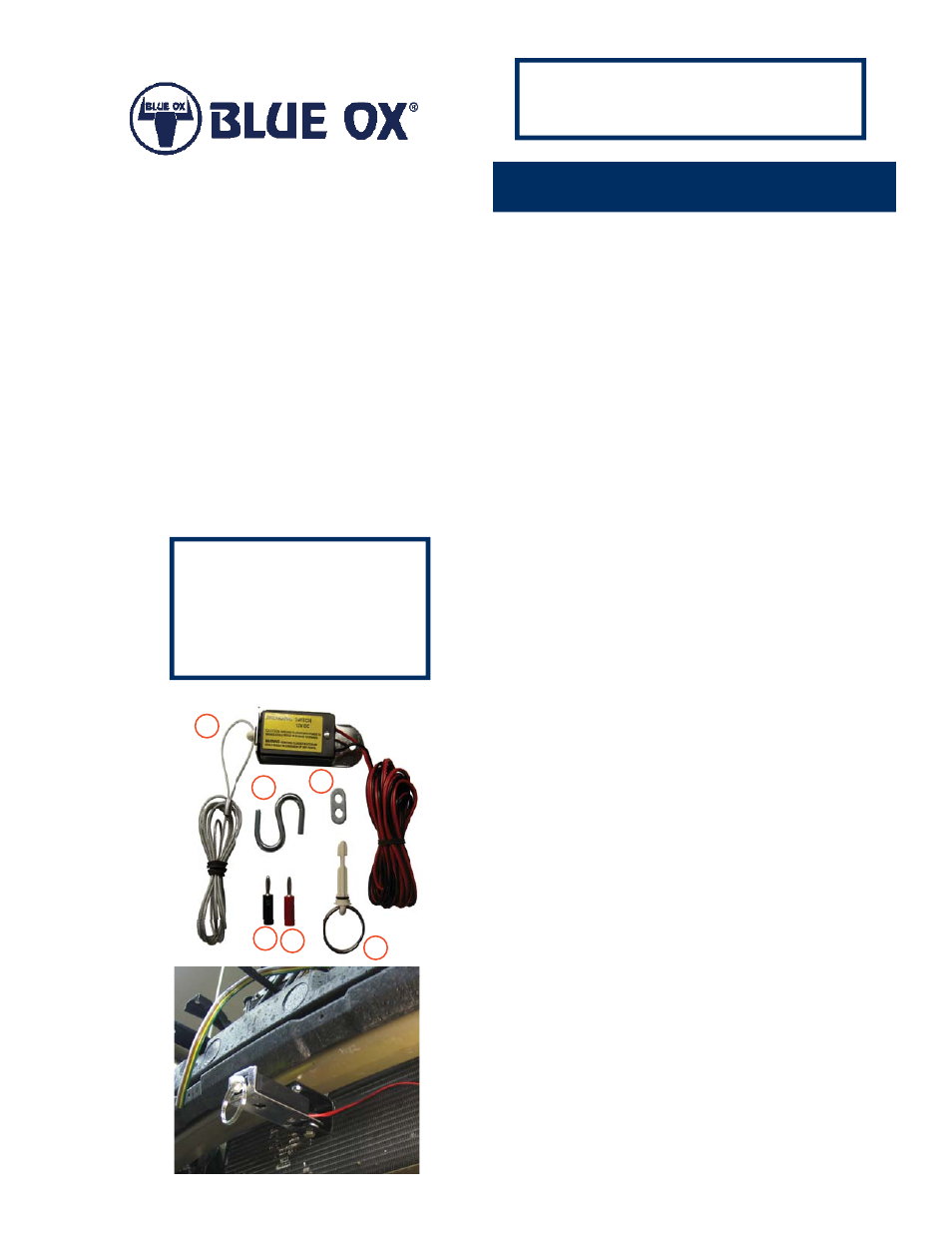

Contents:
Ref #
Qty.
Part #
Description
1
1
62-3551
Breakaway, Assy W/7’ Cable, BX88181
1
1
101-5822
Adapter, 4 Way Connector
2 1
200-0149
S
Hook
3
1
101-5822
Cable Adjustor Plate
4
1
294-0840
Banana Clip Black
5
1
294-0839
Banana Clip Red
6 1
62-3486
Replacement
Plug
Installation Instructions
1. Attach the Breakaway switch to a central
location on the towed vehicle’s metal
frame structure (not to the baseplate or
any additionally installed item). Do not
overtighten. Ensure the switch is able to pivot
but does not pivot too freely.
2. Take the red and black wires leading from the
Breakaway switch and route them through
the underside of engine compartment to the
driver’s side fi rewall. Secure the wires to non-
moving items through the engine compartment
using wire ties. Note: Keep the wires clear of
sharp edges.
3. Locate a rubber grommet on the fi rewall to
push the wires through and into the vehicle. If
one is not available, use a ¼” drill bit to drill
through the fi rewall. Place a rubber grommet
on the new hole to prevent the wire from
stripping later or grounding out.
Tools Required
1/4” Drill Bit
Wire Ties
Vise Grip
Rubber Grommet (if needed)
Page 1 of 3
292-6188 12/5/08
WARNING:
USE ONLY GENUINE FACTORY REPLACEMENT PARTS.
Do NOT substitute homemade or non-typical parts. This may cause
your Breakaway system to fail and result in injury or death. If repairs
of parts or components of your Breakaway system are needed, you
may order them through your nearest Blue Ox
®
dealer or distributor,
or call our Customer Care Team at (402) 385-3051 or toll free at (888)
425-5382.
Step 1
Step 1
Ф Ф
4
1
2
5
3
6
