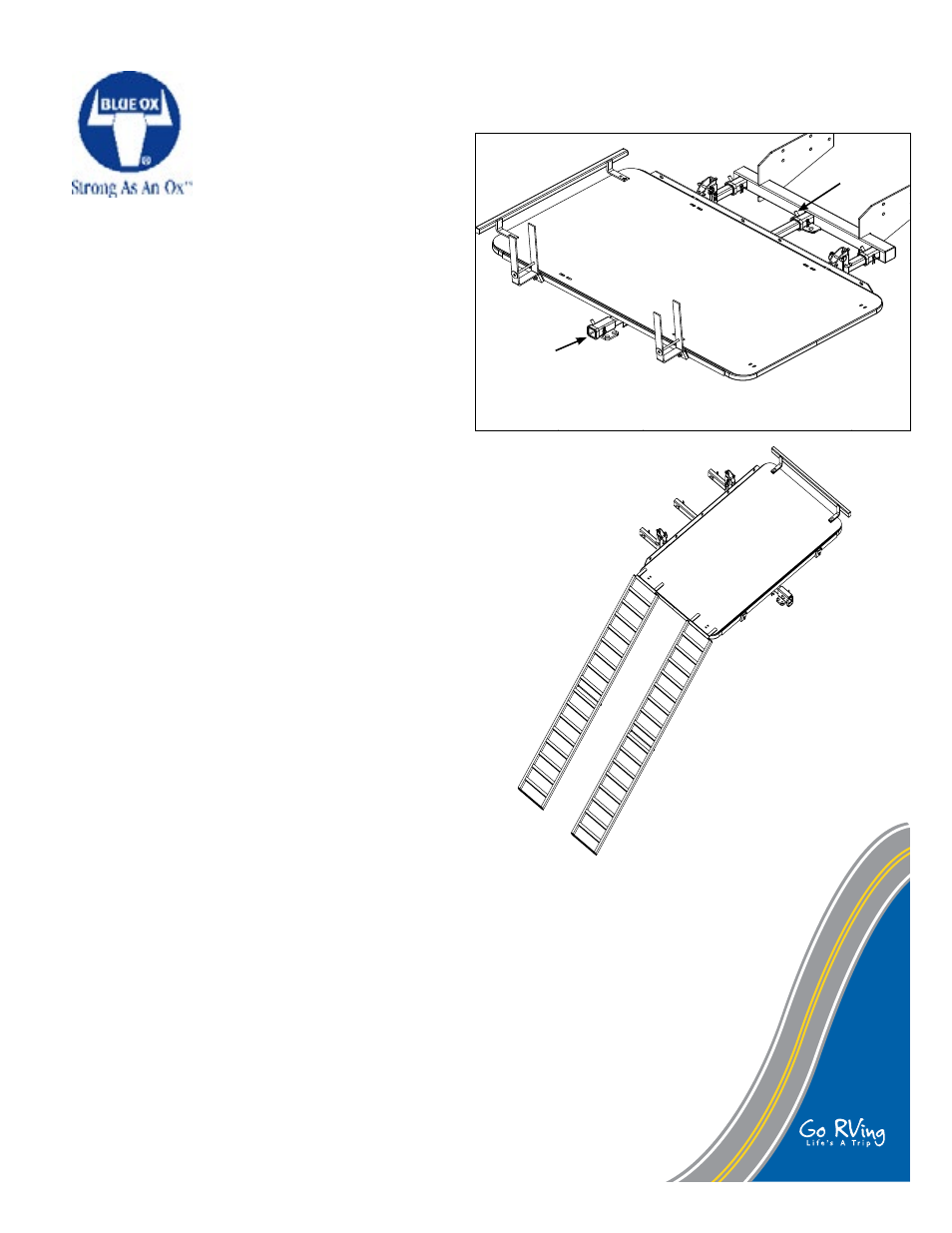

Fig. G
5. Pin the center extension into the center of the 3 re-
ceiver hitch with a 5/8" x 3" hitch pin making sure to
slide the extension into the hold up bracket. Using one
1/2" x 2 5/8" pin (Item 12) and one clip assembly (Item
13), pin the center extension into the hold up bracket
(Fig. G).
LOADING INSTRUCTIONS
Slowly ride the motorcycle or golf cart up the ramps
making sure the tires are centered on the ramps.
Acceleration must be slow and steady, NEVER over
accelerate!
Secure the cargo with as many tie down straps as
needed. Usually four tie down straps are sufficient.
To unload, be sure ramps are centered and fastened
in place. Then slowly back down using the brake as
necessary to control the speed.
UNLOADING INSTRUCTIONS
Blue Ox recommends using back tire stops for motor-
cycles, so the tire does not slide side to side.
IMPORTANT NOTES:
- If loading a motorcycle onto the deck, Blue Ox
has a black powder coated wheel chock available
(SC9001) for supporting the front tire.
MAINTENANCE
Wiping SportCarrier I
™
down periodically
will help prevent dust and dirt from build-
ing up.
SAFETY NOTES
Be aware that the deck of the carrier rotates up and
can be pinned in that position. Never stand in the
path of the deck. The deck is heavy and could cause
injury. Be sure both pins are used before letting go of
the deck. Use two people if necessary to lower and
lift the deck.
Insure that hands and feet are away from where the
deck pivots when lowering the deck of SportCarrier I.
