BX8848 Installation Instructions
4 Diode Wiring Kit
For Motorhomes With Amber Turn Signals
292-1305 Rev. D Page 5 of 5 4/11/12
Tools Required
Electrical Tape Screwdriver Wire Cutter
Wire Striper Terminal Crimper Utility Knife
12 Volt DC Continuity Tester with needle point prod 5’ Stiff Pull Wire
Parts List
Ref. No. Qty. Part # Description
1 4 294-0660 Diode Module, 6 Amp
2 1 294-0562 Wire Harness, 26’, 4-Way Male
3 1 294-0187 Ring Terminal, 5/16 STD., 16-14 GA
4 12 294-0398 Terminal Coupling, Female, 22-18 GA
5 36” 194-0125 Wire, 14 GA. White

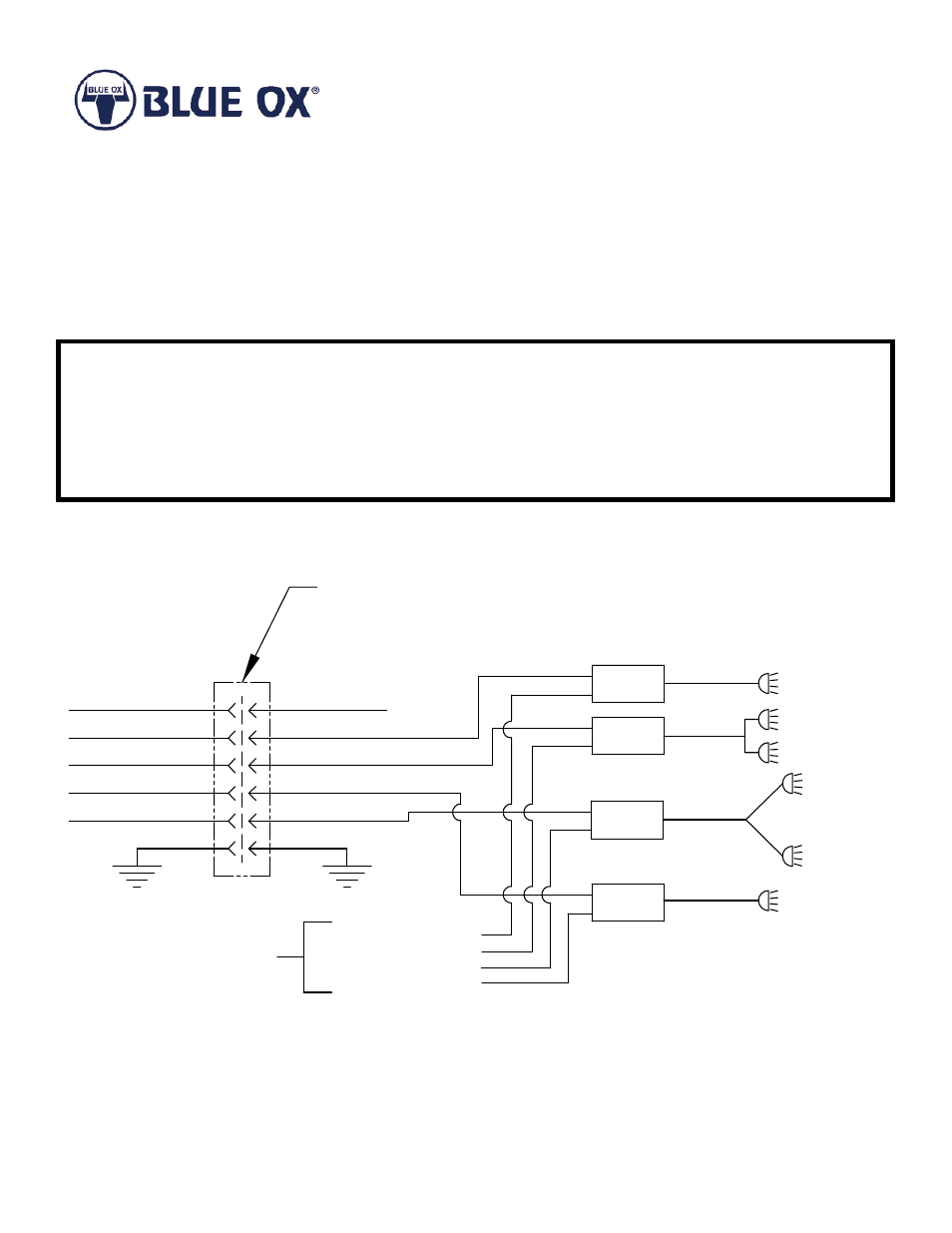

SATURN WIRING
OUT
IN
BRAKES (Light Blue)
LEFT TURN (Yellow)
TAIL LIGHT (Brown)
RIGHT TURN (Dark Green)
IN
IN
OUT
IN
IN
IN
IN
IN
OUT
OUT
MODULES
DIODE
AMBER LEFT
TURN
RIGHT
BRAKE
AMBER RIGHT
TURN
LIGHTS
TAIL
LEFT
BRAKE
GROUND
Dark
Green
Brown
Lt Blue
Yellow
GROUND
Supplied White Wire
BRAKES - White
LEFT TURN - Yellow
TAIL LIGHT - Brown
RIGHT TURN - Green
NOT USED
BRAKE LIGHT
LEFT TURN
TAIL LIGHT
RIGHT TURN
NOT USED
MOTORHOME
6 Pin Trailer Plug
1 Pin Not Used
Female Half Only
Supplied With Kit
