BX8848 Installation Instructions
4 Diode Wiring Kit
For Motorhomes With Red Tail Lights
292-1305 Rev. D Page 2 of 5 4/11/12
Tools Required
Electrical Tape Screwdriver Wire Cutter
Wire Striper Terminal Crimper Utility Knife
12 Volt DC Continuity Tester with needle point prod 5’ Stiff Pull Wire

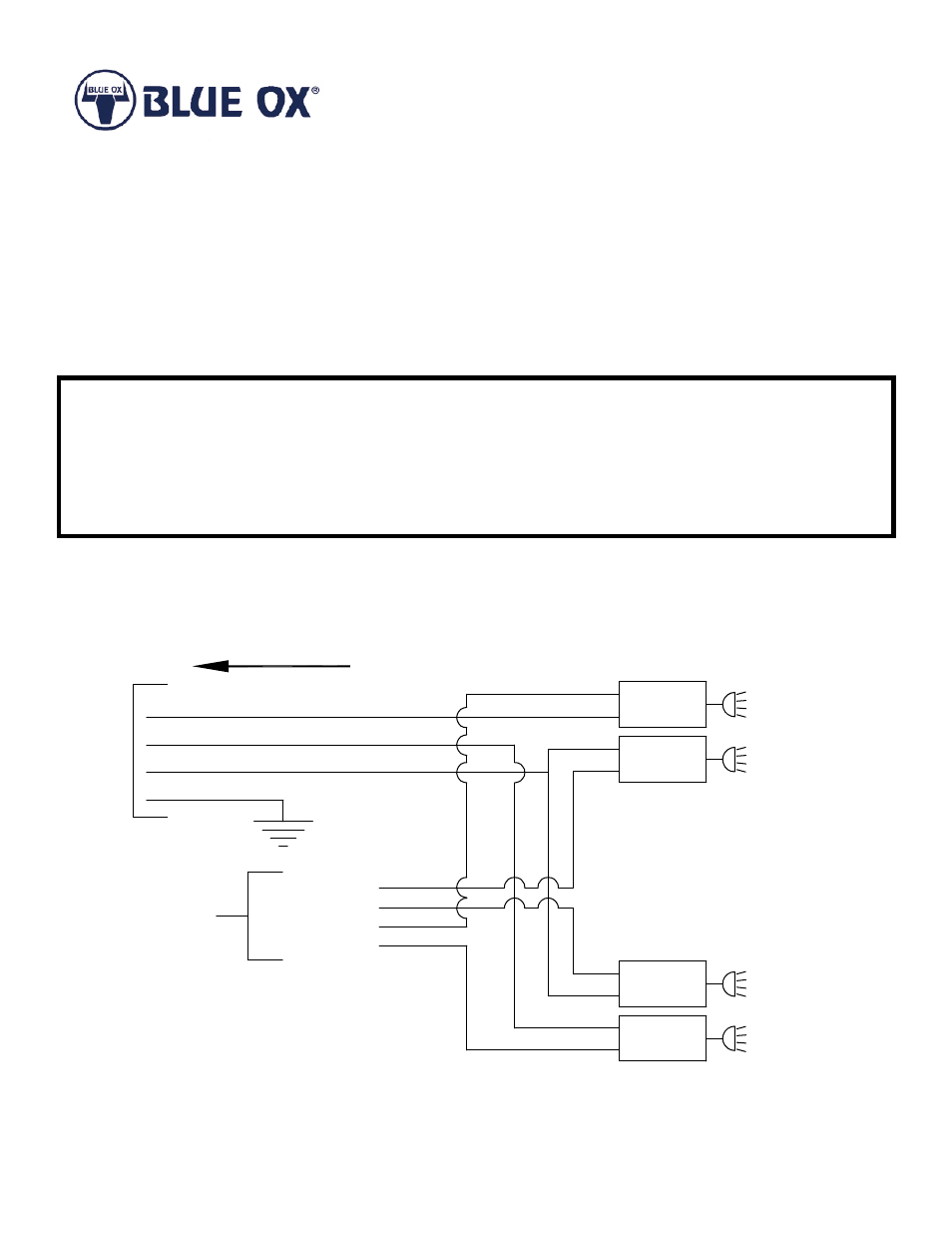

EXISTING TOWED
RIGHT TAIL
LEFT TAIL
RIGHT BRAKE
GROUND (white)
TAIL LIGHT (brown)
RIGHT TURN/BRAKE (green)
MODULES
IN
IN
IN
IN
OUT
OUT
DIODE
LEFT
TURN/BRAKE
RIGHT
TURN/BRAKE
TAIL LEFT
VEHICLE WIRING
TO RECEPTACLE
ON FRONT OF TOWED VEHICLE
LEFT TURN/BRAKE (yellow)
LEFT BRAKE
IN
IN
IN
IN
OUT
OUT
TAIL RIGHT
Parts List
Ref. No. Qty. Part # Description
1 4 294-0660 Diode Module, 6 Amp
2 1 294-0562 Wire Harness, 26’, 4-Way Male
3 1 294-0187 Ring Terminal, 5/16 STD., 16-14 GA
4 12 294-0398 Terminal Coupling, Female, 22-18 GA
5 36” 194-0125 Wire, 14 GA. White
