Blue Ox BX8847 - Manual (Page 3)

292-1304 Page 3 of 3 10/2001
Tools Required
Electrical Tape Standard Screwdriver Wire cutter
Wire Striper Terminal Crimper Utility Knife
12 volt DC Continuity tester with needle point prod 5 ft. Stiff Wire
Parts List
Ref. No. Qty. Part No. Description
1 3 294-0660 ........................................................................ Diode Module, 6 amp
2 1 294-0562 ............................................................... Wire Harness, 26 ft., 4 wire
3 1 294-0187 .................................................. Ring Terminal, 5/16 Stud, 16-14 Ga
4 9 294-0398 ........................................................ Term. Coup., Female, 22-18 Ga

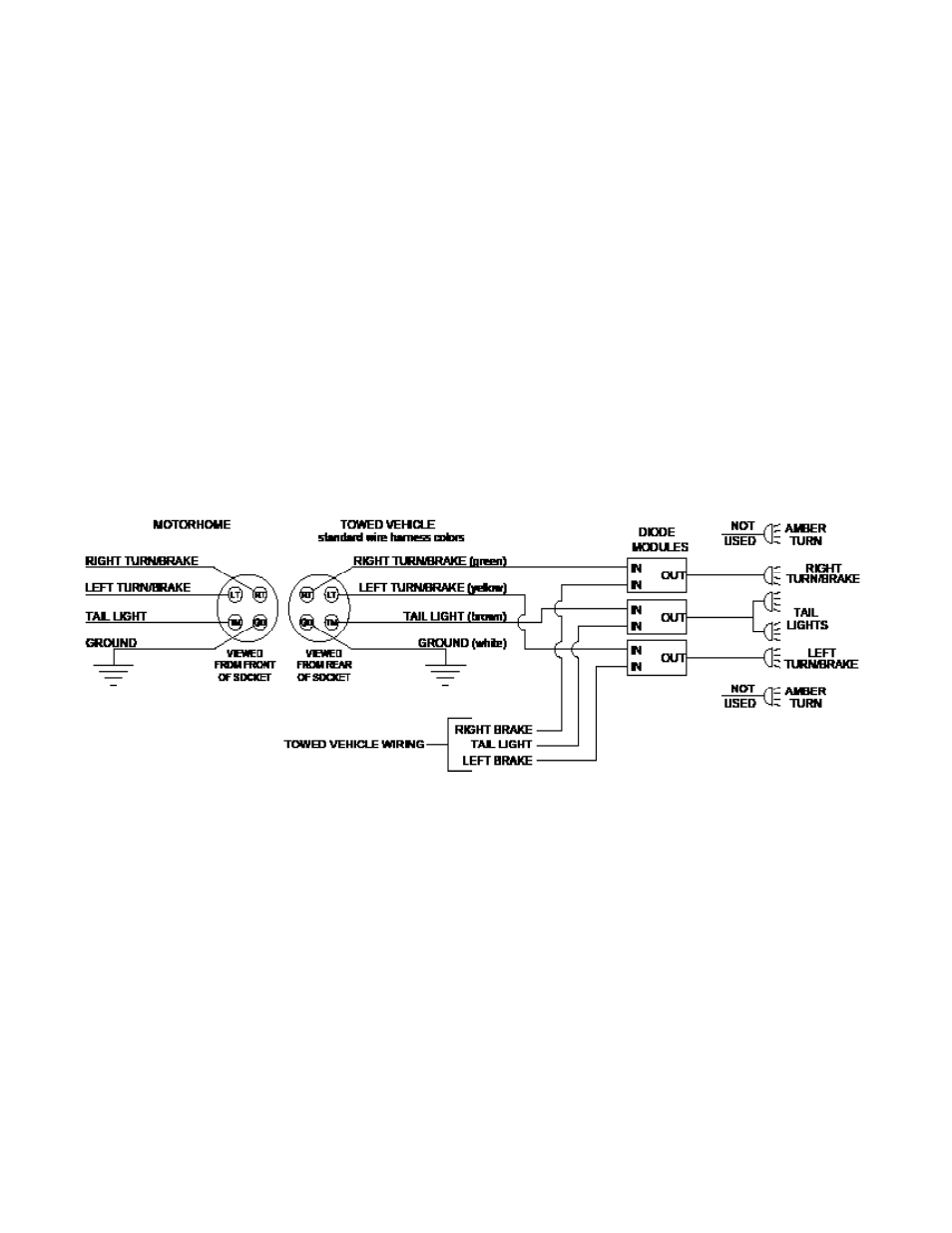

Saturn diagram shown. Other makes of vehicles will be similar. Colors of wires on other makes and
models will likely be different than those depicted below. Use needle point tester to identify wires.
