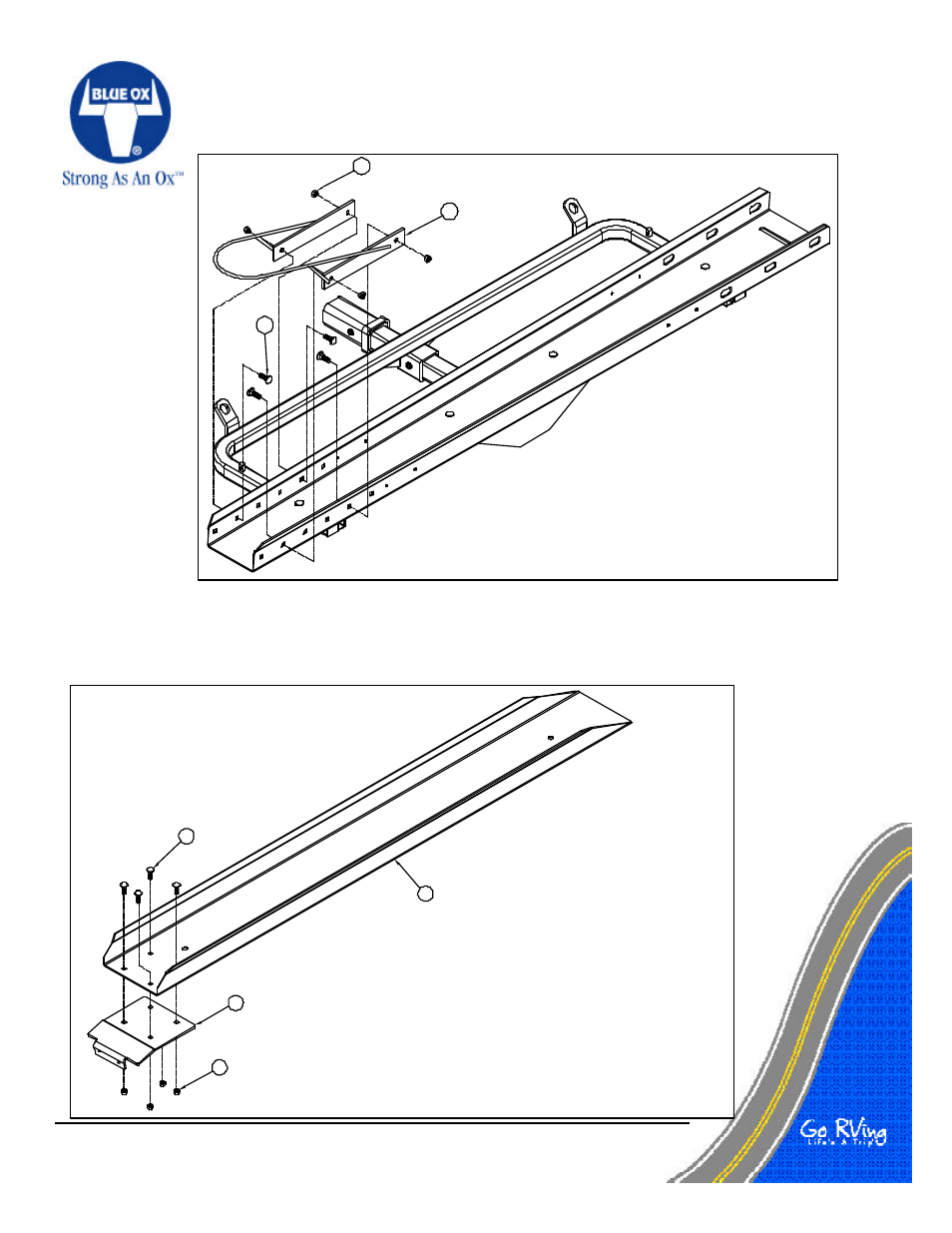

3. Slide the tire support weldment flats (item 4) on the outside edge of the narrow end on the motorcycle deck
(item 3) to align the square holes of the deck with the round holes on the tire support. Insert the 3/8-16 x 1"
carriage bolt into the square holes on the inside track of decking and tire support, tighten the 3/8-16 nylon
hex locking nuts on the outside edge of tire support flats with the 9/16" socket. Torque 3/8-16 hex nuts to
33 ft. lbs.
4. Align the square holes of the motorcycle ramp (item 5)
with the connecting plate (item 6). Insert the 3/8-16 x 3/4"
carriage bolt into the square holes on the top side of ramp
decking, tighten the 3/8-16 nylon hex locking nuts on the
bottom side edge of connecting plate with the 9/16"
socket. Torque 3/8-16 hex nuts to 33 ft. lbs.
