292-2676 4/05 Page 3 of 9
Parts List
Ref. No. Qty.
Part No.
Description
1
1
61-6099 ............................................................................ Weldment, Stinger, SC2001
2
1
61-6100 ................................................................... Weldment, Tube Frame, SC2001
3
1
101-6743 ............................................................................. Motorcycle Deck, SC2001
4
1
299-0376 .......................................................................... Weldment, Tire Support, ZP
5
1
101-6751 ............................................................................Motorcycle Ramp, SC2001
6
1
101-6752 ............................................................................ Connecting Plate, SC2001
7
2
61-6067 ....................................................................................... Weldment, Tie Down
8
4
201-0284 ............................................................. 3/8-16 x 3/4" Carriage Bolt, Gr 5, ZP
9
8
201-0034 ................................................................ 3/8-16 x 1" Carriage Bolt, Gr 5, ZP
10
4
201-0178 .......................................................... 3/8-16 x 2 1/2" Carriage Bolt, Gr 5, ZP
11
16
202-0090 ............................................................ 3/8-16 Nylon Hex Insert Lock Nut, ZP
12
2
201-0773 .................................................. 7/16-14 x 2 3/4" Cap Head Screw, Gr 5, ZP
13
2
203-0004 ....................................................................................7/16" Flat Washer, ZP
14
2
202-0128 .......................................................... 7/16-14 Nylon Hex Insert Lock Nut, ZP
15
2
84-0001 .........................................................................................Quick Pin Assembly
Motorcycle Carrier II Assembly

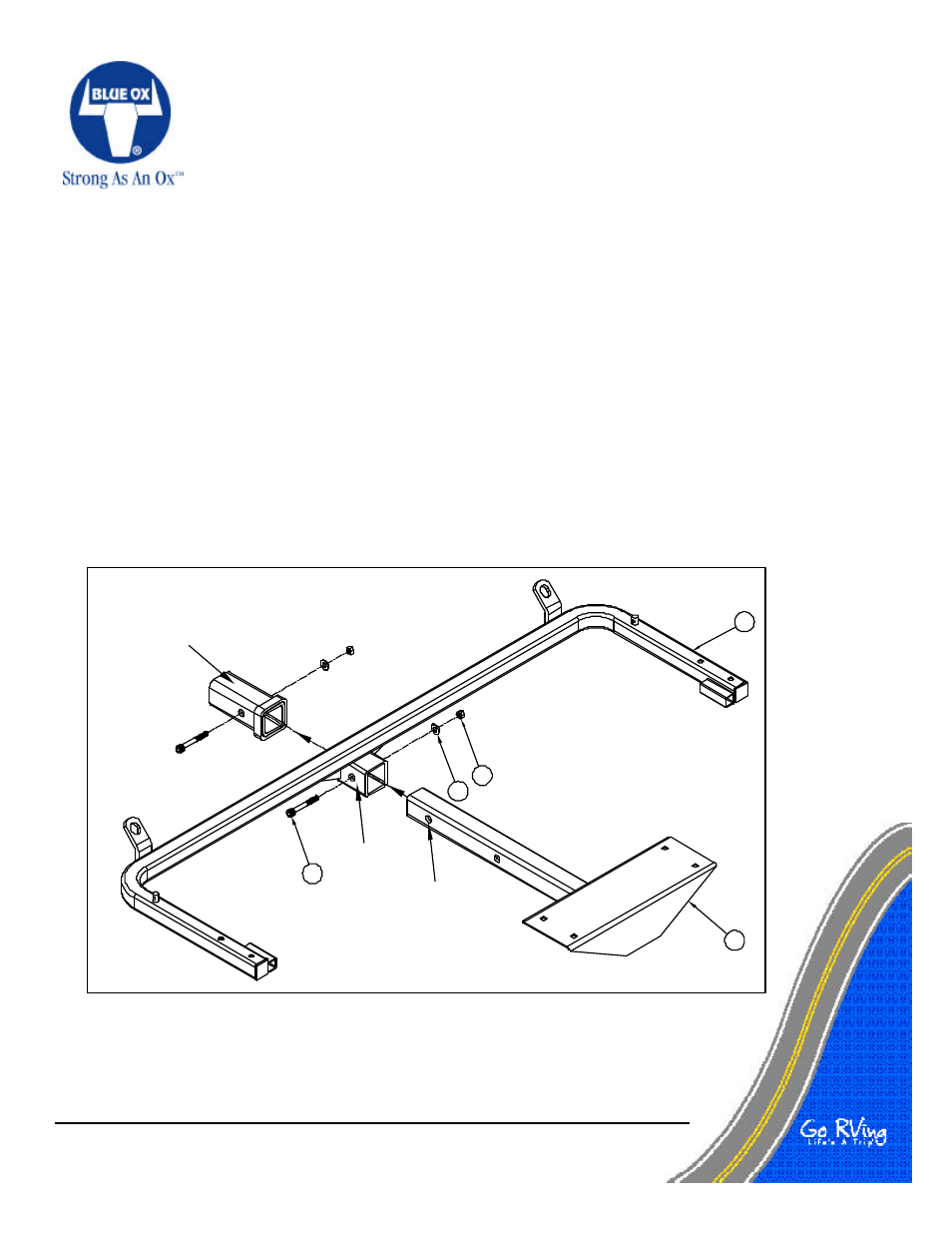

1. Insert stinger weldment into the stinger sleeve and tow vehicle's receiver to align 5/8" pin
holes. Insert 7/16-14 x 2 3/4" cap screw (item 12) into receiver, tighten flat washer and 7/
16-14 hex nut using the 11/16" socket and 3/8" allen wrench. Torque 7/16-14 hex nuts
to 54 ft. lbs. Slide stinger sleeve back, align holes of stinger and sleeve. Insert 7/16-
14 x 2 3/4" cap screw into hole, put on the 7/16" flat washer and 7/16 nylon hex locking
nut. But do not tighten.
WELDMENT
1
2
12
14
13
VEHICLES - EXISTING
2" RECEIVER
STINGER
STINGER
SLEEVE
