SC1200
TailGator™
Operator Manual &Installation Instructions
405-0223 Rev B Page 3 of 5 7/15/13

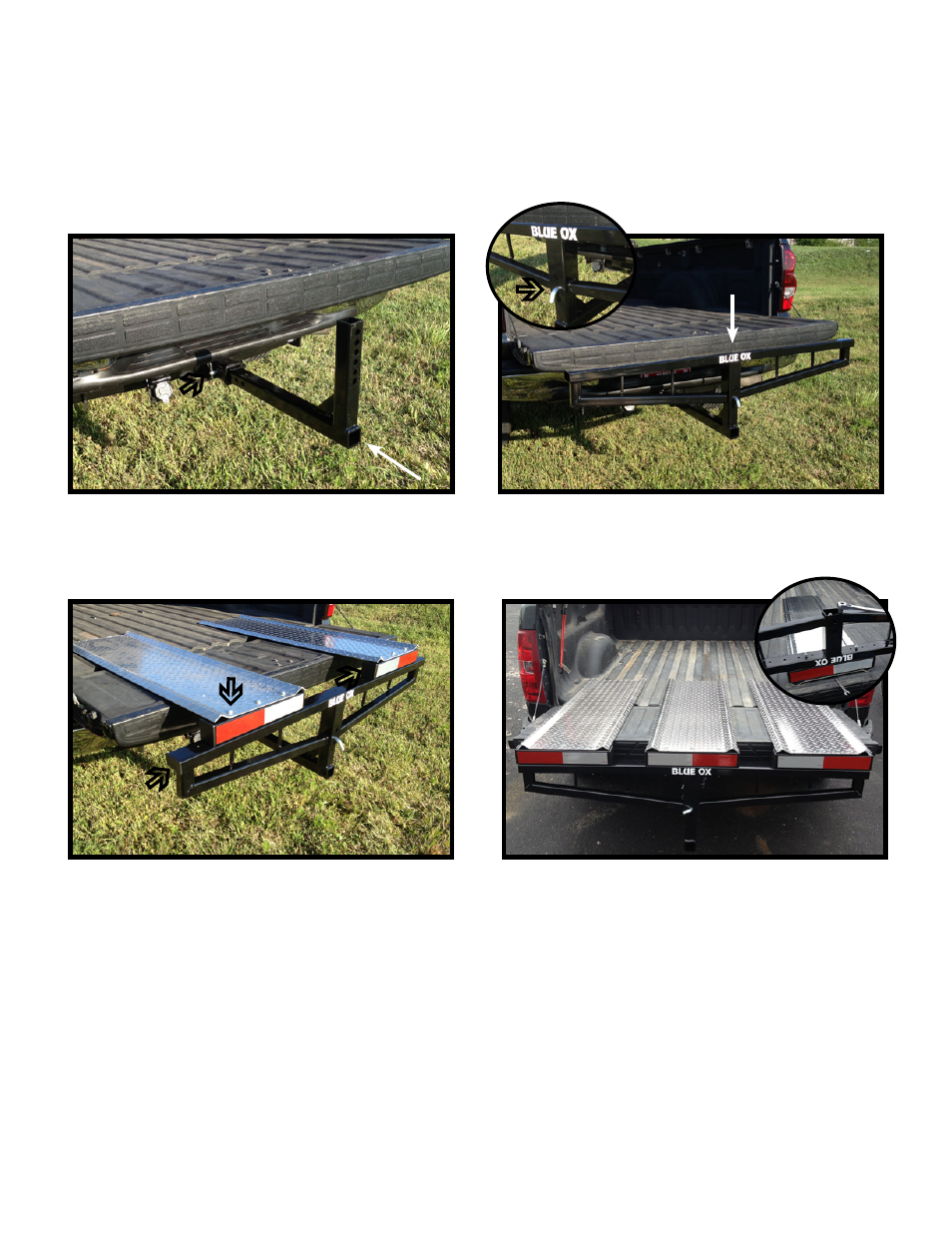

1. Slide the receiver hitch into the truck’s hitch
and secure with a 5/8” x 3” pin and clip.
2. Slide the support onto the receiver hitch
approximately 2-1/2” down from the tailgate
and secure with a 5/8” x 3” pin and clip.
3. Align the tube spacers and treadplates
with the holes in the support at the desired
locations. Install the six (6) 1/4”-20 x 5” bolts
with 1/4” flat washers thru the treadplates,
spacers and support and secure with 1/4” flat
washers and lock nuts on the underside of the
support (white). Install the two (2) support cap
plugs and four (4) spacer cap plugs (gray).





4. Optional Ramp Kit: If using the SC9059 kit
as a middle ramp like shown. Align the tube
spacer and treadplate with the holes in the
support. Install the outer two (2) 1/4”-20 x 5”
bolts with 1/4” flat washers thru the treadplate,
spacer and support and secure with 1/4” flat
washers and lock nuts on the underside of
the support. Remove the support from the
receiver hitch and flip it over to install the
middle bolt thru the treadplate with the washer
and nut on the inside of the support tube
(inset). Reinstall the support to the receiver
hitch and install the two (2) cap plugs.
