SC1200
TailGator™
Operator Manual &Installation Instructions
405-0223 Rev B
Page 2 of 5
7/15/13
Tools Required
7/16” Socket
7/16” Wrench
Important:
Use only genuine factory replacement parts on your TailGator
™
. Do NOT substitute homemade or non-typical parts. Replacement parts may be ordered
through your nearest Blue Ox® Dealer or Distributor, or call our Customer Care Team at 402.385.3051. Failing to follow and/or altering these installation
instructions in either installation or required equipment will void the manufacturer’s warranty.
Item No.
Part No.
Description
Qty.

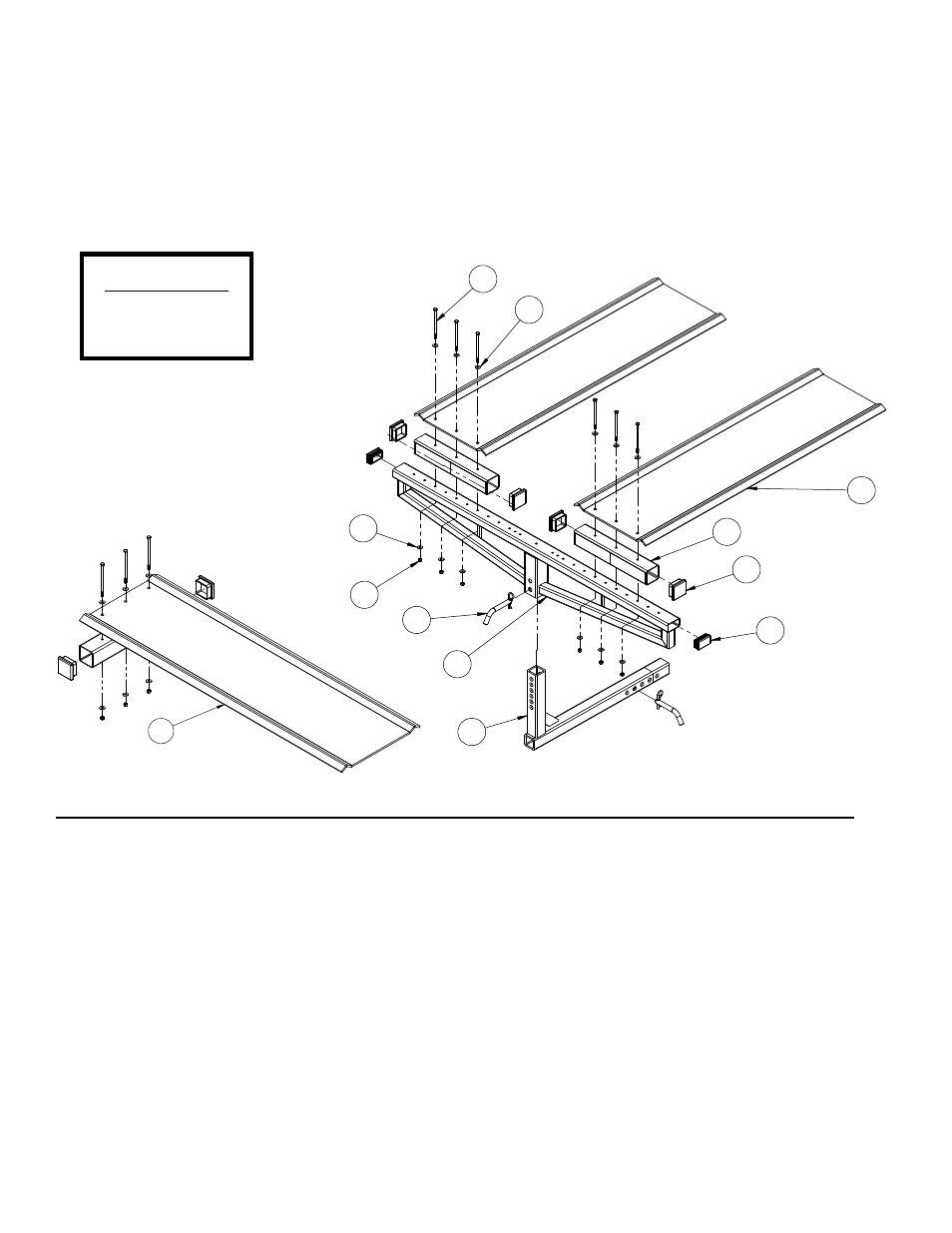

1..................... 61-6929 ................................. SC1200 Support Weldment .................................................. 1
2..................... 61-6931 ................................. SC1200 Receiver Hitch ........................................................ 1
3..................... 100-1292 ............................... SC1200 Aluminum Treadplate .............................................. 2
4..................... 107-3261 ............................... 2-1/2" Square Tube Spacer .................................................. 2
5..................... 200-1483 ............................... 5/8"Ø x 3” Eff. Pin with Clip ................................................... 2
6..................... 201-0896 ............................... 1/4"-20 x 5" Hex Head Bolt, Grade 5, ZP .............................. 6
7..................... 202-0102 ............................... 1/4"-20 Hex Nylon Nut, ZP .................................................... 6
8..................... 203-0001 ............................... 1/4" Flat Washer, ZP ........................................................... 12
9..................... 290-0502 ............................... 2-1/2" Square Black Plastic Cap Plug ................................... 4
10................... 290-0503 ............................... Black Plastic Cap Plug .......................................................... 2
Additional Kits Available:
11 ................... SC9059 ................................. TailGator™ Ramp Kit ............................................................ 1
8
9
10
4
3
5
8
7
2
6
1
11
The SC1200 has 6-1/2” vertical adjustment and 6” of horizontal distance. The treadplate distance can
adjust from a minimum of 23-1/2” to a maximum of 49”
