7 Installation and Startup |
Identifying the UPS

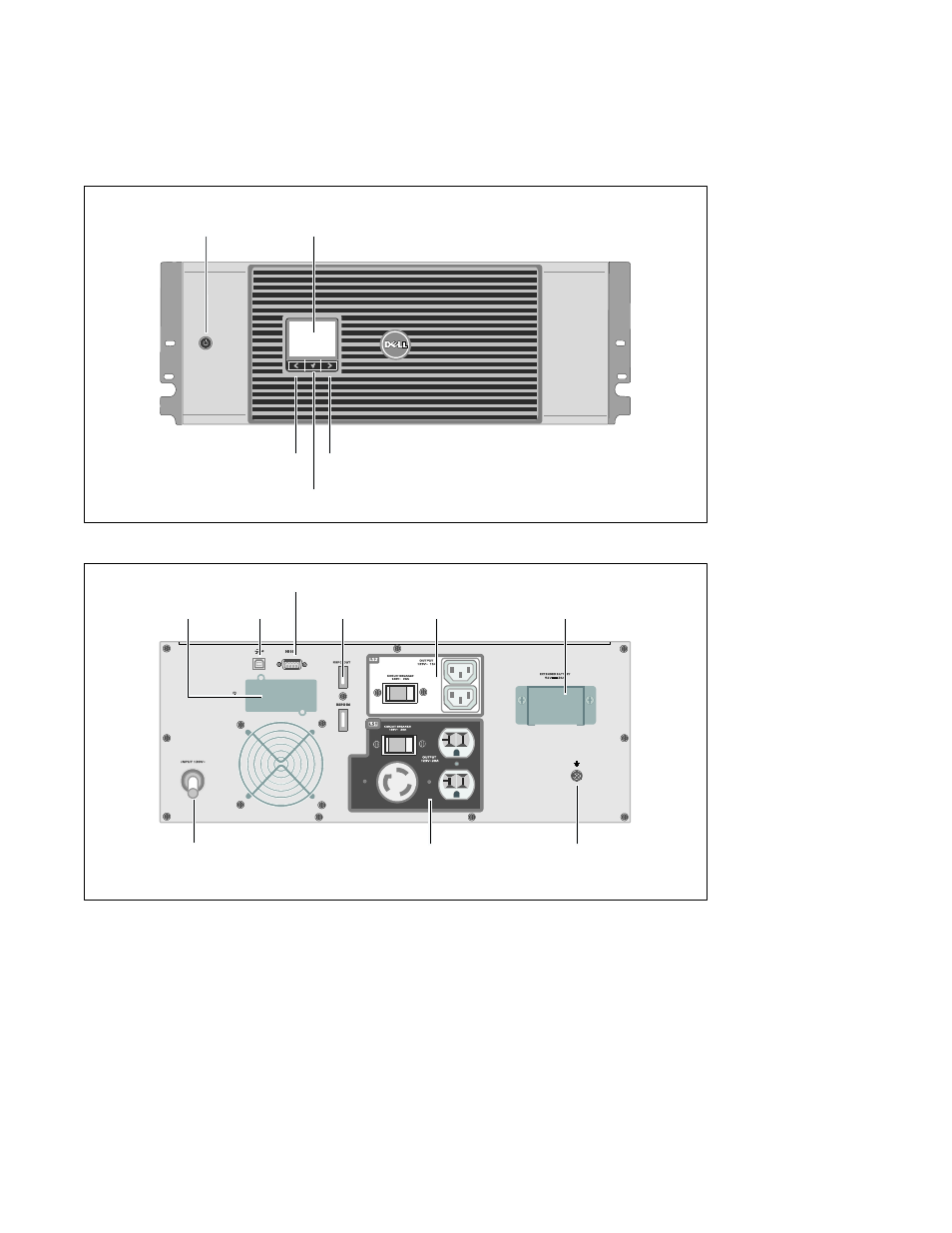

This section shows a front and rear panel of the Dell Online Rack UPS. Refer to the Dell Online Rack
UPS 2700W User's Guide for all rear panel details.
On/Off Button LCD Panel
Scroll Button (Down or Forward)
Select Button
Scroll Button (Up or Back)
Figure 1. The Dell Online Rack UPS Front Panel
UPS
Communication Bay
2m, L5-30P Input
Cord
USB Port
One L5-20 and Two 5-15/5-20
Receptacles
(Load Segment 1)
REPO Ports
RS-232 Port
Ground Screw
Two IEC 320-C13
Receptacles
(Load Segment 2)
EBM Connector
Cover/Strain Relief Bracket
Figure 2. UPS Rear Panel (2700W, 120V Shown)
