Media Base Setup Guide
About Your Media Base

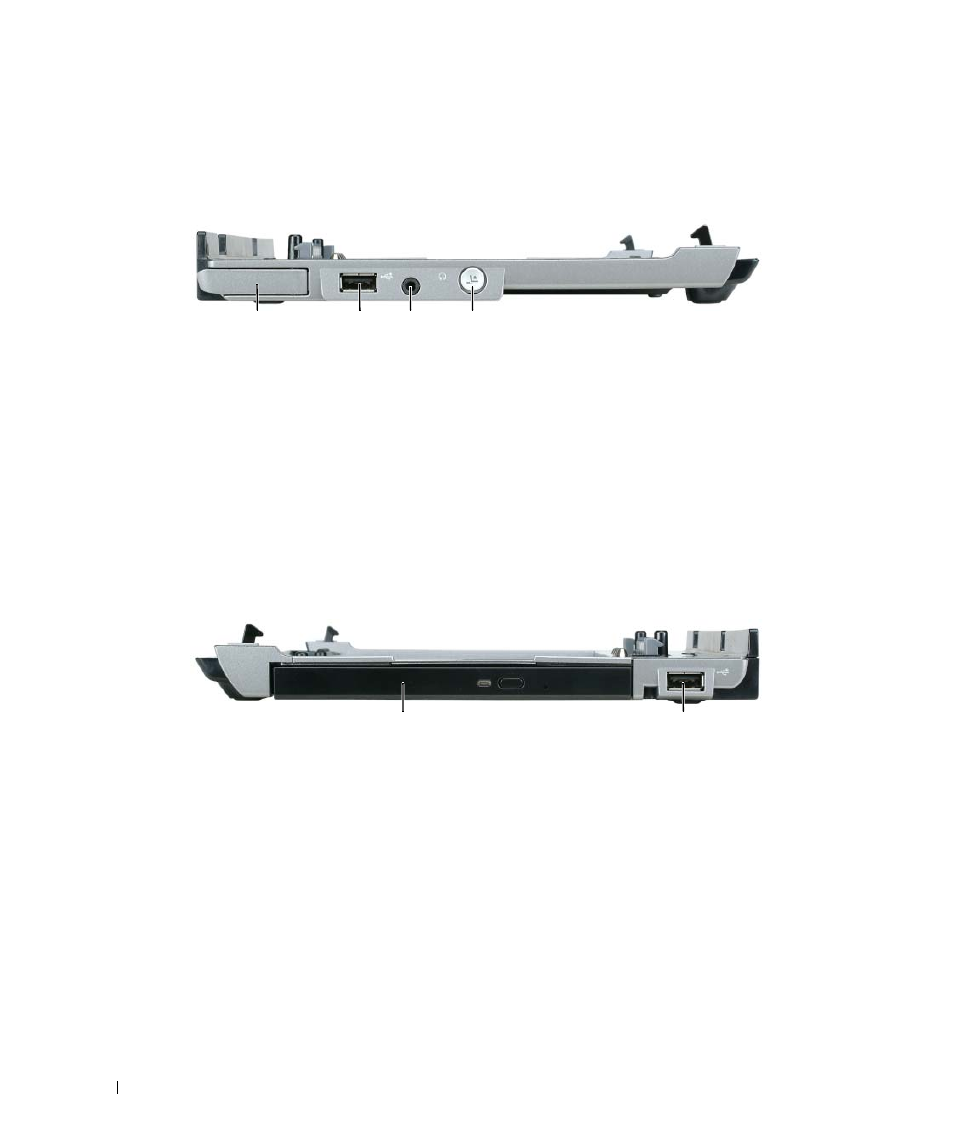

Left View
C O M P U T E R
R E L E A S E
L E V E R
—
Releases the computer from the media base if the media base is not secured by an
antitheft device.
U S B
C O N N E C T O R
—
The USB 2.0-compliant connector allows you to connect USB devices such as printers,
cameras, etc.
A U D I O
C O N N E C T O R
—
Lets you connect headphones and speakers.
U N D O C K
B U T T O N
—
Lets you undock your computer when your computer is operating.
Right View
O P T I C A L
D R I V E
—
Allows you to use CD and DVD media.
U S B
C O N N E C T O R
—
The USB 2.0-compliant connector allows you to connect USB devices such as printers,
cameras, etc.
1
computer release lever
2
USB connector
3
audio connector
4
undock button
1
optical drive
2
USB connector
1
2
3
4
1
2
