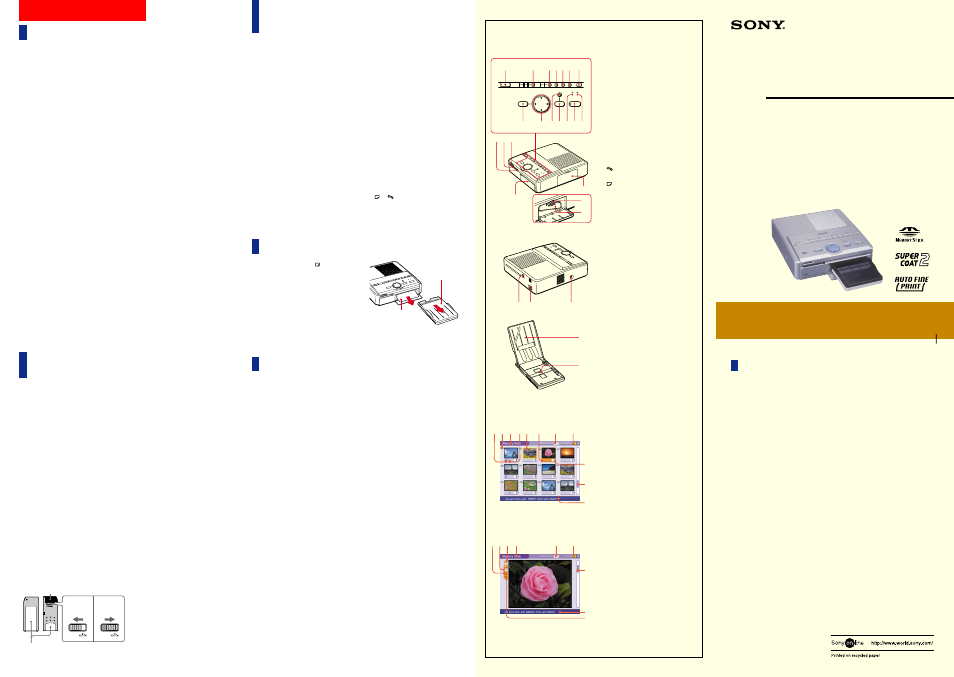

background image

3-205-182-13(1)

Digital Photo Printer

Operating Instructions – Software Guide/Additional

Information

This manual describes the additional information and the
installation and basic operations of the software supplied with
the Sony Digital Photo Printer DPP-SV55. First read
“Operating instructions – Basic Operations” and then read
this manual and retain it for future reference.

For advanced operation of the printer, also refer to “Operating
Instructions – Advanced Operations.”

Notice for users

LOCK

LOCK

Specifications

Printing system

Sublimation dye transfer printing (Yellow/
Magenta/Cyan 3 pass)

Resolution

403 (H) x 403 (V) dpi

Image processing

256 levels (8 bits for each Yellow/Magenta/
Cyan), approx. 16,770,000 colors

Printing size

152.4 (H) x 101.6 (V) mm (maximum, Post
Card Size, borderless) (6 x 4 inches)

Printing time

Approx. 90 seconds per sheet (Post Card
Size Paper)
Approx. 60 seconds per sheet (Small Size
Paper)
(excluding the time for data processing and
data transferring from the personal
computer or “Memory Stick” or PC card)

Input/output connectors

USB connector (1)
VIDEO OUTPUT connector (phono jack x 1)

1 Vp-p, 75 ohms (unbalanced),
sync negative

Slot

“Memory Stick” insertion slot (1)
PC card insertion slot (PCMCIA II) (1)

Compatible image file formats

JPEG: 4:4:4, 4:2:2, 4:2:0 (baseline JPEG)
BMP: 24 bits full color, Windows format
(Note that some versions of the file formats
may not be compatible.)

Maximum number of files to be handled

999 files

Print cartridge/Print Paper

See “Using the printing pack” of the
Operating Instructions – Basic Operations.

Power requirements

120 V AC, 60 Hz, 1.16 A

(for the US model)

220 - 240 V AC, 50/60 Hz, 0.62A

(for the models for other areas)

Power consumption (standby mode)

Approximately 1 W

Operating temperature

5 ˚C to 35 ˚C (41 ˚F to 95 ˚F)

Dimensions

Approx. 242 x 72 x 267 mm
(w/h/d, excluding protruding parts)
(9

5

/

8

x 2

7

/

8

x 10

5

/

8

inches)

(363 mm (14

3

/

8

inches) of depth when the

paper tray is installed.)

Mass

Approx. 2.1 kg (4 lb 10 oz)
(excluding the 0.1 kg (4 oz) paper tray)

Supplied accessories

See “Unpacking the printer” of the
Operating Instructions – Basic Operations.

Design and specifications are subject to
change without notice.

Pull out the
jammed paper
slowly.

Take out the
paper tray to
remove the
jammed paper.

Program © 2000 Sony Corporation
Documentation ©2000 Sony Corporation

All rights reserved. This manual or the software
described herein, in whole or in part, may not be
reproduced, translated or reduced to any
machine readable form without prior written
approval from Sony Corporation.
IN NO EVENT SHALL SONY CORPORATION
BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES,
WHETHER BASED ON TORT, CONTACT, OR
OTHERWISE, ARISING OUT OF OR IN
CONNECTION WITH THIS MANUAL, THE
SOFTWARE OR OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.

By breaking the seal of the envelope of the CD-
ROM package, you accept all the terms and
conditions of this agreement. If you do not accept
these terms and conditions, please return this
disk envelope unopened, along with the rest of
the package, immediately to the dealer where
you obtained it.

Sony Corporation reserves the right to make any
modification to this manual or the information
contained herein at any time without notice.
The software described herein may also be
governed by the terms of a separate user license
agreement.

Place the label here

Connector

Write enable
position

Write
protect
position

Additional Information

Precautions

On safety

• Operate the printer on 120 V AC, 60 Hz (for

the US model) or 220 to 240 V AC, 50/60 Hz
(for the models for other areas) only.

• Be careful not to set or drop any heavy

objects on the power cord, or to damage the
power cord in any way. Never operate this
printer with a damaged power cord.

• Should any solid object or liquid fall into

the cabinet, unplug the printer and have it
checked by qualified personnel before
operating it any further.

• Never disassemble the printer.
• To disconnect the power cord, pull it out by

the plug. Never pull the power cord itself.

• When the printer is not going to be used for

an extended period of time, disconnect the
power cord from the wall outlet.

• Do not handle the printer roughly.
• To reduce the risk of electrical shock,

always unplug the printer from the
electrical outlet before cleaning and
servicing the printer.

On installation

• Avoid placing the printer in a location

subject to:
– vibration
– high humidity
– excessive dust
– direct sunlight
– extremely high or low temperatures

• Do not use electrical equipment near the

printer. The printer will not work properly
in electromagnetic fields.

• The printer is designed to operate

horizontally. Never attempt to operate the
printer in a tilted position.

• Do not place heavy objects on the printer.
• Leave enough room around the printer so

that the ventilation holes are not blocked.
Blocking these holes may cause internal
heat build-up.

On moisture condensation

If the printer is brought directly from a cold
location to warm location or placed in an
extremely warm or humid room, moisture
may condense inside the unit. In such cases
the printer will probably not work properly
and may even develop a fault if you persist in
using it. If moisture condensation occurs, turn
off the power and do not use the printer for at
least one hour.

On transport

When you transport the printer, remove the
print cartridge, paper tray, the “Memory
Stick” or PC card from the printer and put the
printer and its peripherals in the original box
with the protective packaging.
If you no longer have the original box and
packing parts, use similar packing material so
that the printer will not be damaged while
transporting.

On cleaning

Clean the cabinet, panel and controls with a
soft dry cloth, or a soft cloth lightly moistened
with a mild detergent solution. Do not use any
type of solvent, such as alcohol or benzine,
which may damage the finish.

On restrictions on duplication

If duplicating documents with the printer, pay
special attention to the following:
• Duplication of banknotes, coins, or

securities is against the law.

• Duplication of blank certificates, licenses,

passports, private securities, or unused
postal stamps is also against the law.

• TV program, films, video tapes, others’

portraits or other materials may be
copyrighted. Unauthorized video printing
of such materials may infringe the
provisions of the copyright law.

About “Memory Stick” and
PC card

The printer can read and write “Memory
Stick” and PC card (PCMCIA ATA compatible
type II flash memory cards with a power
specification of 5V or 3.3/5V). By using a
commercially available PC card adaptor, you
can also use Smart Media and other types of
compact flash cards.

On “Memory Stick”

There are two types of “Memory Stick”:
general “Memory Stick” and “MagicGate
Memory Stick.” The “MagicGate Memory
Stick” is equipped with the MagicGate
copyright protection technology that uses
encryption technology. You can use both types
of “Memory Stick” with your printer.
However, because the printer does not support
the MagicGate standards, data recorded with
the printer is not subject to MagicGate
copyright protection.

To protect “Memory Stick” images

To prevent accidental erasure of important
image data, slide the write protect switch on
the “Memory Stick” to the write protect
position when you just view the images.
Only when you write, delete data, or format a
“Memory Stick,” slide it to the write enable
position.

Notes

•You cannot use the PC cards with the power

specification of 3V only.

•Do not insert other types of PC card into the

printer’s insertion slot. The printer may be
damaged.

•Do not drop, bent, or submit the “Memory Stick”

or PC card to external shock.

•Do not disassemble or modify the “Memory Stick”

or PC card.

•Avoid getting liquids on the “Memory Stick” or

PC card.

•Avoid using or storing the “Memory Stick” or PC

card in a location subject to:

– extremely high temperature such as the hot

inside of a car or the outdoors exposed to a
burning sun, or a place near a heater.

– direct sunlight
– high humidity
– corrosive substances
– excessive dust
– electrostatic or electronic noises
– magnetic fields

•Avoid touching the connector of the “Memory

Stick” or contacting it with a metal object.

•When attaching a label to the “Memory Stick” as

specified in the illustration, use the label supplied
for the “Memory Stick” only. Do not use any other
labels.

•When storing and carrying the “Memory Stick” or

PC card, keep it in its original case to ensure
protection of important data.

•Avoid removing the “Memory Stick” or PC card

from the insertion slot or turning off the power of
the printer while the printer is accessing the
“Memory Stick” or PC card. Otherwise, data may
be rendered unreadable.

• When using a compact flash card or Smart Media,

use a commercially available PC card adaptor that
is compatible with the card. Attach the card into
the adaptor and then insert it into the printer. For
how to install the card and adaptor, refer to the
operating instructions of the PC card adaptor.

•Avoid inserting or removing the compact flash

card or Smart Media into or out of the PC card
adaptor while the PC card adaptor is inserted in
the printer. The data may be rendered unreadable
or erased.

Troubleshooting

If you run into any problems using the printer,
use the following to solve the problem.
If the problem persists, consult your Sony
dealer.

Cannot operate the printer after the power
switch is turned on.

m Connect the AC power cord to an AC

outlet securely.

The television displays no images.

m Set the input selector of the television to

“VIDEO.”

m Connect the printer to the television

properly and turn them on.

m Insert a “Memory Stick” or PC card

securely. Check that images are recorded.

m Press INPUT SELECT to turn on the

proper indicator.

Cannot remove the print cartridge.

m Turn the printer off then on. After the

motor sound stops, try to remove the
cartridge.

Cannot print.

m Insert the correct set of print cartridge

and print paper.

m Check that the paper tray has paper.
m The thermal head may be overheated.

Leave the printer until the head cools
down and the printer resumes printing.

m Remove the jammed paper, if any.

An image in thumbnail list is not properly
displayed or printed.

m If the image is displayed but is not be

printed, the file for printing is damaged.

m If an image is not compatible with DCF

(Design rule for Camera File system), it
may not be printed with the printer even
if it is displayed on the PC monitor.

m Some types of PC card adaptor that is

not compatible with PCMCIA ATA
cannot be used with the printer.

The beeps sound.

m Check that you operate with the correct

procedures.

The

or

indicator is lit or an error

message is displayed.

m Follow the instructions on the screen.

If paper jams

If the print paper jams, the

paper error

indicator lights and an error message is
displayed. Printing stops. Turn off and on the
printer and remove the jammed paper from
the paper outlet or take out the paper tray to
remove the jammed paper.

Note

If you cannot remove the jammed paper, contact
your Sony dealer.

Identifying the parts

Printer

Front

1

POWER switch

2

INPUT SELECT button

Switches the input among “MEMORY
STICK,” “PC CARD,” or “PC.” (The selected
indicator lights.)

3

AUTO PRINT button

Selects the automatic printing of “ALL”
images or “DPOF” images. (The selected
printing indicator lights.)

4

MENU button

Displays the menu to change printer settings.

5

EFFECT button

Displays the menu to add effects to the
pictures.

6

CREATIVE PRINT button

Displays the menu to make creative prints.

7

SAVE button

Saves an image on a “Memory Stick” or PC
card.

8

Cartridge error indicator

9

PRINT button

0

Paper error indicator

qa

ENTER/PRINT QTY button

qs

CANCEL button

qd

Arrow (B/b/V/v) button

qf

PICTURE button

Switches the thumbnail list and preview
image.

qg

PC card eject button

qh

PC CARD insertion slot

qj

“MEMORY STICK” insertion slot

qk

Cartridge compartment lid

ql

Paper tray compartment lid

w;

Print cartridge eject lever

wa

Print cartridge

Rear

1

USB connector

2

AC IN connector

3

VIDEO OUT connector

Paper tray

1

lid

2

Partition

POWER

CANCEL

PRINT QTY

ENTER


PRINT

STICK

MEMORY

SELECT

INPUT

PRINT

AUTO

CREATIVE

CARD

PC

DPOF

EFFECT

ALL

MENU

SAVE

PRINT

PC

qg qh qj

ql

wa

w;

qk

1

2

3456 7

qf

qs qa q; 9 8

qd

1

3

2

2

1

1 2 3 4 5

6

7

qa

q;

9

8

qa

9

8

7

3

2

1

q;

4

DPP-SV55

2000 Sony Corporation

Printed in Japan

User Registration

To receive customer services, complete and
return the registration card included in your
package.

Any design data such as sample pictures
provided in this software cannot be modified or
duplicated except for the purpose of personal
use. Any unauthorized duplication of this
software is prohibited under copyright law.

Please note that unauthorized duplication or
modification of others’ portraits or copyrighted
work could infringe the rights reserved by right
holders.

Screen

Thumbnail list

Preview image

1

Print preset (DPOF) indication

Indicates the image is DPOF preset for
printing by a digital still camera.

2

Image number

3

“Memory Stick”/PC Card indication

Indicates the type of current media.

4

Protect indication

Indicates the image is protected by a digital
still camera.

5

Cursor (yellow frame)

Indicates the image with the cursor.

6

Selection (orange)

Indicates the image is selected.

7

Image quantity indication

Displays the quantity of all the images inside
the card when no image is selected.
Displays the quantity of the selected images
when an image is/images are selected.

8

Print cartridge indication

Indicates the type of print cartridge currently
loaded (S: Small Size).

9

Print quantity indication

Indicates the print quantity specified by
pressing ENTER button.

0

Scroll bar

Indicates the position of the image currently
displayed or selected in the total number of
images.

qa

Guide message

Displays the simplified instructions for the
next step.
