22
ASRock Z77 Extreme6 Motherboard
English
2.7 SLI TM and Quad SLI TM Operation Guide
This motherboard supports NVIDIA ® SLI TM and Quad SLI TM (Scalable Link Interface)
technology that allows you to install up to two identical PCI Express x16 graphics
cards. Currently, NVIDIA
® SLI TM technology supports Windows ® XP / XP 64-bit /
Vista TM / Vista TM 64-bit / 7 / 7 64-bit OS. NVIDIA ® Quad SLI TM technology supports
Windows ® Vista TM / Vista TM 64-bit / 7 / 7 64-bit OS only. Please follow the installation
procedures in this section.
Requirements
1. For SLI TM technology, you should have two identical SLI TM -ready graphics
cards that are NVIDIA ® certified. For Quad SLI technology, you should have
two identical Quad SLI ready graphics cards (dual-GPU on each graphics
card) that are NVIDIA certified.
2. Make sure that your graphics card driver supports NVIDIA ® SLI TM technology.
Download the driver from NVIDIA ® website (www.nvidia.com).
3. Make sure that your power supply unit (PSU) can provide at least the
minimum power required by your system. It is recommended to use NVIDIA ®
certified PSU. Please refer to NVIDIA ® website for details.
2.7.1 Graphics Card Setup
2.7.1.1 Installing Two SLI TM -Ready Graphics Cards

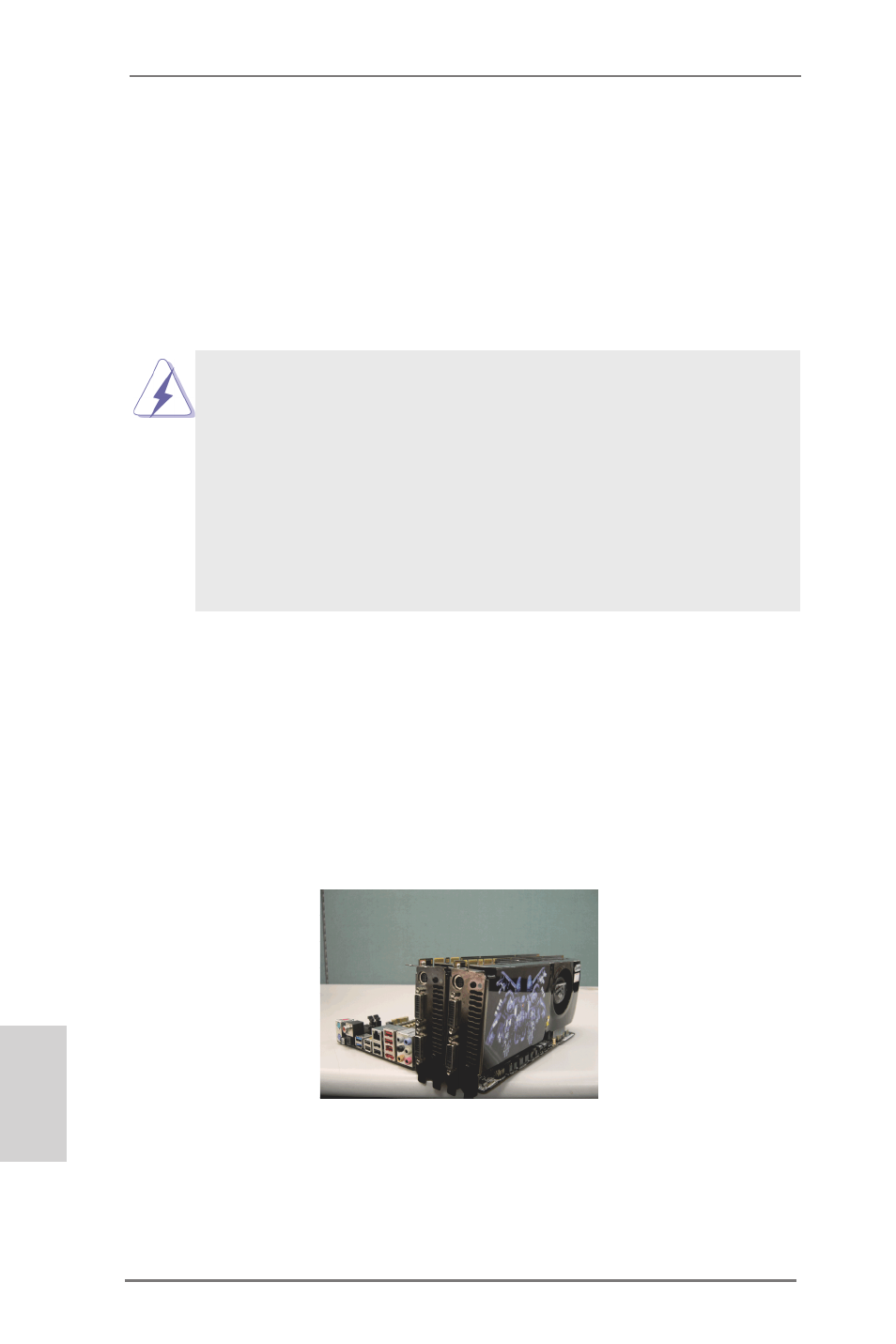

Step 1. Install the identical SLI TM -ready graphics cards that are NVIDIA ® certified
because different types of graphics cards will not work together properly.
(Even the GPU chips version shall be the same.) Insert one graphics card
into PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that
the cards are properly seated on the slots.
Step2. If required, connect the auxiliary power source to the PCI Express
graphics cards.
