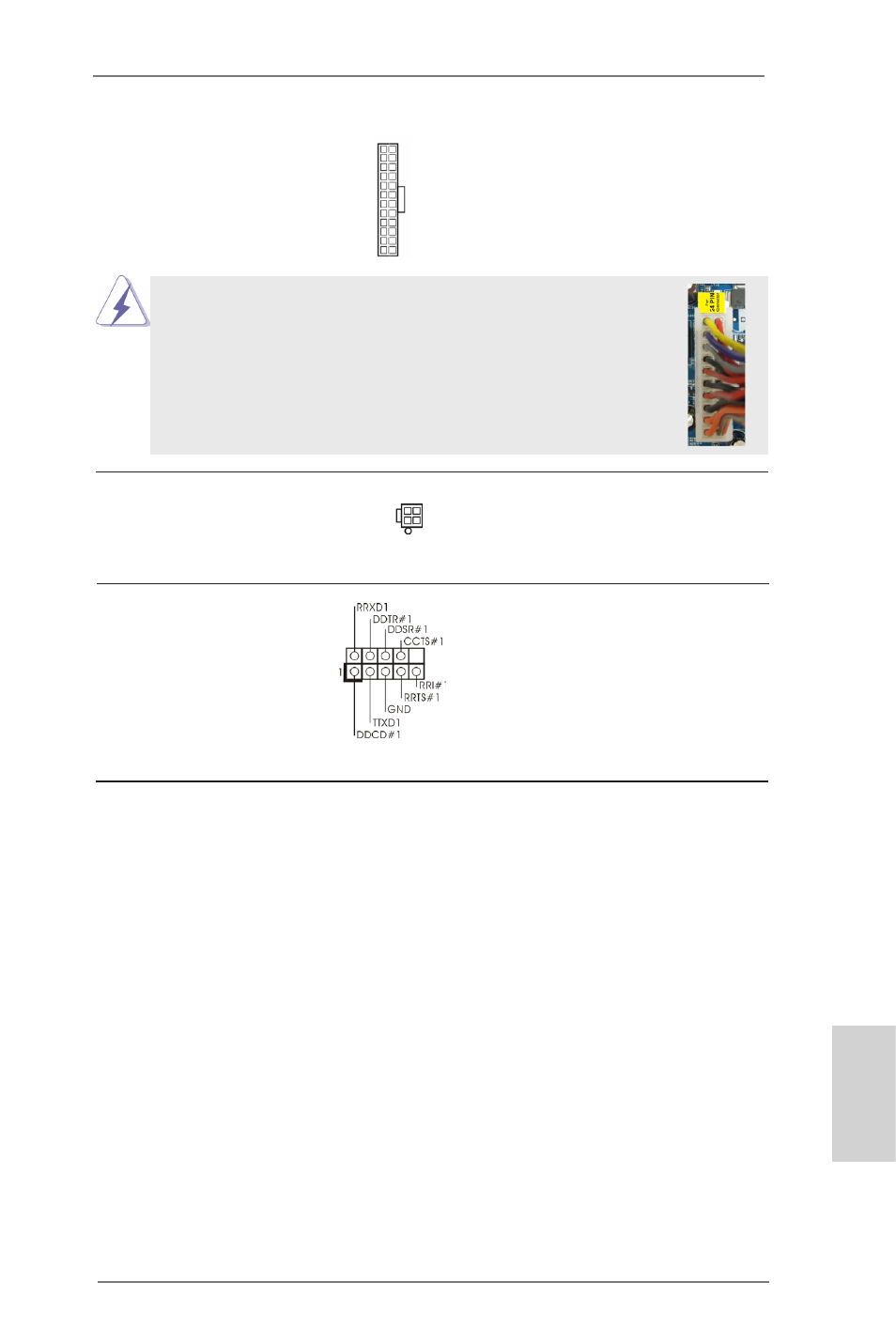

Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
20-Pin ATX Power Supply Installation
12
1
24
13
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.2 No.21)
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.2 No. 7)
12
1
24
13
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1) power supply to this connector.
(see p.2, No. 1)
2.11 Installing Windows ® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP /
XP 64-bit With RAID Functions
If you want to install Windows ® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP / XP 64-bit
on your SATA / SATAII HDDs with RAID functions, please refer to the document at
the following path in the Support CD for detailed procedures:
..\ RAID Installation Guide
2.10 Driver Installation Guide
To install the drivers to your system, please insert the support CD to your optical
drive first. Then, the drivers compatible to your system can be auto-detected and
listed on the support CD driver page. Please follow the order from up to bottom side
to install those required drivers. Therefore, the drivers you install can work properly.
