ACU-RITE SENC 50 - Manual (Page 16)

Digital Differential
Analog Differential
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9
White w/Grn Stripe & Brown Green Yellow Orange Red N/C Black Blue Violet
Ground Channel Channel Channel Channel N/C Vcc, + 5.0 Channel Channel
A+ A- B+ B- ± 0.1 VDC R+ R-
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9
N/C Green Yellow Pink Red White Black Gray Brown
Acu-Rite Companies Inc.
14

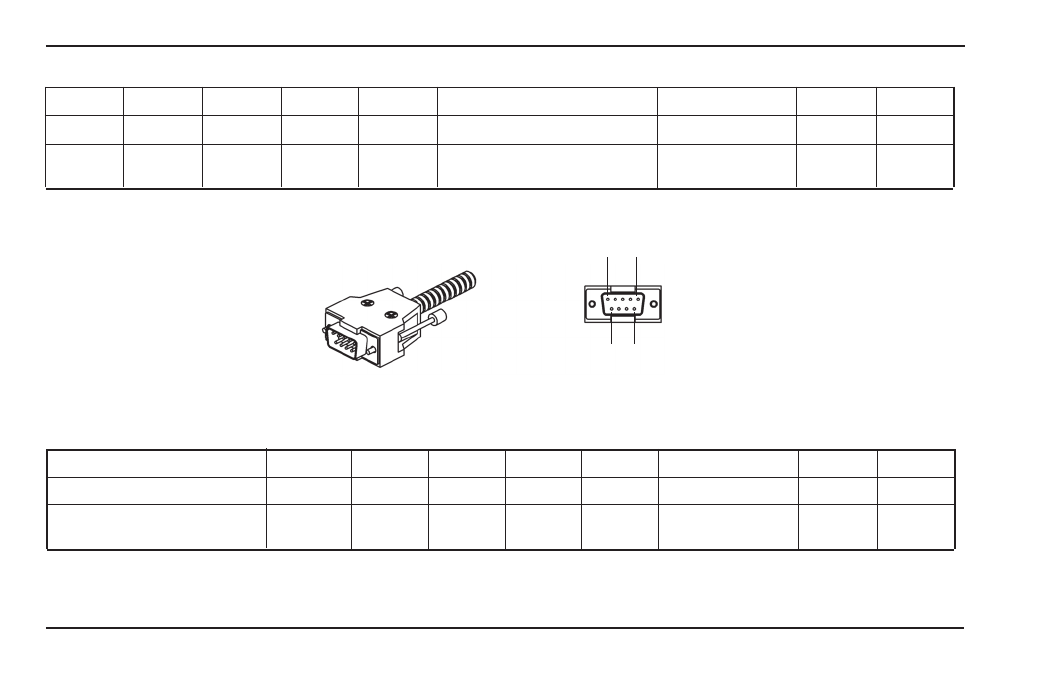

Output Signals and Pin-Outs SENC 50
N/C Channel Channel Channel Channel Ground Vcc, + 5.1 Channel Channel
A+ A- B+ B- ± 0.1 VDC R+ R-
1
9 6
5
