Setup

DRO 200M

Setup

The

SETUP

key lets you change the system parameters. Some of these parameters

are job related, meaning that they may change from job to job. Others are
machine related and should be set as part of the installation. The machine-related

parameters can be accessed by pressing:

Use the

key to move from one parameter to the next. After the last

parameter, the

key ends the setup process and saves any changes. Use the

CLEAR

key to move back to a previous parameter.

Some parameters have choices. Use the

key to cycle through the available

choices.

At any time during setup, pressing the

SETUP

key will end the setup process and

save the changes.

Machine-Related Setup Parameters

Count Direction

This determines which way is positive. Move each axis in the positive count
direction. The display will show a 1 or a 2 depending on count direction. You can
also change the count direction by pressing the

key.

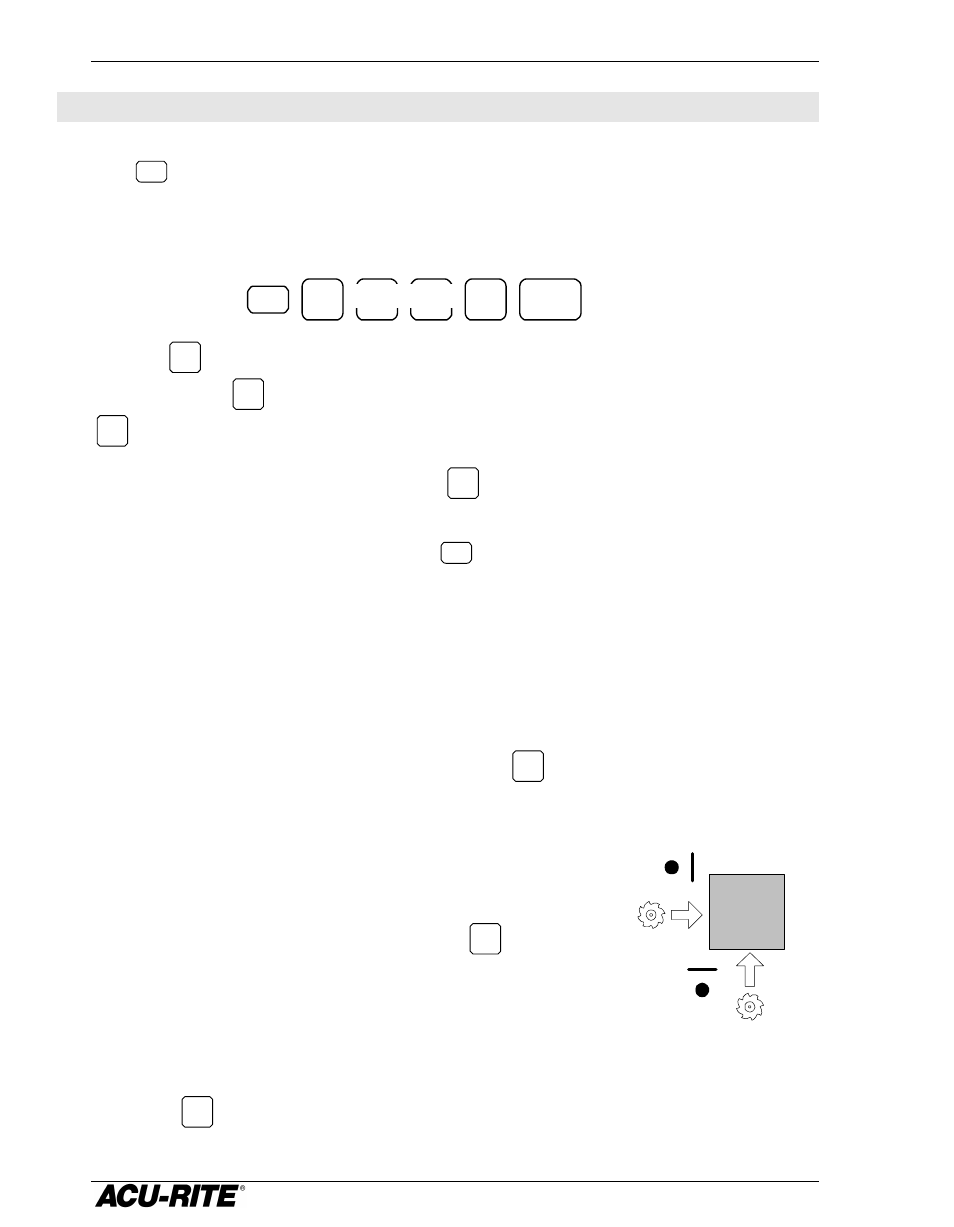

Tool Offset Direction

Move each axis in the direction that will make the tool
edge contact a workpiece as shown here. The display
will show a 1 or a 2 depending on offset direction. You
can also change directions by pressing the

key.

Encoder Resolution

Move each encoder until the readout senses and
displays the resolution. You won’t have to move more than two inches. For
encoders without Position-Trac, you need to enter the scale resolution. You can
press the

key to select from common choices, or you can use the keypad to

enter the resolution directly.

SETUP

ENTER

Access Code
