Acura Embedded AcuTab-W - Manual (Page 4)

Step1 Step3
Step2 Step4

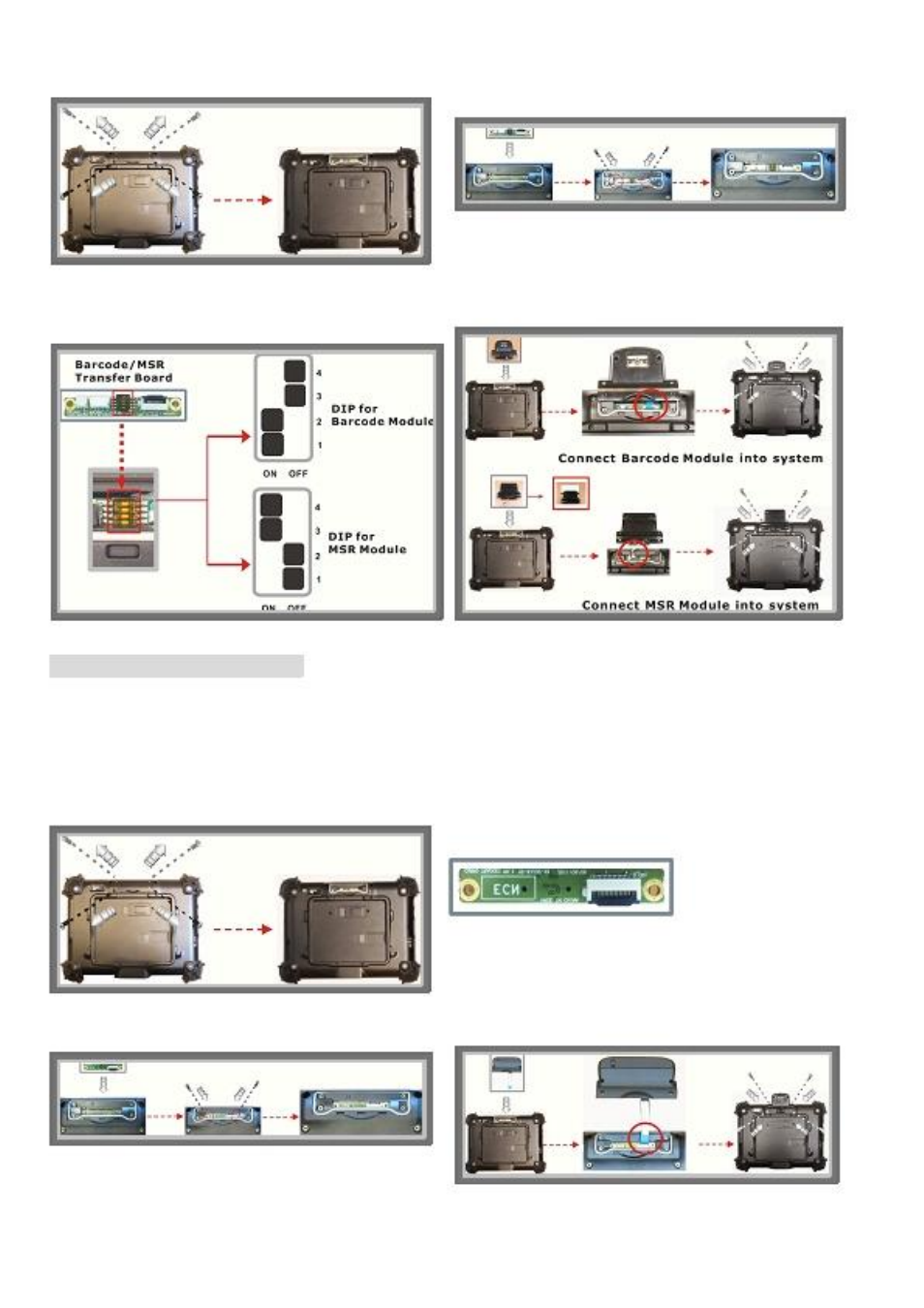

Installing Tracker Module:
Your AcuTab 2 System is designed with equipped the optional Tracker module, before installing this module on the top
side of the system, please remove the screws previously(illustrated in the following graphics as indicatedstep1).
Then screw the transfer board into the main board (illustrated in the following graphics as indicatedstep2), and
Connect the Tracker module to the transfer board, and screw this module to the system. (illustrated in the following
graphics as indicatedstep3).
Step1 Tracker Transfer Board
Step2 Step3
