SECTION 2—OPERATION
Part No 1148139
13
MA90 and MA95 Series Mattresses

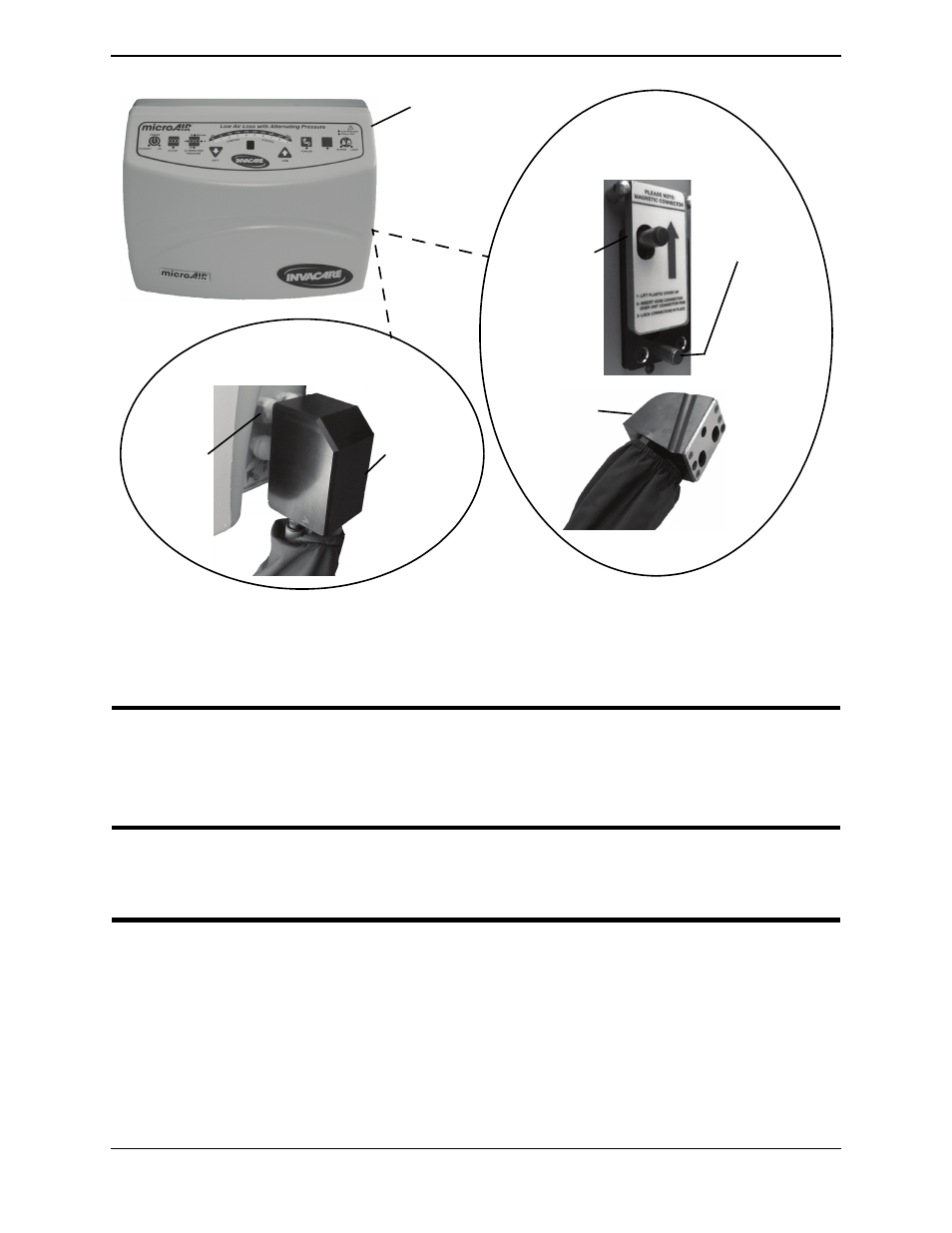

FIGURE 2.3 Connecting the Hose
Connecting the Power Cord
ƽ WARNING
DO NOT alter plug to fit a non-conforming outlet. Instead, have an electrician
install a properly grounded outlet. Failure to use the correct plug and outlet can
result in a potential safety hazard.
CAUTION
Ensure that the power cord of the control unit is not pinched, or has any objects placed
on it, and also ensure it is not located where it can be stepped on or tripped over.
1. Examine the hospital grade power cord supplied with the control unit.
2. Perform one of the following:
• If the plug is damaged ‐ Call your supplier for a replacement hospital grade cord.
• If the plug is not damaged ‐ Plug the end of the supplied hospital grade power cord
into the power outlet on the side of the control unit.
3. Plug the other end of the plug into a properly grounded outlet on the wall.
NOTE: Once the unit is plugged in, an AMBER LED on the control unit is lit indicating that the
system is in STAND BY mode.
Connector
Cover
Control Unit
Connectors
MA95Z,
MA95ZB42
and
MA95ZB48
Hose
Connector
DETAIL “A” - MA90Z
CONNECTOR
Control
Unit
DETAIL “B” - MA95Z
CONNECTOR
MA90Z,
MA90ZB42
and
MA90ZB48
Hose
Connector
Tab
