Hold time *1 0 to 30 sec (In 0.5-sec steps)
Ramp-down time *1 0 to 3 sec (In 0.5-sec steps)
Contraction *1 1 to 999 times
Available Channels: All
*1: May be set only in Independent, Simultaneous, or Alternate mode.
*2: This frequency to be set only in Burst mode.
TENS Mode
TENS Waveform

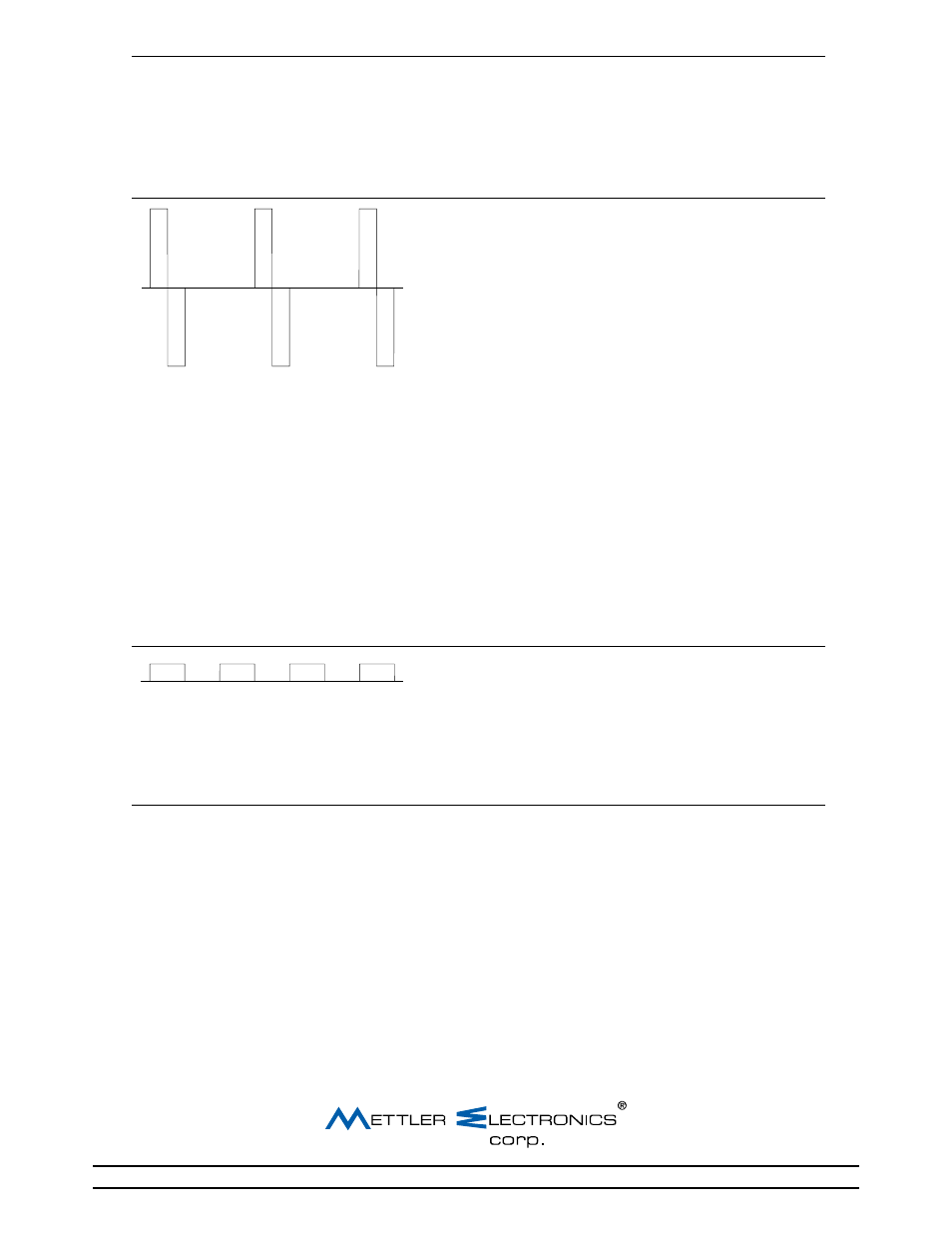

Waveform Type: Biphasic square
Polarity: None
Maximum Voltage: 50 V (Peak value, 500Ω load)
Current: 0 –100 mA peak, 500Ω load
Phase Duration: 50 to 300 μs (In 10-μs steps)
Frequency: Constant： 0.5 to 250 Hz
Burst: 100 Hz (Fixed)
Sweep： 1 to 250 Hz
Independent, Simultaneous,
Alternate: 20 to 250 Hz
Frequency Modulation: Constant and Sweep
Burst frequency *2 0.5 to 7 Hz (0.5, 0.7 Hz,
1 to 7 Hz (In 1-Hz steps)).
Available Amplitude
Modulation Options:
Burst, Independent, Simultaneous,
Alternate
On-time *1 1 to 30 sec (In 1-sec steps)
Off-time *1 1 to 99 sec (In 1-sec steps)
Ramp-up time *1 0 to 3 sec (In 0.5-sec steps)
Hold time *1 0 to 30 sec (In 0.5-sec steps)
Ramp-down time *1 0 to 3 sec (In 0.5-sec steps)
Contraction *1 1 to 999 times
Available Channels: All
*1: May be set only in Independent, Simultaneous, or Alternate mode.
*2: This frequency to be set only in Burst mode.
Microcurrent Mode
+
-
Microcurrent Waveform
Waveform Type: Mono- or Bi-phasic square
Polarity: Plus, minus or both
Maximum Voltage: 0.4 V (Peak value, 500Ω load)
Current: 0 to 750 μA peak, 500Ω load
Phase Duration: Duty fixed at 50%
Frequency: 0.3 to 400 Hz
Available Channels: All
Direct Current Mode
Waveform Type: Continuous DC
Polarity: Plus or minus
Maximum Voltage: 10 V (500Ω load)
Current: 0 to 20 mA peak, 500Ω load
Available Channels: All
