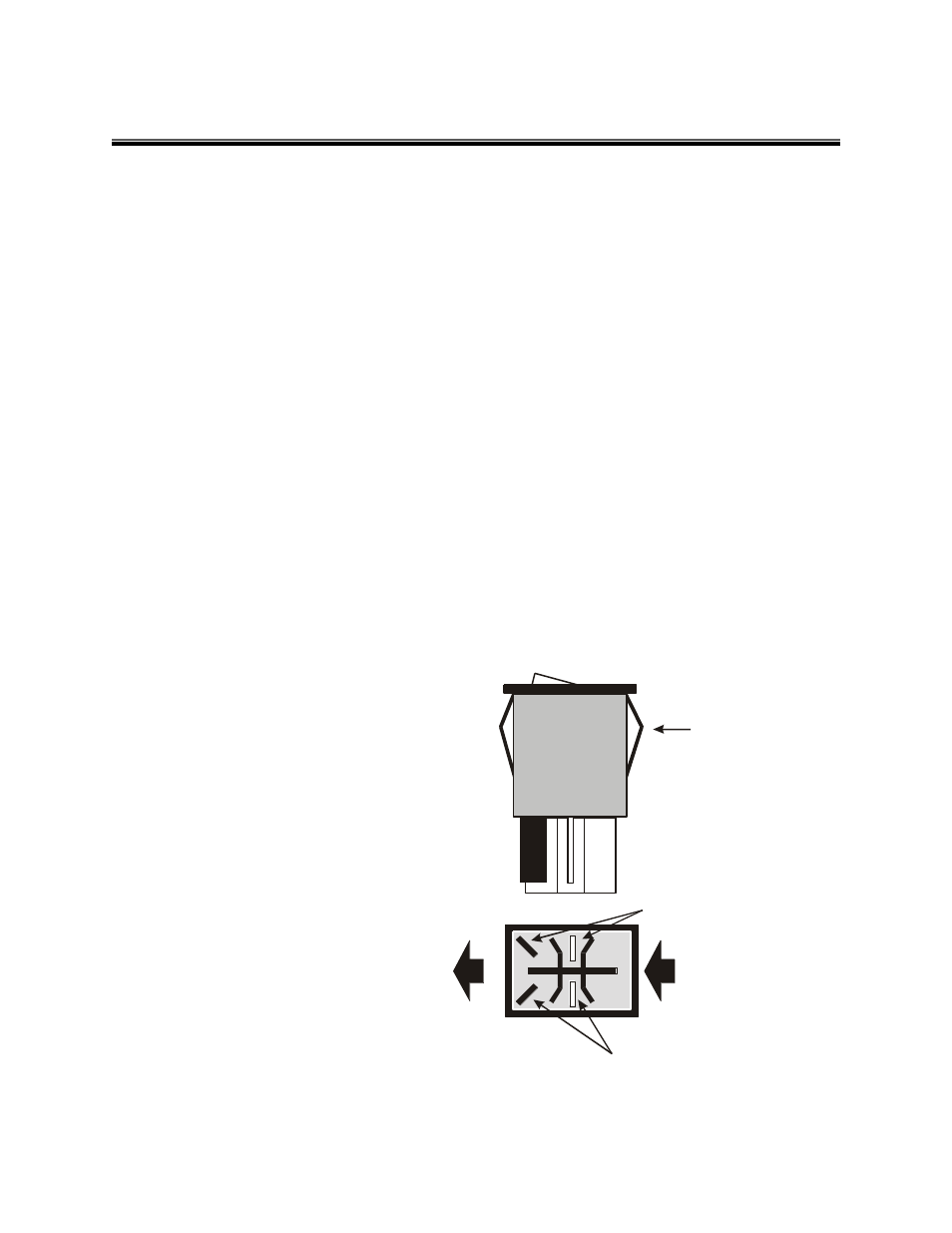

R ep lacin g the O N /O F F S w itch
W riting on
TO P
W H IT E W IR E S
B LA C K W IR E S
F R O M
P O W E R S U P P LY
T O C IR C U IT
B O A R D
Tools R eq uired:
Pliers
C aution: To avoid electric shock unplug the unit before beginning this
procedure.
1. Turn the P ow er S w itch O FF and unplug unit from w all outlet.
2. R em ove the C ontrol Box Cover. (5 Phillips Screw s)
3. U nplug the the 2 w hite and 2 black w ires from the back of the
O N /O FF sw itch.
4. U se the pliers to squeeze the fastening clips and push the sw itch out.
5. Press the new O N /O FF sw itch into position.
6. Plug in the W H ITE and BL A C K w ires as indicated above.(See
illustration)
7. R eplace the cover.
FA S TE N IN G
C LIP S
Toll F re e 80 0 .2 7 3.5 2 3 3 6 1 4 .87 1 .1 4 70 Fa x : 61 4 .8 7 1.1 4 7 0
To:_ _ _ __ _ _ _ __ _ _ _ __ _ _ _ _ __ _ _ _ __ _ _ _ _ __ _ _ _ __ _ _ _ __ _ _ _ _
C o m p a ny :__ _ _ _ __ _ _ _ _ __ _ _ _ __ _ _ _ __ _ _ _ _ __ _ _ _ __ _ _ _ _ __
F ax :_ __ _ _ _ _ __ _ _ _ __ _ _ _ _ __ _ _ _ __ _ _ _ __ _ _ _ _ __ _ _ _ __ _ _ _ _
1 /9 /0 3 LM
ON / OFF SWITCH REPLACEMENT INSTRUCTIONS
TOOLS REQUIRED:
 On / Off Switch — Reorder No. 1507
 Pliers
Caution:
To avoid electric shock unplug the unit prior to beginning this procedure.
INSTRUCTIONS:
Turn the Power Switch off and unplug unit from the wall outlet.
Remove the Control Box Cover. (5 Phillips Screws or 4 Phillips Screws for newer models).
Unplug the two (2) white and two (2) black wires from the back of the On/Off Switch.
Use the pliers to squeeze the fastening clips and push the switch out.
Press the new On/Off Switch into position.
Plug in the white and black wires as indicated (see illustration).
Replace the Control Box Cover.
