Appendix C - Mechanical Installation
56
Closing the HandPunch
Before closing the HandPunch, ensure dip switches 4 and 5 are OFF (refer to Figure 12-8
on page page 53). Clear all dust and debris away from the HandPunch. With the wall mount
latch in the unlocked position, swing the body of the HandPunch up and lock the latch into
place with the key provided with the HandPunch (see Figure 12-9).
Dust and debris surrounding the HandPunch can drastically affect the terminal’s
operation. It is important to ensure the HandPunch is free from dust and debris before
closing the terminal.
Do not force the HandPunch onto the wall mount latch when the latch is in the locked
position.
No
Recognition Systems In
c.
LOCK
K e y
L a t c h
Wa l l P l a t e
K e y
L a t c h
Wa l l P l a t e
U n l o c k e d P o s i t i o n
L o c k e d P o s i t i o n

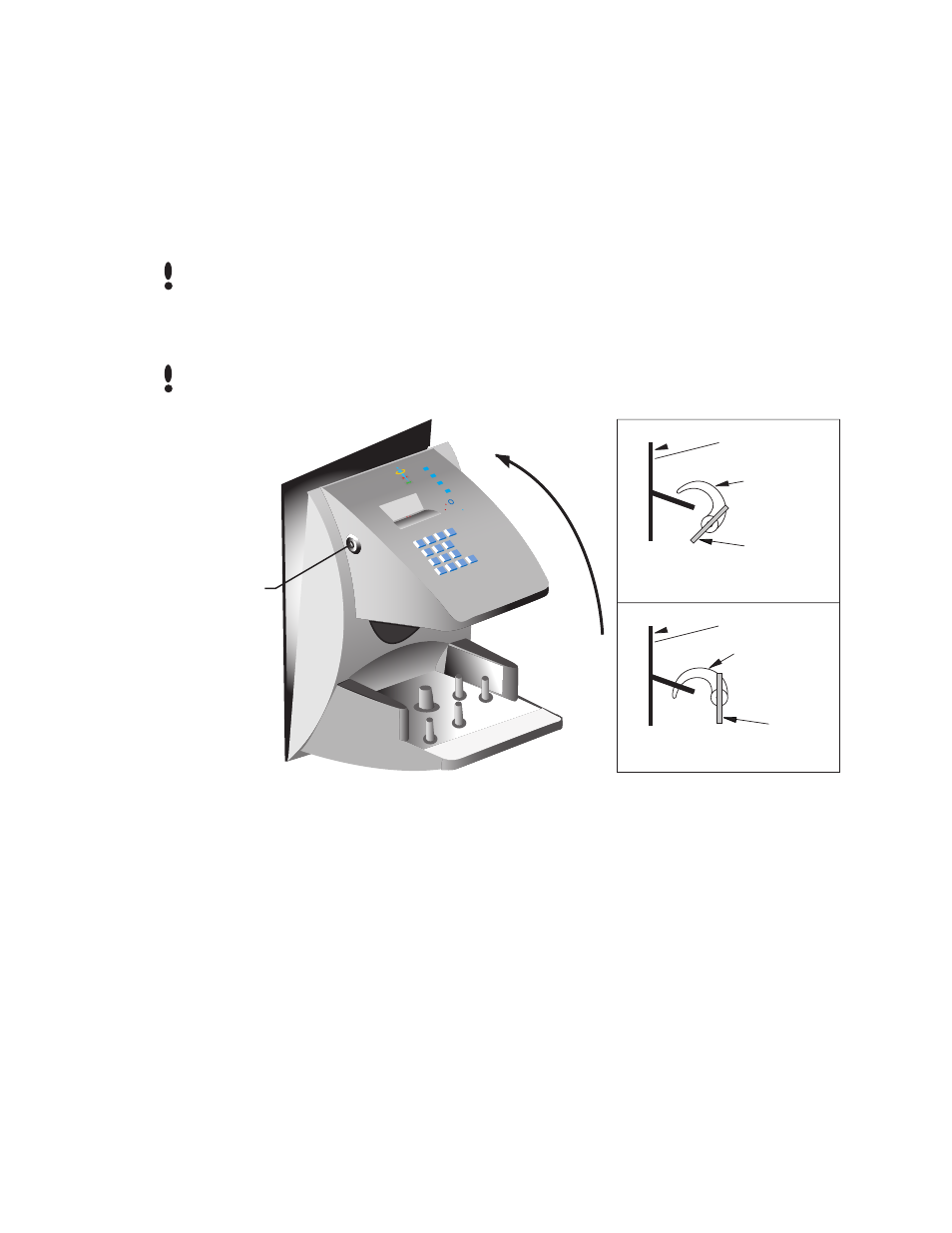

Figure 12-9: Closing the HandPunch
NOTE
NOTE
