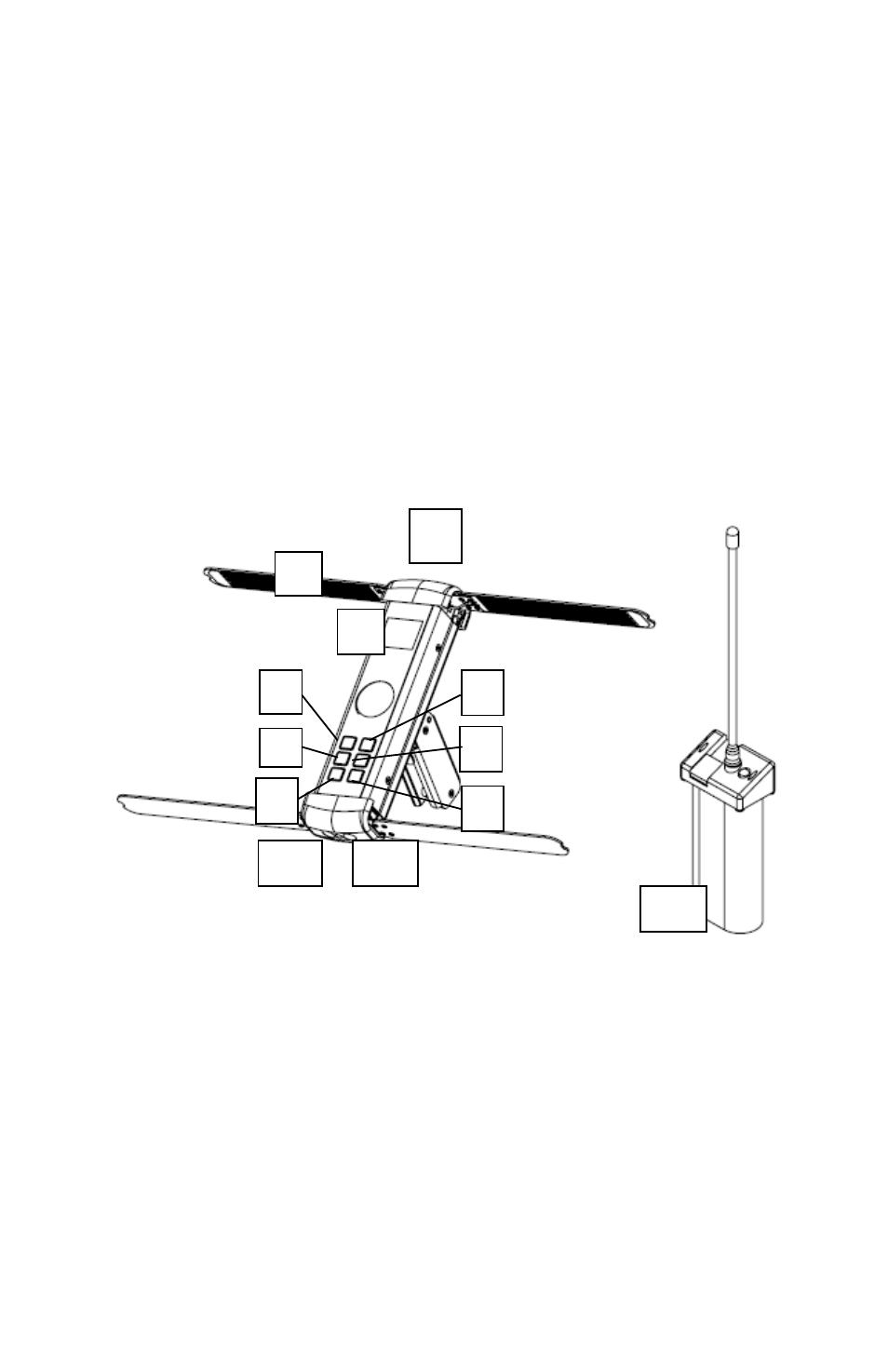

5. Direction Finder and test beacon features
1.
Antenna elements
2.
External antenna connector
3.
LCD display
4.
SELECT/ ENTER button
5.
MENU button
6.
UP button
7.
DOWN button
8.
ON/ OFF button
9.
NUMBERS/ MICRO button
10.
External headphone jack
11.
External 12VDC power jack
12.
Mini B™
2
Test/Training beacon
1
2
3
4
6
8
5
7
9
10
11
12
Figure 2
12
