KD 9258
19” 1U Rackmount 8 ports KVM console
LCD
CHAPTER 2 INSTALLATION
2-1 HDB15 Installation
On the back of the KVM switch, the 8 PC ports has a HDB15 type connector. Each cable that comes
with the switch has a 3-in-1 connector at one end and and a single HDB15 male connector at the
other end. Plug the single connector end of the cable into the KVM PC port, and then plug the other
end of cable to a PC VGA port.

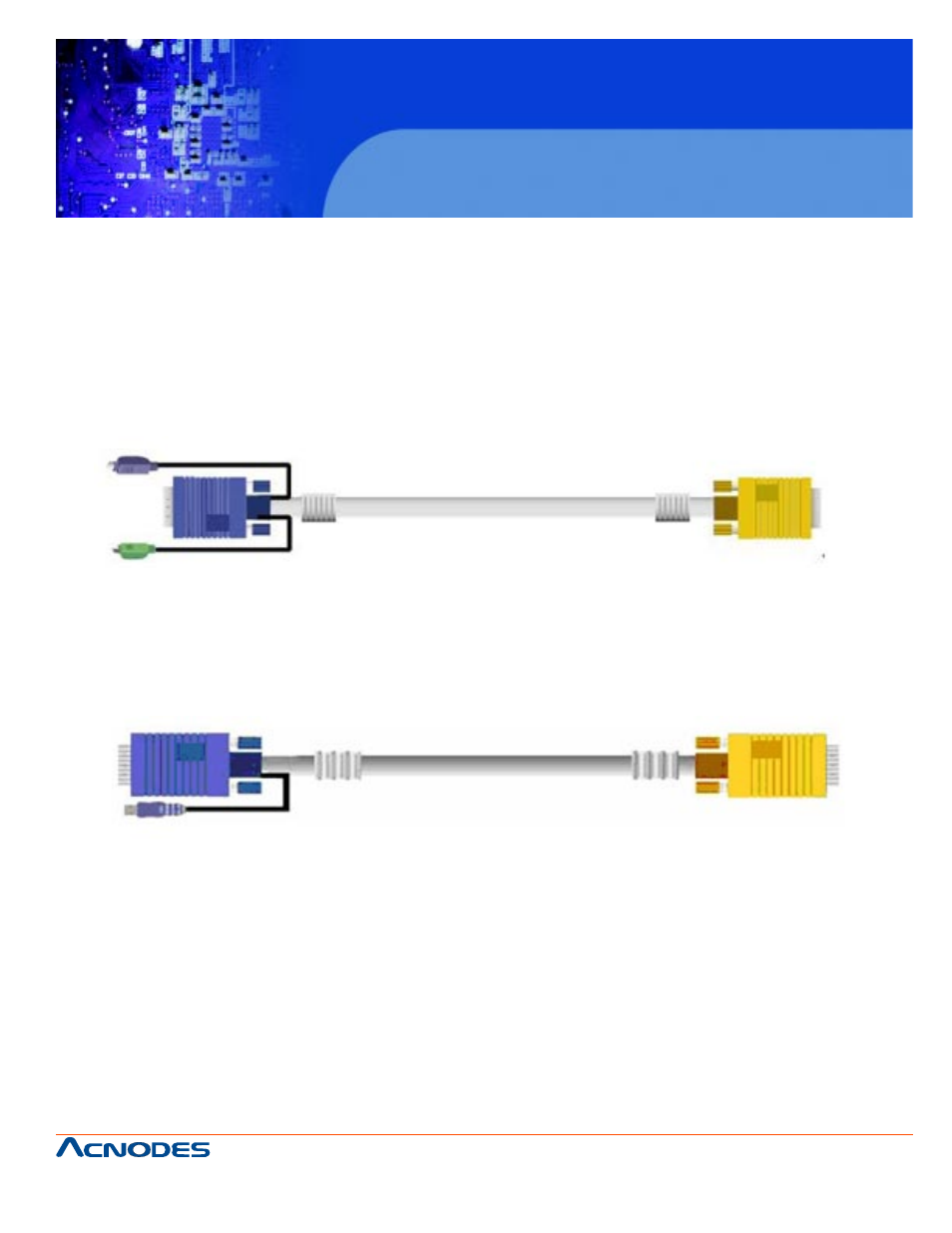

Figure1. 3-in-1 DB15 PS2 cable
1. PS/2 computer-- plug in the PS/2 mouse connector to the computer mouse port, then the PS/2
keyboard connector to computer keyboard port.
Figure2. 3-in-1 DB15 USB cable
2. USB computer-- plug in the USB connector to the computer USB port. This single USB port can
handle both keyboard and mouse data.
