Acclaim Lighting DD-6 - Manual

1. Power Switch -
4. DMX Output -
This switch turns on and off the main power.
2. DMX Output/ W Driver -
3. Link Out / Terminate selector -
5. DMX Input -
6. Fuse -
7. Power Input -
The six DMX output channels are completely electronically isolated and each
features an independent driver that boost the DMX signal.
These jacks are used to receive an incoming DMX signal.
F1A 250V 5x20mm
AC100-240V~50/60Hz,1A Max.
This switch is primarily meant for troubleshooting. When the switch is
in the "Terminate" position, DMX output(4) is turned off and you can not link any more units. When the switch
in the "Link Out" position, this unit allows you link a second unit.
These jacks are used for linking a second unit.
Product Descriptions
Technical Specifications
Power Input
DMX Connectors
Fuse
Dimensions
Weight ........................................................................................................AC100-240V~50/60Hz,1A Max.
.................................................................................................. 3-pin and 5-pin XLR sockets
...................................................................................................................................... F1A 250V 5x20mm
................................................................................................................................482x135x42mm
..................................................................................................................................................... 2.25Kg
This is a 6 channel DMX booster with one DMX input and 6 DMX outputs. This unit takes the incoming DMX
signal and splits the signal into six separate output channels. Each output channel and the input channel are
completely electronically isolated from each other, all six output channels have independent output drivers to
boost the DMX signal. In addition, a Link out/Terminate selector is used for secure linking when you intend to
terminate DMX signal.
User's Instruction
1. This apparatus must be earthed.
2. To prevent fire or shock hazard, do not expose this product under a high temperature or humid area.
3. This product is intended for indoor use only.
4. Replace the fuse with the same type.
Warning!!!
DD-6
6 Way DMX Distributor

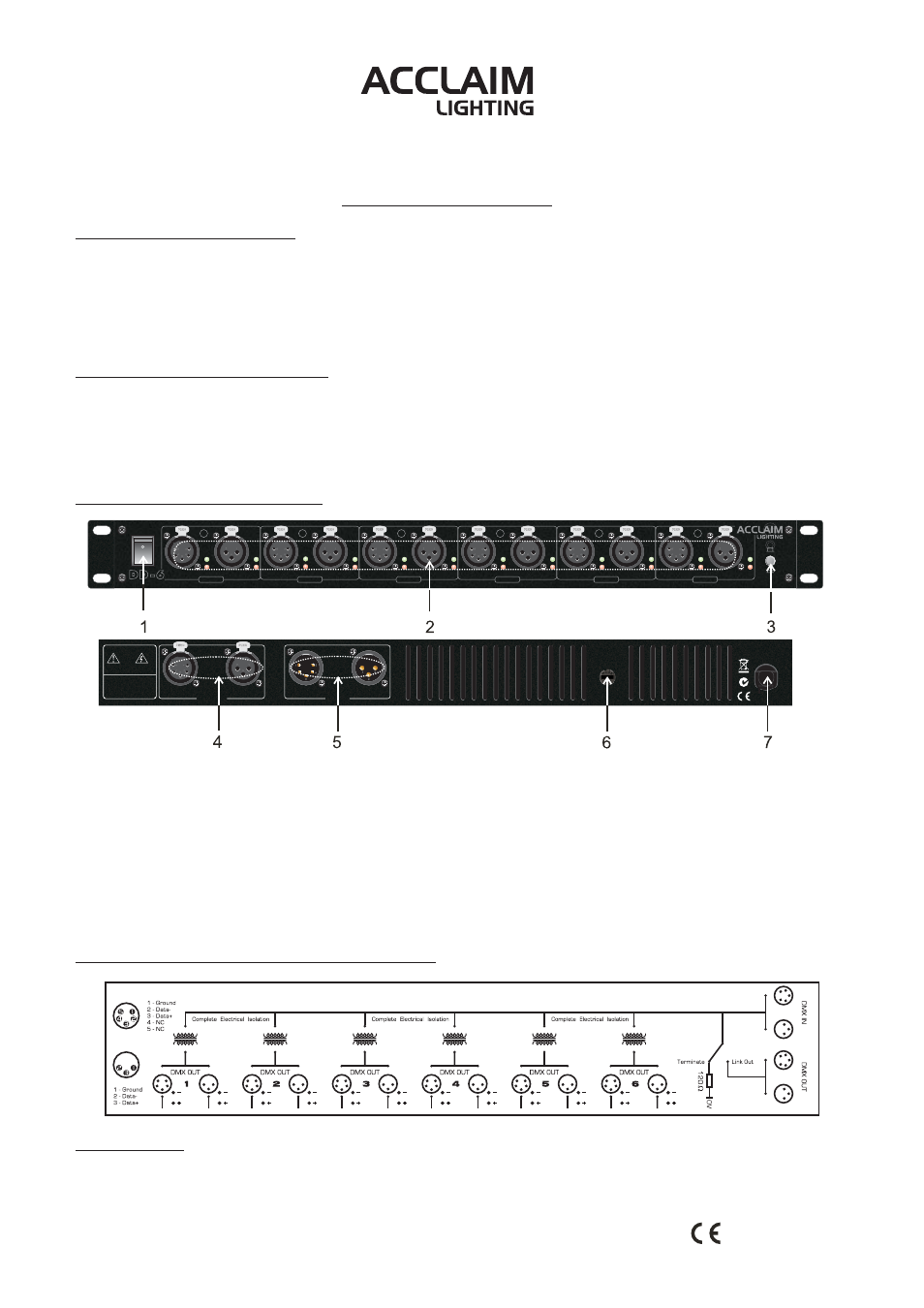

Controls And Functions
Internal Wiring Schematic Diagram
POWER
Link Out /
Terminate
2 3 4 5 6 1
DMX OUT DMX OUT DMX OUT DMX OUT DMX OUT DMX OUT DMX OUT 6 Way DMX Distributor
CAUTION!
Risk of Electric Shock
DO NOT OPEN
Ne pas ouvrir. Risque
de choc electrique
Warning:This apparatus
must be earthed
DMX OUT DMX IN
Fuse
F1A 250V
5x20mm
Made in PRC
Power Input:
AC 100-240V~ 50/60Hz,
1A Max.
24-004-2705-00
Rev1.0
