Acclaim Lighting DD-6 WM PRO User Manual
User's instruction, Product descriptions technical specifications, Warning

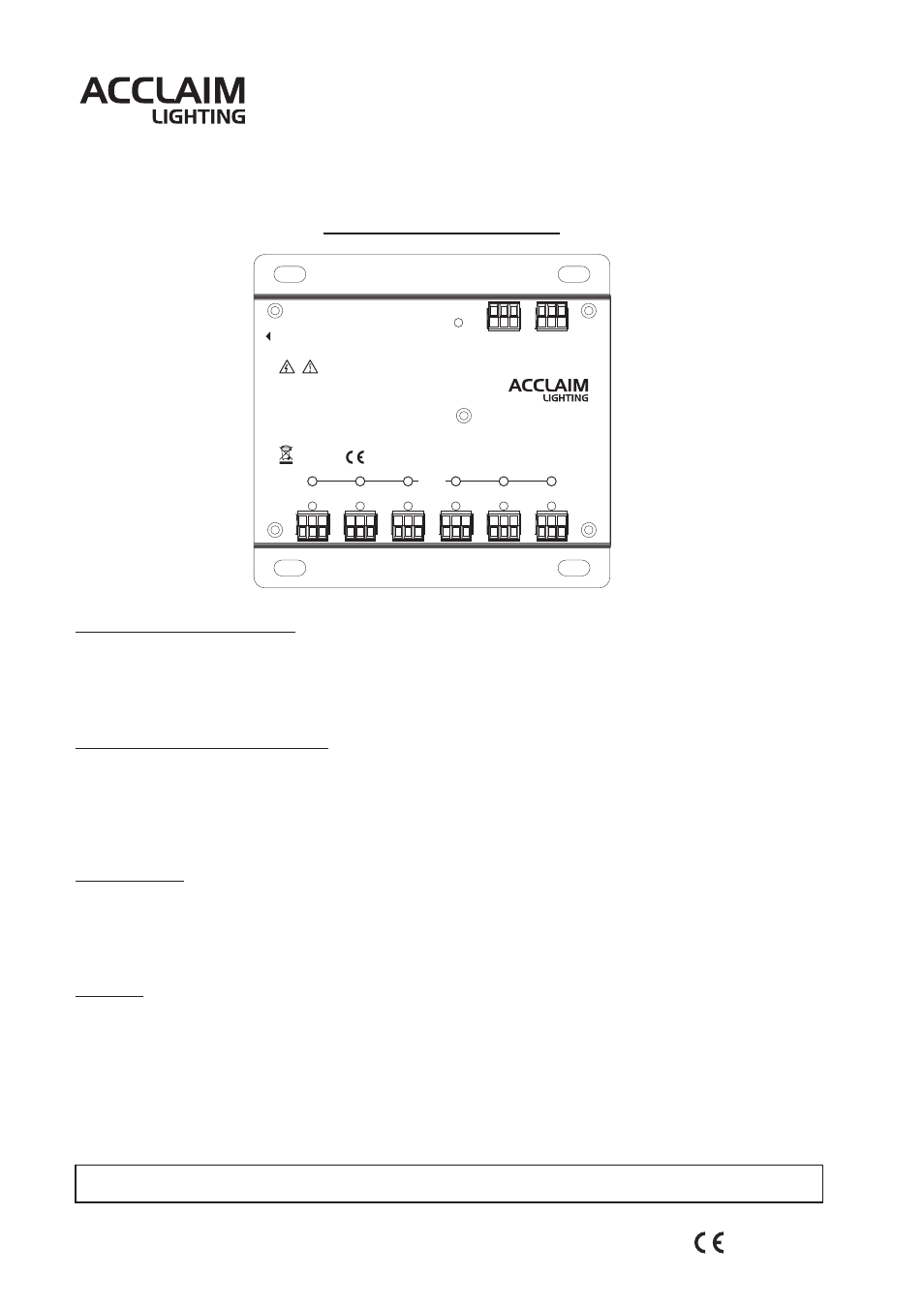

DD-6 WM PRO
6 Way Isolated DMX Splitter-Wall Mount
DMX THRU
DMX IN
RoHS
POWER
6
5
4
3
2
1
POWER IN: 100-240VAC,50/60Hz.
FUSE: F1A 250V 5x20mm
CAUTION
Risk Of Electric Shock
DO NOT OPEN
Ne Pas Ouvrir. Risque De Choc Electrique
WARNING : This Unit Must Be Grounded
DMX
OUTPUT
Made in P.R.C.
1=GND
2=Data-
3=Data+
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1
2
3
1=GND
2=Data-
3=Data+
3
2
1
3
2
1
Product Descriptions
Technical Specifications
Power Input ...........................................................................................................AC 100V~240V,50/60Hz, 1A
Connection .................................................................................................................. 3-pin terminal connector
Fuse ...................................................................................................................................... F1A 250V 5x20mm
Dimensions ................................................................................................................................134x126x50mm
Weight ........................................................................................................................................................... 1Kg
This is a wall mounted version, 6 way DMX splitter, features one DMX input/THRU and 6 DMX outputs. This
unit takes the incoming DMX signal and splits the signal into six separate output channels. Each output
channel and the input channel are completely electronically isolated from each other, all six output channels
have independent output drivers to boost the DMX signal.
User's Instruction
1. This apparatus must be earthed.
2. To prevent fire or shock hazard, do not expose this product under a high temperature or humid area.
3. This product is intended for indoor use only.
4. Replace the fuse with the same type.
Warning!!!
DD-6 WM Pro
6 Way Isolated DMX Splitter-Wall Mount
Set-up
Power Supply:
Before plugging your unit in, be sure the source voltage in your area matches the required voltage for the DD-
6 WM Pro power supply.
Data Cable (DMX Cable) Requirements:
The DD-6 WM Pro can be controlled via DMX-512 protocol and your DMX controller requires a standard 3-
pin terminal connector for data input and data output. Connect the DD-6 WM Pro and your fixtures together
using standard 3 pin DMX cables. The DD-6 WM Pro uses DMX-512 protocol to operate your fixtures.
DMX Signal Cable. 120 ohm impedance DMX signal cable MUST be used for signal connection.
