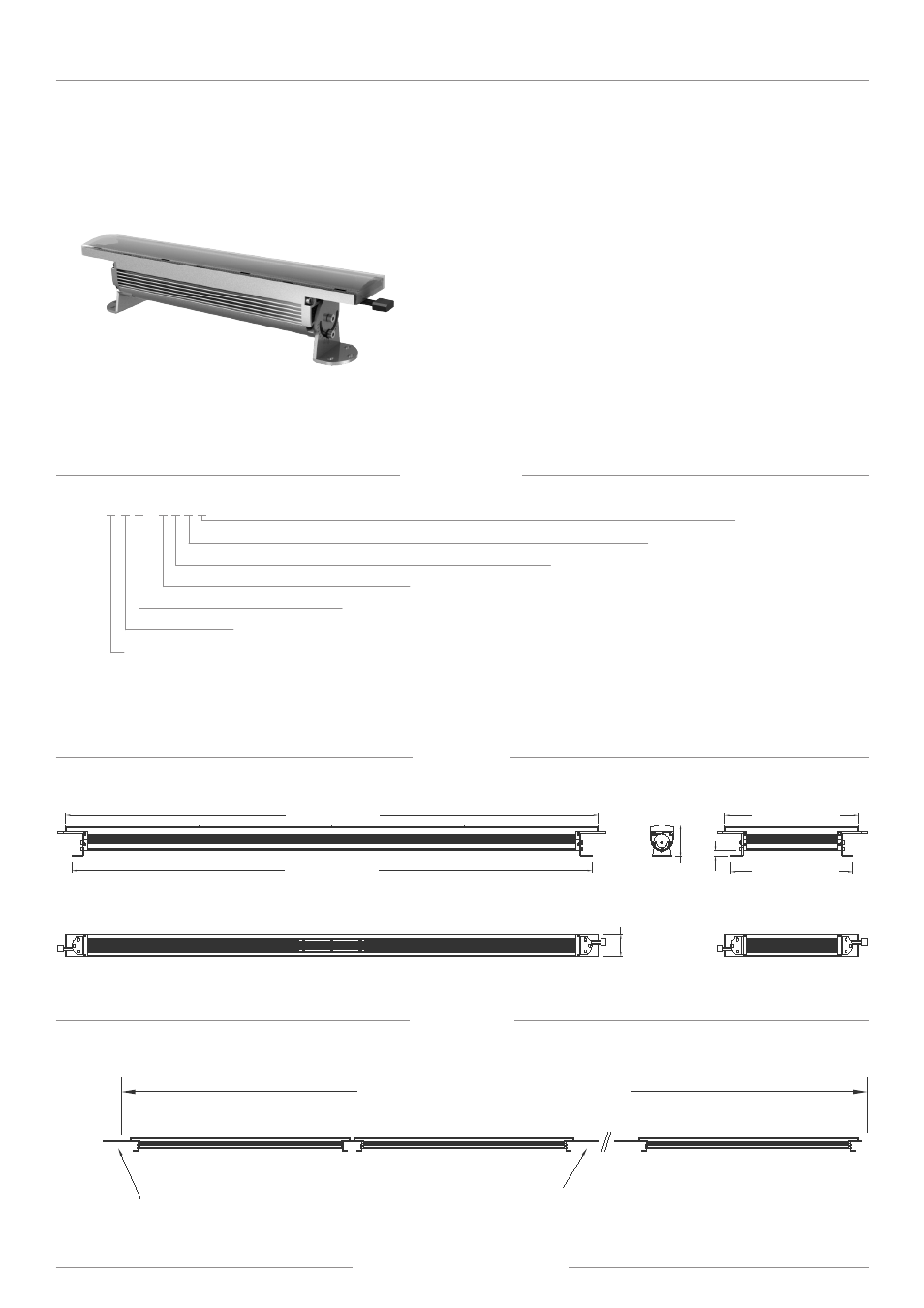

DynaCove Interior HO
System
Dimming
Max in Chain
Cabling System
Power requirements
LED Current
Beam
CRI
Light Source
Power Consumption
Total Lumens
Efficiency lm/W
Dimensions
Weight
Housing
Certifications
Protection Rating
Warranty
Source Life
Operating Temp.
Including
90-135VAC or 200-300VAC ELV
Dimmable
Trailing or leading edge
35’@120VAC / 70’ (21,3m) @ 240VAC
3 Conductor AC Cable
90-135VAC / 200-300VAC
500mA
120º
86 @ 4000K
10 / 40 pcs 3W CREE LEDs
23W / 92W
853 (1‘) @2700K / 4010 (4‘) @ 4000k
37 @ 2700k / 44 @ 4000k
305 x 52 x 74mm (1 ft x 2.04 x 3 in)
1219 x 52 x 74mm (4 ft x 2.04 x 3 in)
0,8 kg (1.8 lbs) / 3,2 kg (7.1 lbs)
Aluminum, Frosted Polycarbonate Lens
CE Certified, cETLus Pending
IP44, Dry Location
3 Years
50.000 hours at 70% lumen maintenance
-20 °C ~ +50 °C (-4 °F ~ +122 °F)
Integral, 3 Pin Male & Female Connector
Control:
1 = Not Applicable
- x x x - x x x x
Version:
U = 90-135 VAC
E = 200-300 VAC
Color:
A
B
D
E
F
G
N
P
Q
R = WW 2700k
= WW 3000k
= NW 3500k
= NW 4000k
= NW 5000k
= CW 6000k
= Red
= Green
= Blue
= Amber
Beam angle:
A = Open beam
LED Config:
A = 10 LEDs (1f) 305mm
D = 40 LEDs (4f) 1219mm
Cover:
2= Frosted
Housing:
1= Black Color
2= White Color
4 = Aluminum Color
DCA
Indoor Fixtures
3 pin link cable
for Dyna Serie Interior
optional
DynaCove Interior
240V AC
ELV Dimmable
max. 10m (35 feet) of total fixture length in a chain
3 pin First cable
for Dyna Serie Interior
3m (10 feet)
www.acclaimlighting.eu
Model number
Dimensions
Wiring diagram
** All rights reserved. Improvements changes to specifications, design, and all contents in this catalog may be made at any time without prior notice.
ACCLAIM
LIGHTING
1219mm [48.0 in] 305mm [12.0 in]
72mm [2.8 in] 14mm [0.6"]
52mm [2.0 in]
1192mm [46.9 in] 280mm [11.0 in]
