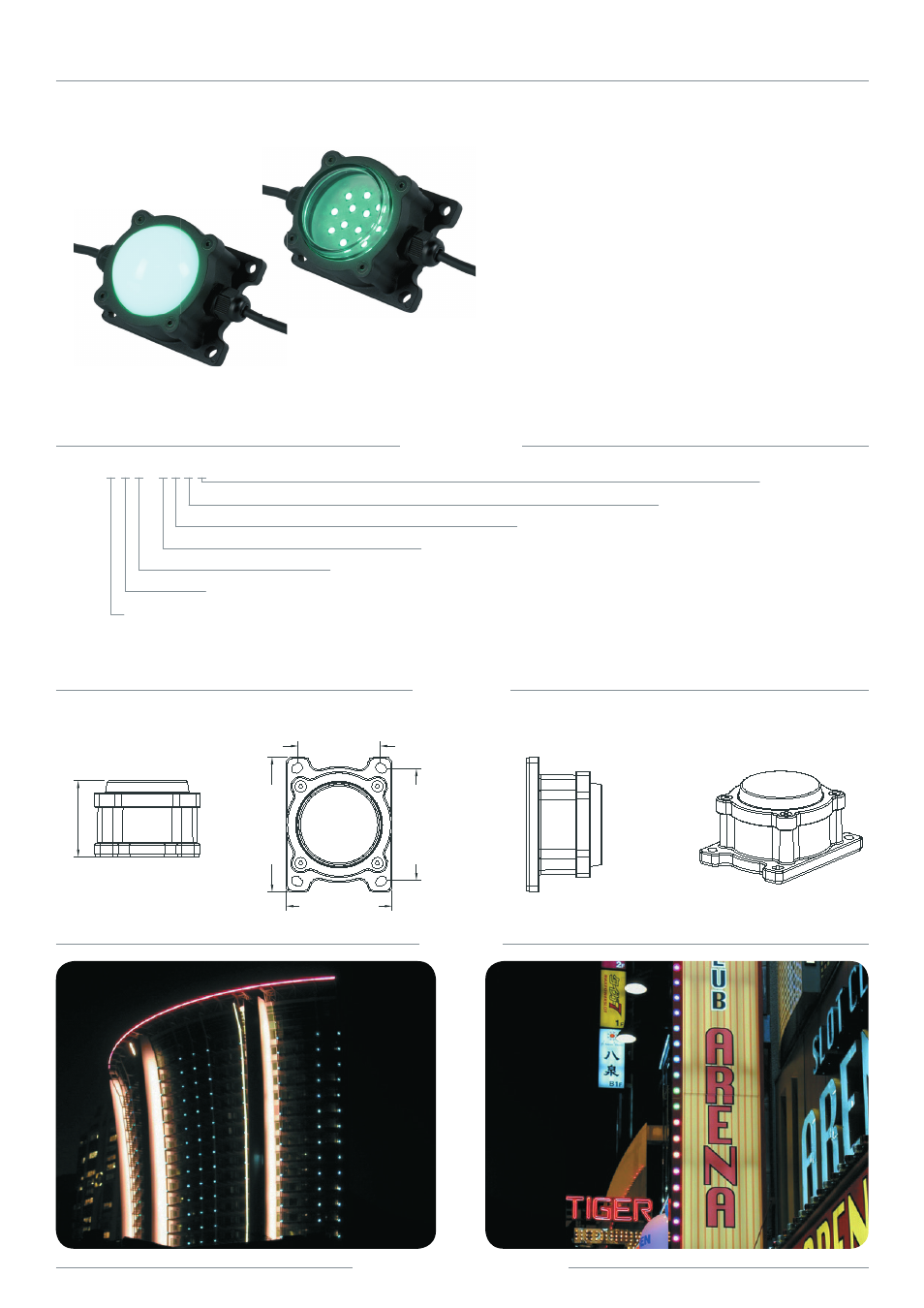

Acclaim Lighting AL Ball MK-ll DMX - Manual (Page 2)

AL Ball MK-ll DMX (IP65)
System
Max. in Chain
Cabling System
Control
DMX Channels
Addressing DMX
Power requirements
Current Consumption
Light Source
Power Consumption
Weight
Housing
Listing
Source Life
Operating Temp.
Storage Temp.
Including
24Vdc + DMX
20 pcs
5-Pin IP67 Waterproof Conn. (Power + DMX)
(Side cable entry)
Direct DMX-512, Manual, Stand Alone
3 DMX Channels
XB-R1 Setup Tool
24Vdc
105mA
12 x SMD 5050
2,5W
300 gr
Aluminum alloy construction with
Polycarbonate and UV Stabilizer
CE Certified
50.000 hours
-20 °C ~ +40 °C
-20 °C ~ +70 °C
Input cable with 5-pin WP male conn.
Output cable with 5-pin WP female conn.
Control:
2 = DMX
- x x x - x x x x
Version:
N = Normal
Color:
C
E
G
H
N
P
Q = WW 3200k
= NW 4000k
= CW 6000k
= RGB
= Red
= Green
= Blue
Beam angle:
A = Open beam
LED Config:
A = 12 LEDs
Cover:
1 = Clear
2 = Frosted
Housing:
1 = Black Color
4 = Aluminum Color
ABE
93mm [3.7 in]
73mm [2.9 in]
56mm [2.2 in]
77mm [3.0 in]
53mm [2.1 in]
Outdoor Fixtures
ACCLAIM
LIGHTING
www.acclaimlighting.eu
Model number
Dimensions
Projects
** All rights reserved. Improvements changes to specifications, design, and all contents in this catalog may be made at any time without prior notice.
