16. specification

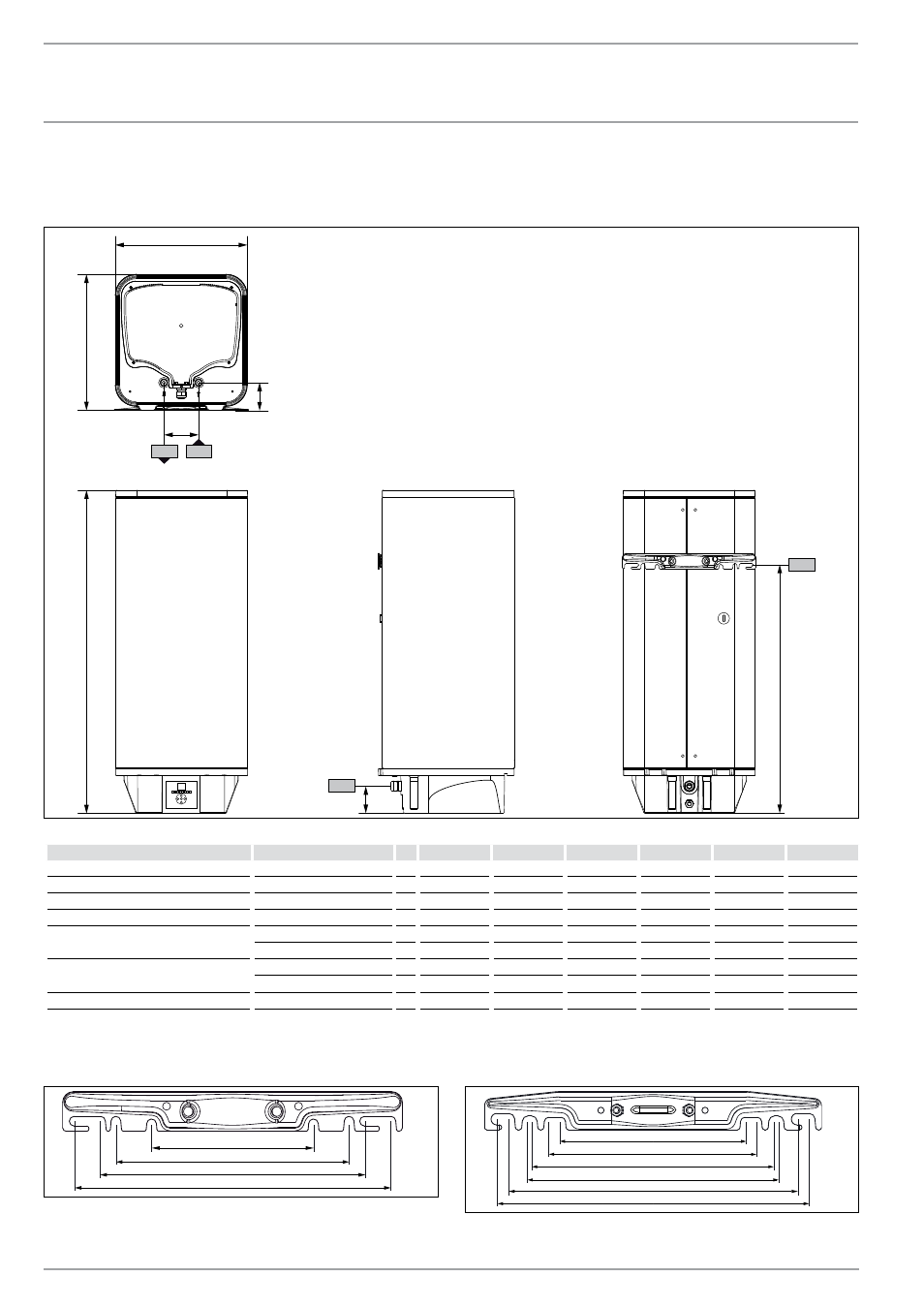

16.1 dimensions and connections
100
a20
a30
a10
c01 c06
b01
i13
D
00000
19
02
9
PSH 30 EL PSH 50 EL PSH 80 EL PSH 100 EL PSH 120 EL PSH 150 EL
a10 Appliance Height mm 676 931 893 1045 1200 1435
a20 Appliance Width mm 380 380 475 475 475 475
a30 Appliance Depth mm 380 380 475 475 475 475
b01 Entry electrical cables Height mm 78.5 78.5 78.5 78.5 78.5 78.5
c01 Cold water inlet Male thread G ½ A G ½ A G ½ A G ½ A G ½ A G ½ A
Rear clearance mm 80 80 85 85 85 85
c06 DHW outlet Male thread G ½ A G ½ A G ½ A G ½ A G ½ A G ½ A
Rear clearance mm 80 80 85 85 85 85
i13 Wall mounting bracket Height mm 445 705 592 735 870 1090
wall mounting bracket
30 - 50 l
184
265
300
360
80
�0
2�
07
�0
00
5
80 - 150 l
450
415
360
350
300
265
80
�0
2�
07
�0
00
6
