Milwaukee M1418C6 - Manual (Page 4)

6 7
M1418C6 (220V-240V) M1418C6 (110V)
...........14,4 V, 18 V ..............................14,4 V, 18 V
......................3,5 A .........................................3,5 A
.....................750 mA .....................................750 mA
.......................30 min ......................................30 min
.......................60 min ......................................60 min
....................1,92 kg .....................................1,92 kg
ENGLISH ENGLISH
WARNING! Read all safety warnings and all
instructions, including those given in the accompanying
brochure. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
SAFETY INSTRUCTIONS
Do not dispose of used battery packs in the household
refuse or by burning them. Milwaukee Distributors offer to
retrieve old batteries to protect our environment.
Only the following battery packs can be charged with this
charger:
voltage
battery rating No. of
(of storage battery) battery
cells
14.4 V C14 B ≤ 1.5 Ah 4
14.4 V C14 BX ≤ 3.0 Ah 2 x 4
14.4 V M14 B ≤ 1.5 Ah 4
14.4 V M14 BX ≤ 3.0 Ah 2 x 4
18 V C18 B ≤ 1.5 Ah 5
18 V C18 BX ≤ 3.0 Ah 2 x 5
18 V M18 B ≤ 1.5 Ah 5
18 V M18 BX ≤ 3.0 Ah 2 x 5
18 V M18 B2 ≤ 2.0 Ah 5
18 V M18 B4 ≤ 4.0 Ah 2 x 5
Do not try to charge non-rechargeable batteries with this
charger.
Do not store the battery pack together with metal objects
(short circuit risk).
No metal parts must be allowed to enter the battery section
of the charger (short circuit risk).
Never break open battery packs or chargers and store only
in dry rooms. Keep dry at all times.
The battery clamps of the charger are fed by the mains
supply. Do not touch the tool with conducting objects.
Never charge a damaged battery pack. Replace by a new
one.
Before use check machine, cable, and plug for any
damages or material fatigue. Repairs should only be carried
out by authorised Service Agents.
This appliance is not intended for use by persons (including
children) with limited physical, sensory or mental capabilities
or insufficient experience and/or knowledge unless they are
supervised by a person who is responsible for their safety or
have been instructed by them in the safe use of the tool.
Children should be supervised in order to ensure that they
do not play with the tool.
SPECIFIED CONDITIONS OF USE
This charger charges 14.4V and18V Milwaukee Li-Ion
battery packs.
Do not use this product in any other way as stated for
normal use.
MAINS CONNECTION
Connect only to single-phase AC current and only to the
system voltage indicated on the rating plate. It is also
possible to connect to sockets without an earthing contact
as the design conforms to safety class II.
Li-Ion BATTERIES
The rechargeable batteries are partially charged. The LED
on the battery indicates the state of charge.
If it is not used for long periods, the rechargeable battery will
switch to the non-operative state.
When fully discharged the rechargeable battery switches off
automatically (depth discharge not possible).
Under extreme circumstances, the internal temperatur of the
battery could become to high. If this happens, the battery
will shut down.
Place the battery on the charger to charge and reset it.
The state of charge can be read by pressing the button on
the rechargeable battery. The battery can be left in the
electric tool while the reading is taken but it must be
switched off at least one minute beforehand (otherwise the
display will be inaccurate). The number of LEDs illuminated
indicates the state of charge. A flashing LED indicates a
max. power reserve of 10%.
As a general principle, if the electric tool should fail to work
after inserting the rechargeable battery, then the battery
should be plugged into the charger. The displays on the
battery and charger will then provide information about the
condition of the battery.
In low temperatures work may continue at reduced output.
CHARACTERISTICS
After inserting the battery into the reception of the charger
the battery will automatically be charged (red control lamp is
illuminated continuously)
When a hot or cold battery pack is inserted into the charger
(flashing red lamp), charging will begin automatically once
the battery reaches the correct charging temperature
(0°C...60°C). The max. charging current is flowing when the
temperature of the Li-Ion-battery is between 0°C and 60°C.
The battery’s charging time is between 1 min and 30 min (at
1,5 Ah), depending on the state of discharge.
Once the battery is fully charged, the LED on the charger
changes from red to green.
It is not necessary to remove the battery after charging. The
battery can be stored permanently in the charger without the
danger of being overcharged.
If both LEDs flash alternately then the rechargeable battery
is either not fully pushed in or there is a fault with the battery
or charger. Take the charger and battery out of use
immediately for safety reasons and have them inspected by
a Milwaukee customer service centre.
TECHNICAL DATA Charger
Voltage range .........................................................................
Quick charge current ..............................................................
Maintaining charge current .....................................................
Battery charging time with 1.5 Ah ...........................................
Battery charging time with 3.0 Ah ...........................................
Weight according EPTA-Procedure 01/2003 ..........................

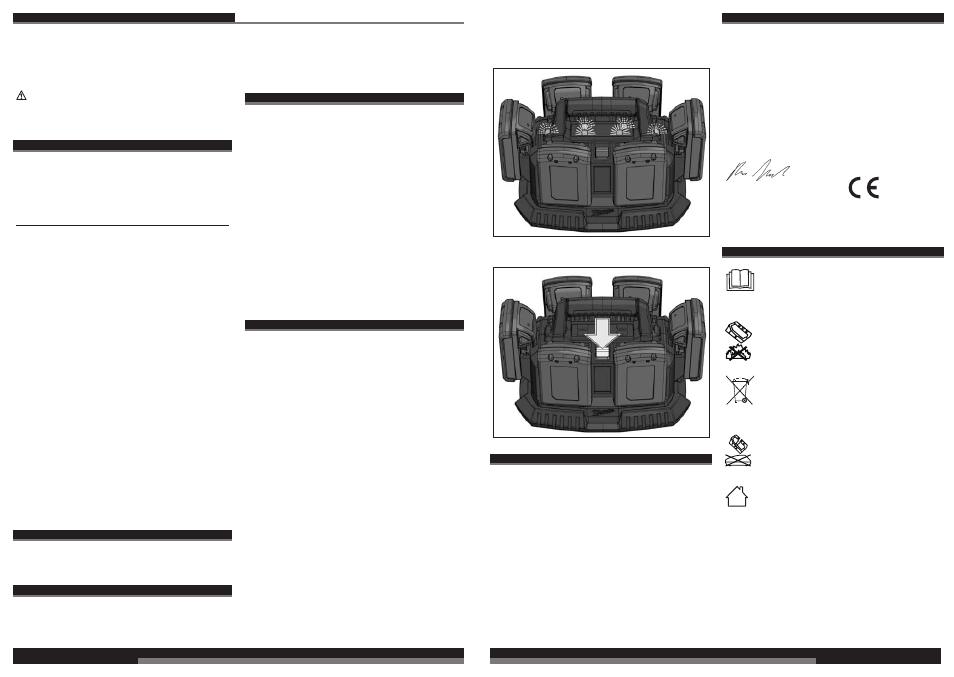

The charger can charge 6 batteries at the same time. The
batteries are loaded into the sequence in which they were
inserted.
Red continuous light: charging
Red flashing slowly: battery pack on hold
Green continuous light: battery pack charged.
To skip a pack and move to the next pack, press the skip
button
MAINTENANCE
If the supply cord of this appliance is damaged, it must only
be replaced by a repair shop appointed by the manufacturer,
because special purpose tools are required
Use only Milwaukee accessories and Milwaukee spare parts.
Should components need to be replaced which have not
been described, please contact one of our Milwaukee service
agents (see our list of guarantee/service addresses).
If needed, an exploded view of the tool can be ordered.
Please state the Article No. as well as the machine type
printed on the label and order the drawing at your local
service agents or directly at: Techtronic Industries GmbH,
Max-Eyth-Straße 10, D-71364 Winnenden, Germany.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that the product
described under “Technical Data” fulfills all the relevant
regulations and the directives 2011/65/EU (RoHs),
2006/95/EC, 2004/108/EC and the following harmonized
standards have been used:
EN55014-1:2006 + A1:2009 + A2:2011
EN55014-2:1997 + A1:2001 + A2:2008
EN61000-3-2:2006 + A1:2009 + A2:2009
EN61000-3-3:2008
EN60335-1:2002 + A1:2004 + A11:2004 + A12:2006 +
A2:2006 + A13:2008 + A14:2010 + A15:2011
EN60335-2-29:2004 + A2:2010
EN62233:2008
Winnenden, 2012-10-10
Rainer Kumpf
Director Product Developement
Authorized to compile the technical file.
Techtronic Industries GmbH
Max-Eyth-Straße 10
D-71364 Winnenden
SYMBOLS
Please read the instructions carefully before
starting.
Do not burn used battery packs.
Do not dispose of electric tools together with
household waste material! In observance of
European Directive 2002/96/EC on waste electrical
and electronic equipment and its implementation in
accordance with national law, electric tools that
have reached the end of their life must be collected
separately and returned to an environmentally
compatible recycling facility.
Never charge a damaged battery pack.
Replace with a new one.
This tool is only suitable for indoor use. Never
expose tool to rain.
