ASSEMBLY
English – 65

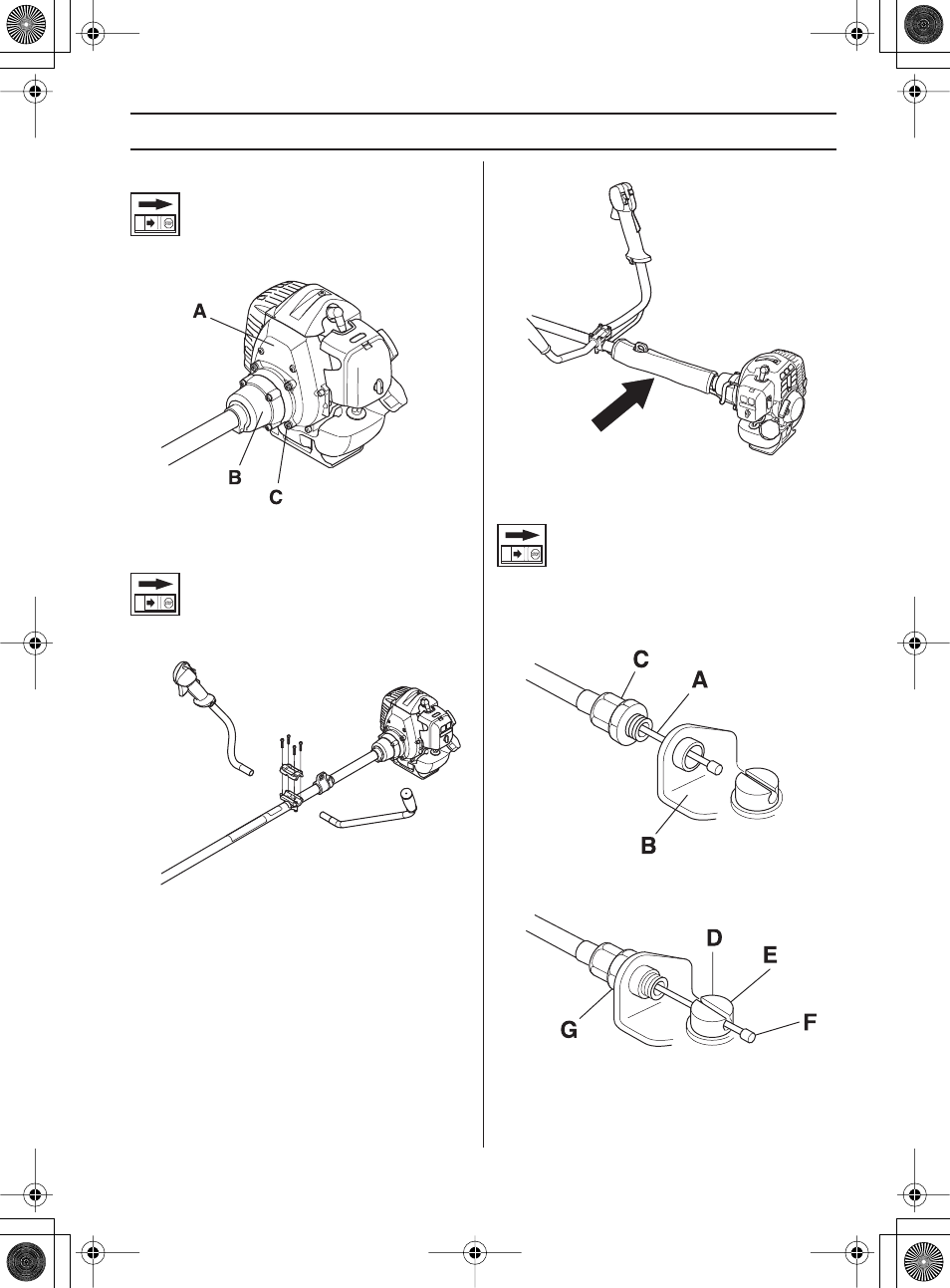

Fitting the main body
Connect the engine (A) to the tube (B) with four screws
(C).
Assembling the handlebar and
throttle
• Fit the handlebar in the handlebar clamp on the shaft
using four screws.
• Fit the protective sleeve as shown in the diagram.
Connecting throttle cable and
stop switch wires
1 Remove the air filter cover.
2 Insert the throttle cable (A) through the carburettor
bracket (B), then screw the cable adjuster sleeve (C)
into the carburettor bracket fully.
3 Position the slotted fitting (D) on the carburettor so the
recessed hole (E) for the cable lug (F) is away from the
cable adjuster sleeve.
4 Rotate the carburettor throttle cam and slip the throttle
cable through the slot in the slotted fitting, making
sure the cable lug drops into the recessed hole.
5 Operate the throttle trigger a few times to make sure
that it works correctly.
