Edimax Technology MA-2000 - Manual (Page 13)

13
Back
Item
No.
Name Description

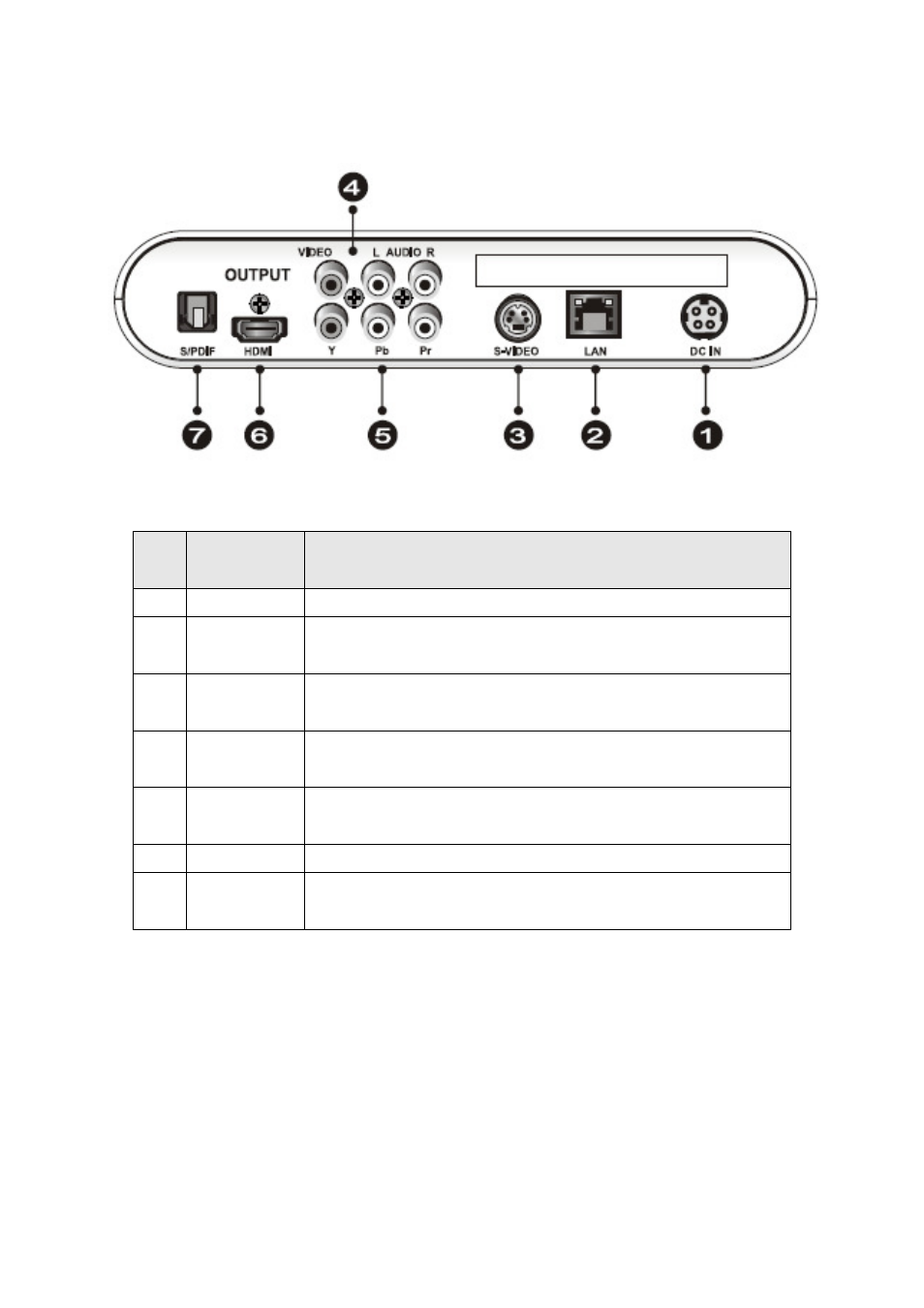

1 DC IN Connects to 12V 2A power adapter
2 LAN
10/100Mbps fast Ethernet port (Connects to your local
area network)
3 S-VIDEO
Connects to S-VIDEO video/audio cable to your display’s
S-VIDEO port.
4
VIDEO
(Audio L/R)
Connects to VIDEO (Yellow) / Audio L (White) R (RED)
cables to your display’s analog video and audio ports
5 Y/Pb/Pr
Connects composite cables to your display’s analog
video and audio ports
6 HDMI OUT Connects HDMI cable to your display’s HDMI port
7 S/PDIF
Connects optical digital audio (S/PDIF) cable to your
digital sound system
Note: After connecting the cables, the Video Output item of the Setup menu
must be set to corresponding CVBS/S-VIDEO/COMPONENT/HDMI position.
