User Manual

Publication date: July, 2006
Revision A2

3-10. Trap Events

Function name:

Trap Events

Function description:

The Trap Events Configuration function is used to enable the Advanced Smart
Ethernet Switch to send out the trap information while pre-defined trap events
occurred.

Switch management offers 5 different trap events and 2 host to users .The
message will be sent while users tick (

;) the trap event individually on the

web page shown as below. Except Warm Boot and Cold Boot, other trap
events offer the counter function to help the user see the times that the trap
event had happened.

Parameter description:

These trap functions are as they describe. The traps the switch supports are
listed below.

Boot: Warm Boot, Cold Boot

Link: Link Up, Link Down

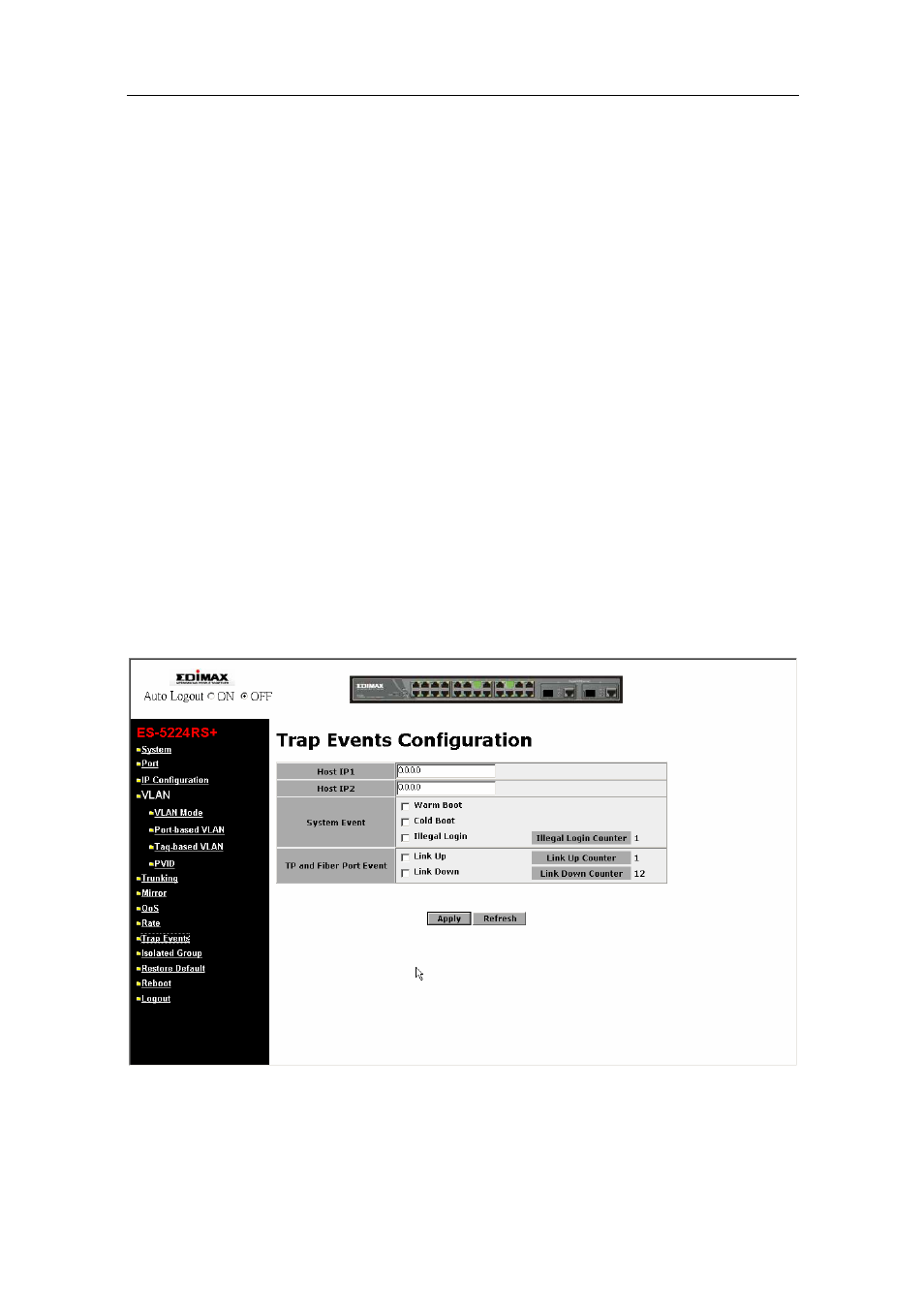

Fig. 3-22
