User Manual

Publication date: July, 2006

Revision A2

41

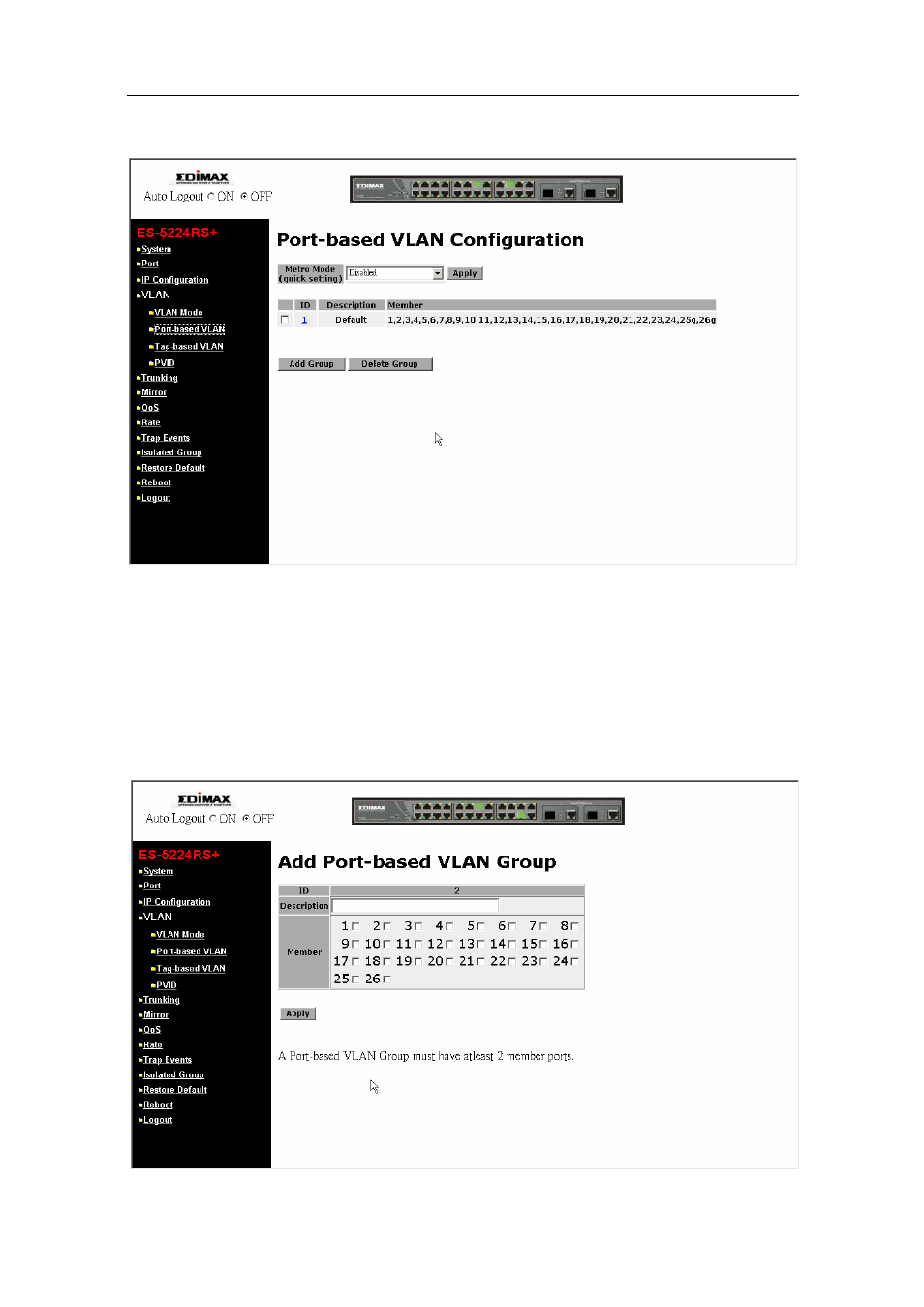

Fig. 3-10

Add Group for Port-based VLAN:

Create a new port-based VLAN. Fill in the name in the field of
Description and choose the port by ticking the check box beside the port
No. in Member field. Then, press the button to have the setting
taken effect.

Fig. 3-11
