3-6. Trunking
Trunking configuration is used to configure the settings of Link Aggregation.
You can bundle more than one port with the same speed, full duplex and the same
MAC to be a single logical port, thus the logical port aggregates the bandwidth of
these ports. This means you can apply your current Ethernet equipments to build
the bandwidth aggregation. For example, if there are three Fast Ethernet ports
aggregated in a logical port, then this logical port has bandwidth three times as high
as a single Fast Ethernet port has.
Function name:
Trunking Setting
Function description:
Display the current setup of Aggregation Trunking. With this function, user is
allowed to add a new trunking group or modify the members of an existed
trunking group.
Note:
Check the following to avoid
errors
in
configuration:
When configur
ing
the link aggregation function,
you
should check
that whether
the
aggregated ports are
in
full-duplex mode
as well as their
speed
is the
same or not
. The aggregated ports are in the same VLAN group.

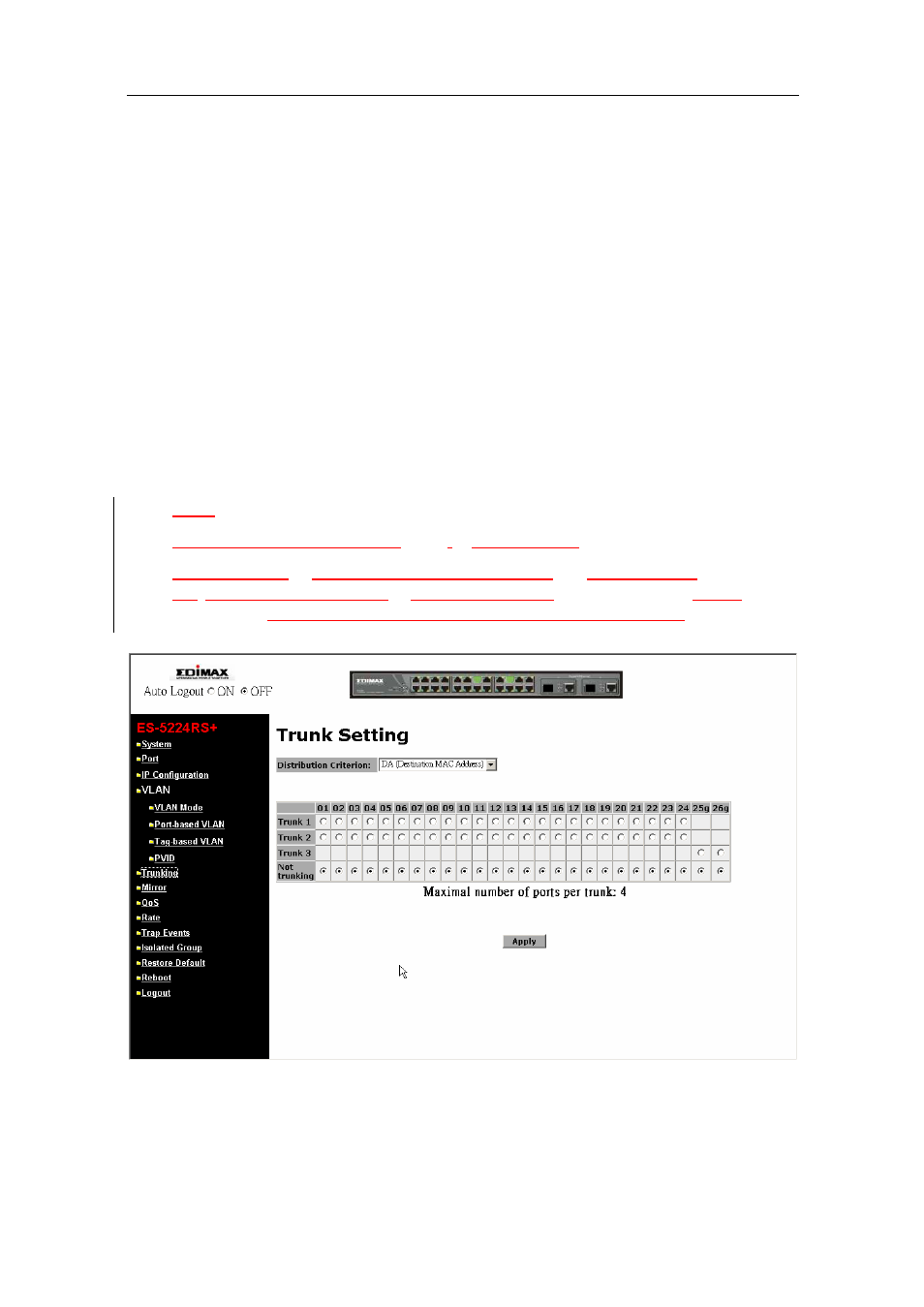

Fig. 3-17
