5
2. Hardware Installation

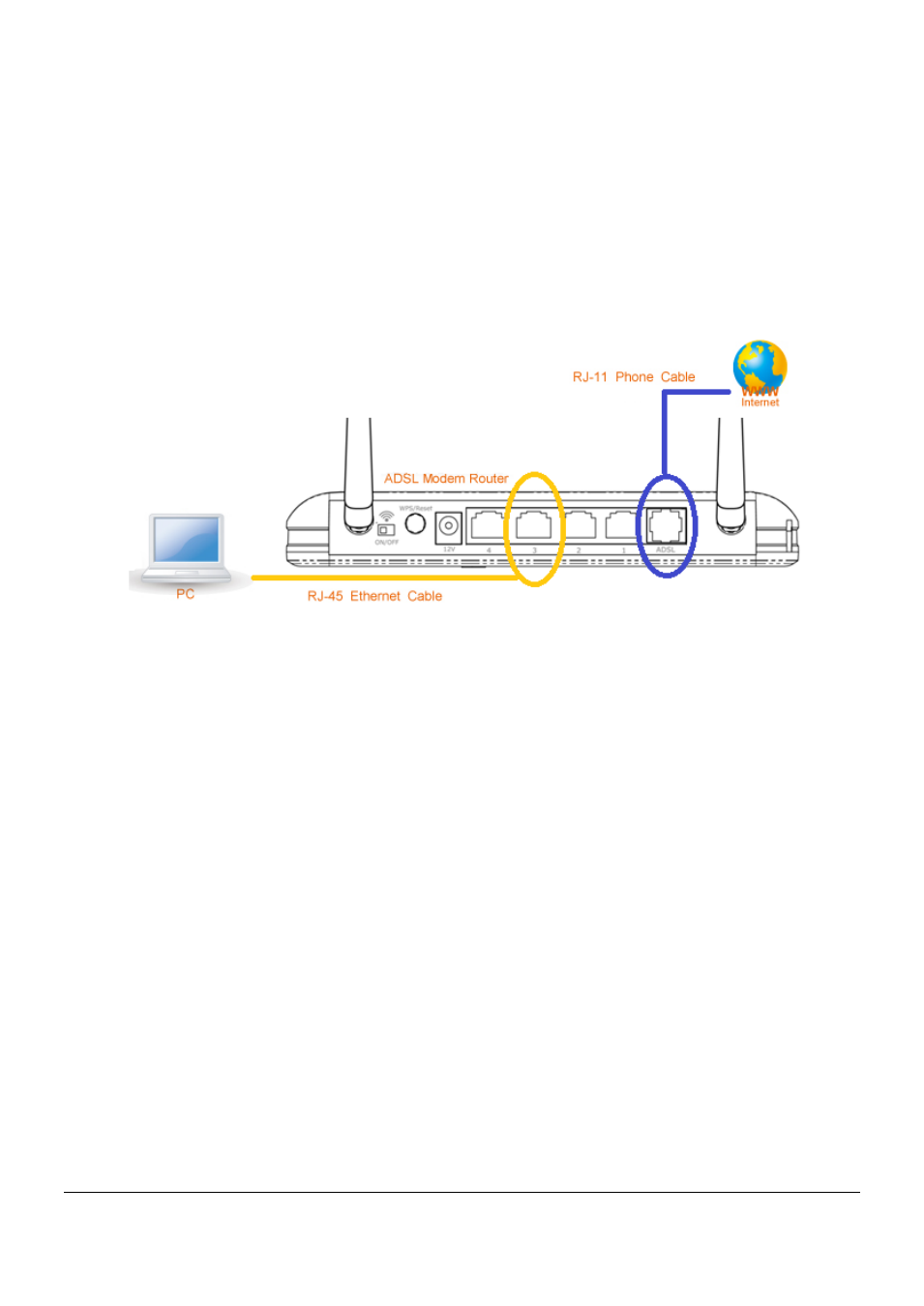

Step 1. Connect the ADSL Line
Connect the router to your ADSL cable through the supplied RJ-11 telephone line.
Step 2. Connect the router to your LAN network
Connect the router to your PC, hub or switch by attached the Ethernet cable to the LAN port of the
router.
Step 3. Connect the Power Adapter to the Router
Connect the power adapter to the power jack on the rear panel of router.
Step4: Check the ADSL LED on the Router
The ADSL LED will be ON if the router is connected to the ADSL cable and receives the ADSL signals
successfully. If the LED is blinking, please contact with your ISP (Internet Service Provider) to check the
problem.
Note: You must use the power adapter shipped along with the router, do NOT use any other power
adapter from other sources.
