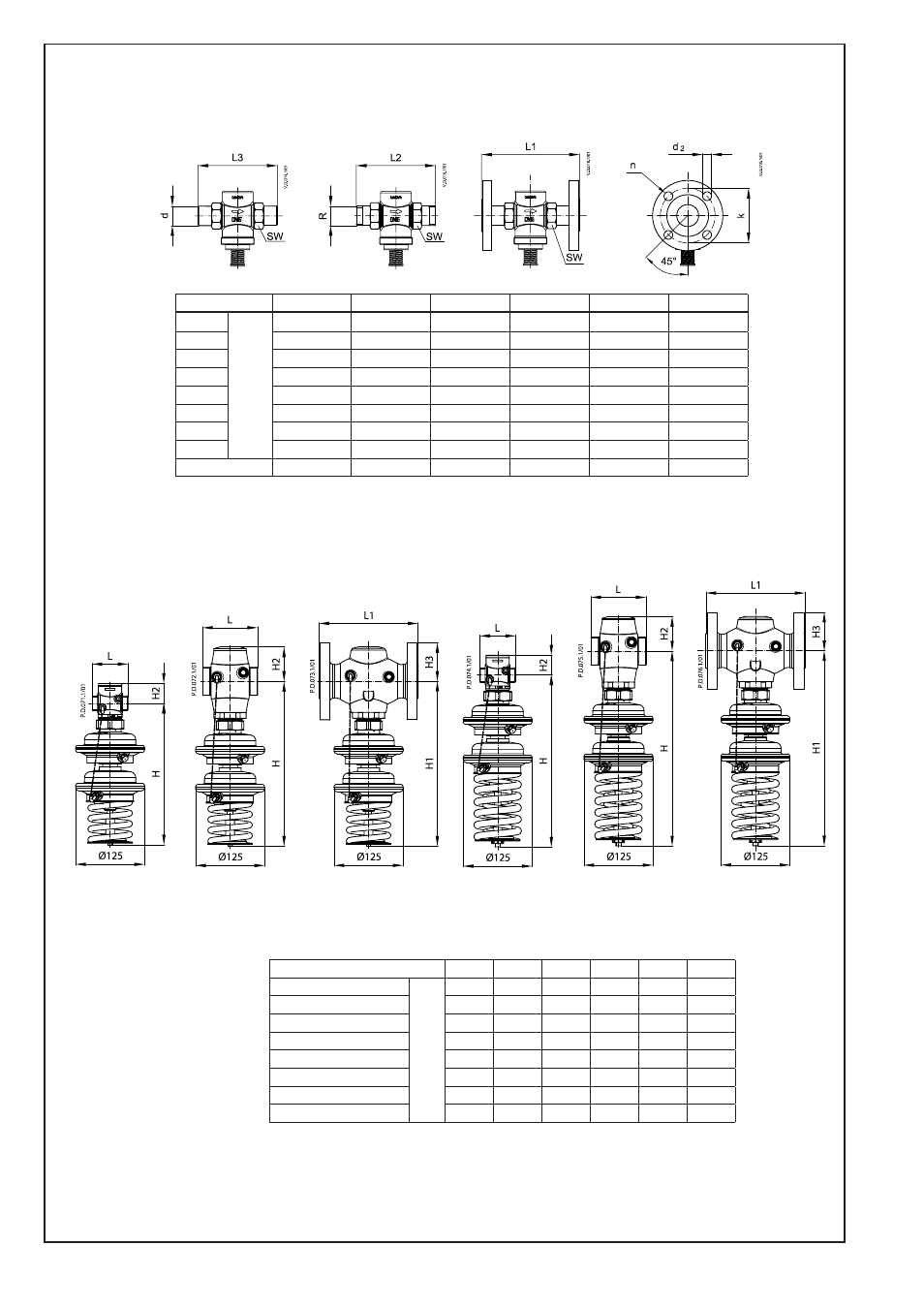

DN 15 20 25 32 40 50
SW
mm
32 (G ¾A) 41 (G 1A) 50 (G 1¼A) 63 (G 1¾A) 70 (G 2A) 82 (G 2½A)
d 21 26 33 42 47 60
R 1) 1/2 3/4 1 11/4 - -
L1 2) 130 150 160 - - -
L2 131 144 160 177 - -
L3 139 154 159 184 204 234
k 65 75 85 100 110 125
d2 14 14 14 18 18 18
n 4 4 4 4 4 4
73695090 DH-SMT/SI VI.DC.E2.8M © Danfoss04/2011 2
❺
DN 15 - 25 DN 32 - 50 DN 32 - 50 DN 15 - 25 DN 32 - 50 DN 32 - 50
Δp = 1 - 5 Δp = 1 - 5 Δp = 1 - 5 Δp = 2 - 8 Δp = 2 - 8 Δp = 2 - 8
Δp = 3 - 12 Δp = 3 - 12 Δp = 3 - 12
DN 15 20 25 32 40 50
L
mm
65 70 75 100 110 130
L1 - - - 180 200 230
H Δp = 1 - 5 257 257 257 299 299 299
H Δp = 2 - 8 / 3 - 12 313 313 313 355 355 355
H1 Δp = 1 - 5 - - - 299 299 299
H1 Δp = 2 - 8 / 3 - 12 - - - 355 355 355
H2 34 34 37 62 62 62
H3 - - - 70 75 82
