75
You can confi gure and control the projector via the network using RS-232C
commands.
Communication Port
The following two ports are assigned for the command control.
TCP #23
TCP #9715
Command Control Settings ( 25)
Confi gure the following items from a web browser when command control is used.
Example: If the IP address of the projector is set to 192.168.1.10:
• Command control is not available via communication port (TCP
#9716) that is used for the e-Shot transmission function.
NOTE
1) Enter [http://192.168.1.10/] into the address bar of the web browser.
2) Enter the Administrator ID and Password and click [Logon] .

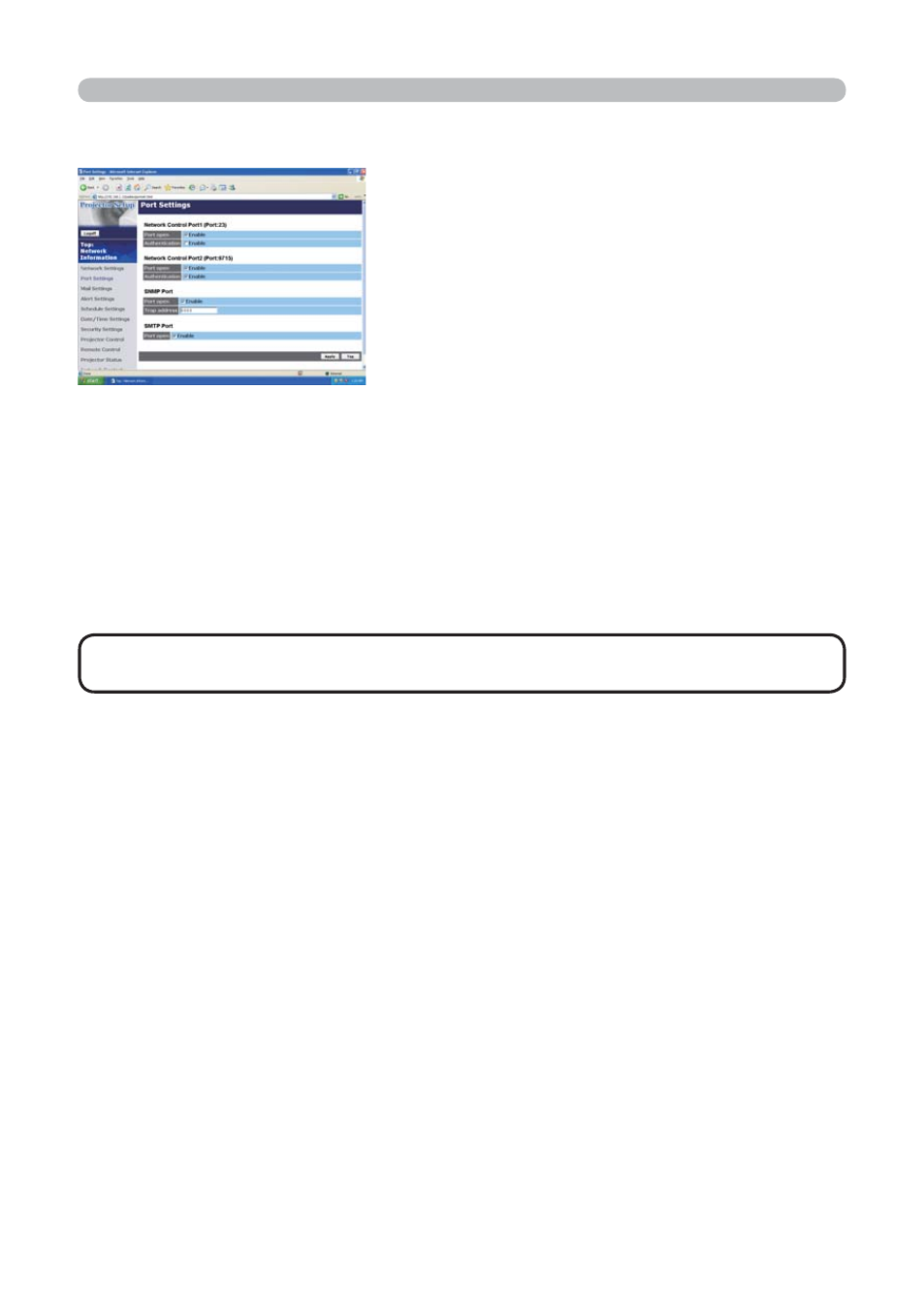

3) Click [Port settings] on the main menu.
4) Click the [Enable] check box to open [Network Control Port (Port: 23)] to use
TCP #23. Click the [Enable] check box for the [Authentication] setting when
authentication is required, otherwise clear the check box.
5) Click the [Enable] check box to open [Network Control Port (Port: 9715)] to
use TCP #9715. Click the [Enable] check box for the [Authentication] setting
when authentication is required, otherwise clear the check box.
6) Click the [Apply] button to save the settings.
4. Utilize projector – Advanced -
4.8 Command Control via the Network
