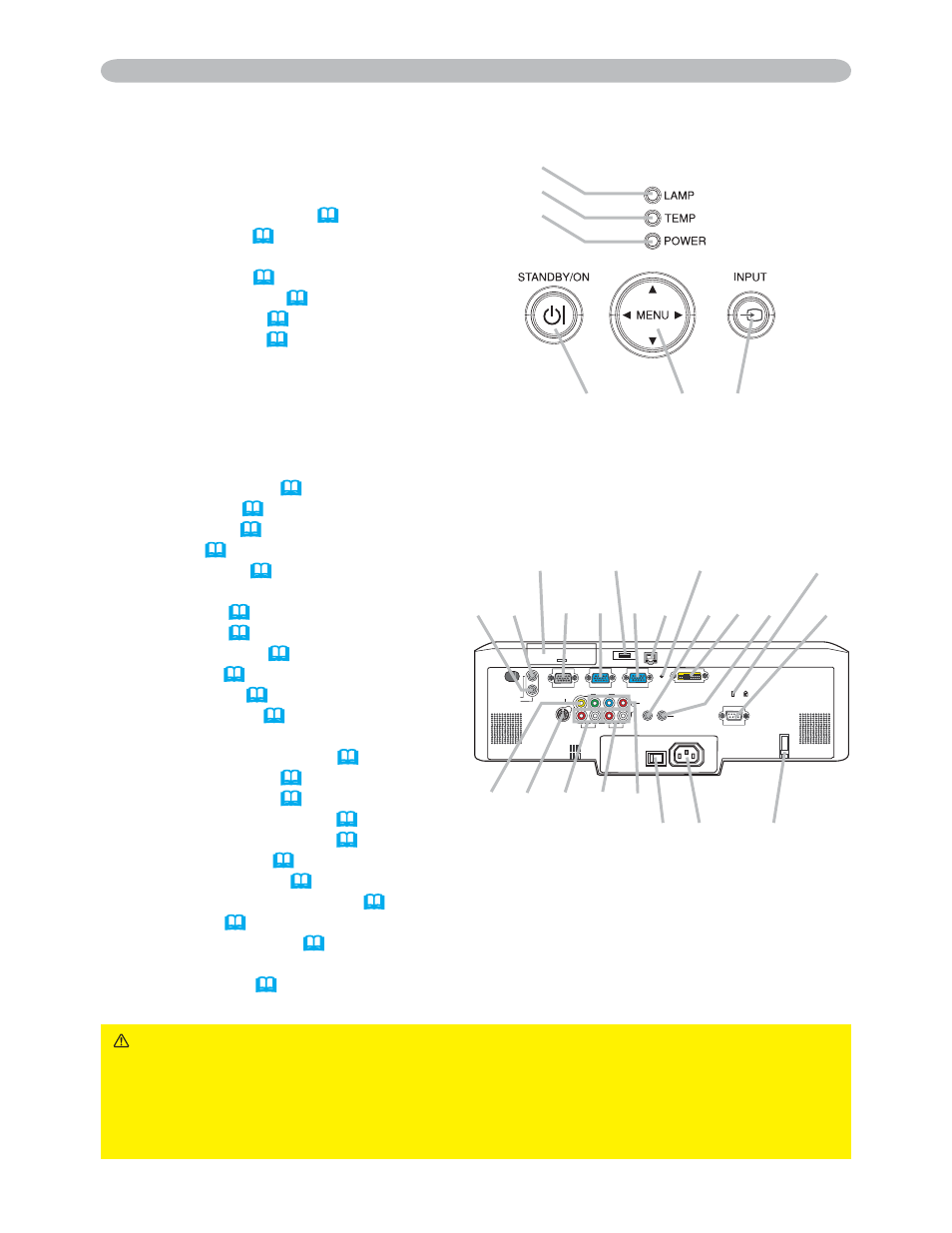

Part names
Control panel
(1) STANDBY/ON button (
17)
(2) MENU button (
24)
It consists of four cursor buttons.
(3) INPUT button (
18)
(4) POWER indicator (
17)
(5) TEMP indicator (
66)
(6) LAMP indicator (
66)
Rear panel
(1) Shutdown switch (
68)
(2) Security slot (
9)
(3) Security bar (
9)
(4) AC inlet (
13)
(5) Power switch (
17)
(6) RGB1 port (
10)
(7) RGB2 port (
10)
(8) CONTROL port (
10)
(9) M1-D port (
10)
(10) VIDEO port (
10)
(11) S-VIDEO port (
10)
(12) COMPONENT
(Y, C
B
/P
B
, C
R
/P
R
) ports (
10)
(13) AUDIO IN1 port (
10)
(14) AUDIO IN2 port (
10)
(15) AUDIO IN3 (R/L) ports (
10)
(16) AUDIO IN4 (R/L) ports (
10)
(17) RGB OUT port (
10)
(18) AUDIO OUT port (
10)
(19) REMOTE CONTROL port (
10)
(20) LAN port (
10)
(21) SD card slot cover (
12)
The SD card slot is inside.
(22) AUX I/O port (
12)
CAUTION Ź'RQRWXVHWKHVHFXULW\EDUDQGWKHVHFXULW\VORWWRSUHYHQWWKH
projector from falling down, since it is not designed for it.
Ź8VHWKHVKXWGRZQVZLWFKRQO\ZKHQWKHSURMHFWRULVQRWWXUQHGRIIE\QRUPDO
procedure, since pushing this switch stops operation of the projector without
cooling it down.
(6)
(5)
(4)
(1) (2) (3)
!
(14) (13) (17) (6) (7) (20) (18) (9) (19) (8)
(2) (1)
(10) (11) (15) (16) (12)
(5) (4) (3)
(22) (21)
